Transmission Shift Position Indicator Lamp: Service and Repair

TRANS FLOOR SHIFT CONTROL INDICATOR LAMP REPLACEMENT

REMOVAL PROCEDURE




1. Remove the front floor console.

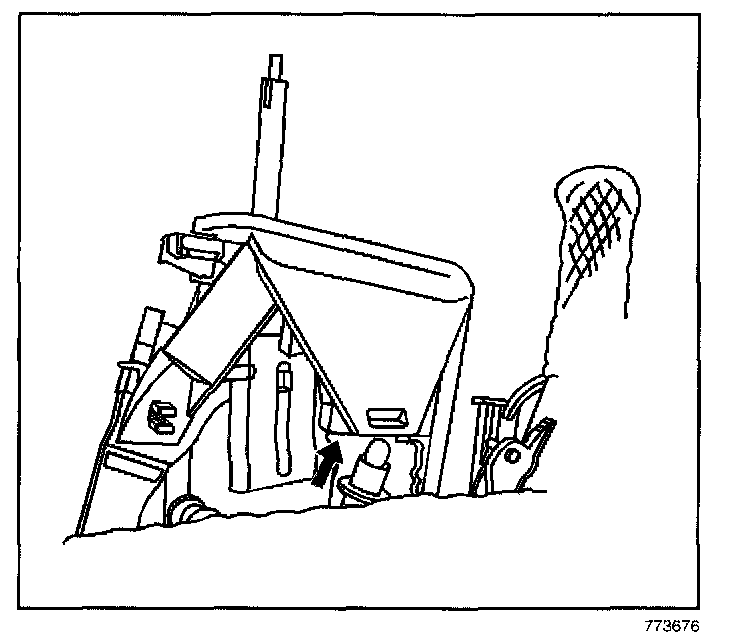

2. Disconnect the shift control bulb/socket from the shift control.
3. Remove the bulb from the socket.

INSTALLATION PROCEDURE




1. Install the bulb to the socket.
2. Connect the shift control bulb/socket to the shift control.
3. Install the front floor console.
