Sunroof / Moonroof: Adjustments
SUNROOF WINDOW HEIGHT AND OPENING FIT ADJUSTMENT1. Cycle the sunroof window from the full open to closed position.

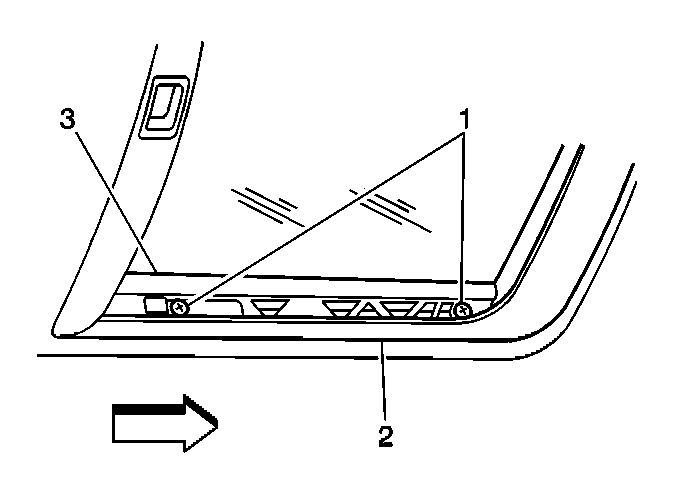

2. Loosen the 4 adjusting screws (1).
3. There are 2 adjusting screws on each side of the sunroof window
4. Center the window front to rear in the opening.

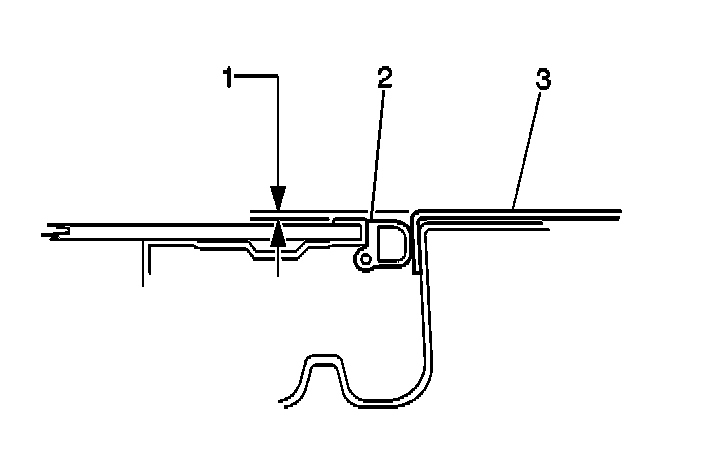

5. Adjust the front of the sunroof window (2) from flush to 1 mm (0.04 in) (1) below the top surface of the roof panel (3).
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the front sunroof window adjustment screws to 5 N.m (44 lb in).

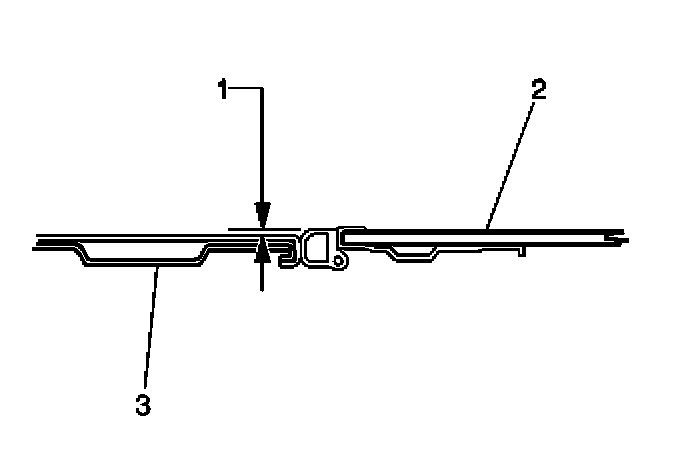

6. Adjust the rear of the sunroof window (2) from flush to 1 mm (0.04 in) (1) above the top surface of the roof panel (3).
Tighten
Tighten the rear sunroof window adjustment screws to 5 N.m (44 lb in).
7. Cycle the sunroof window through all of the positions.
8. Verify the sunroof window fore/aft adjustments.
9. Verify the front and rear height adjustment.
10. Readjust the sunroof window, if necessary.
