Component Tests and General Diagnostics

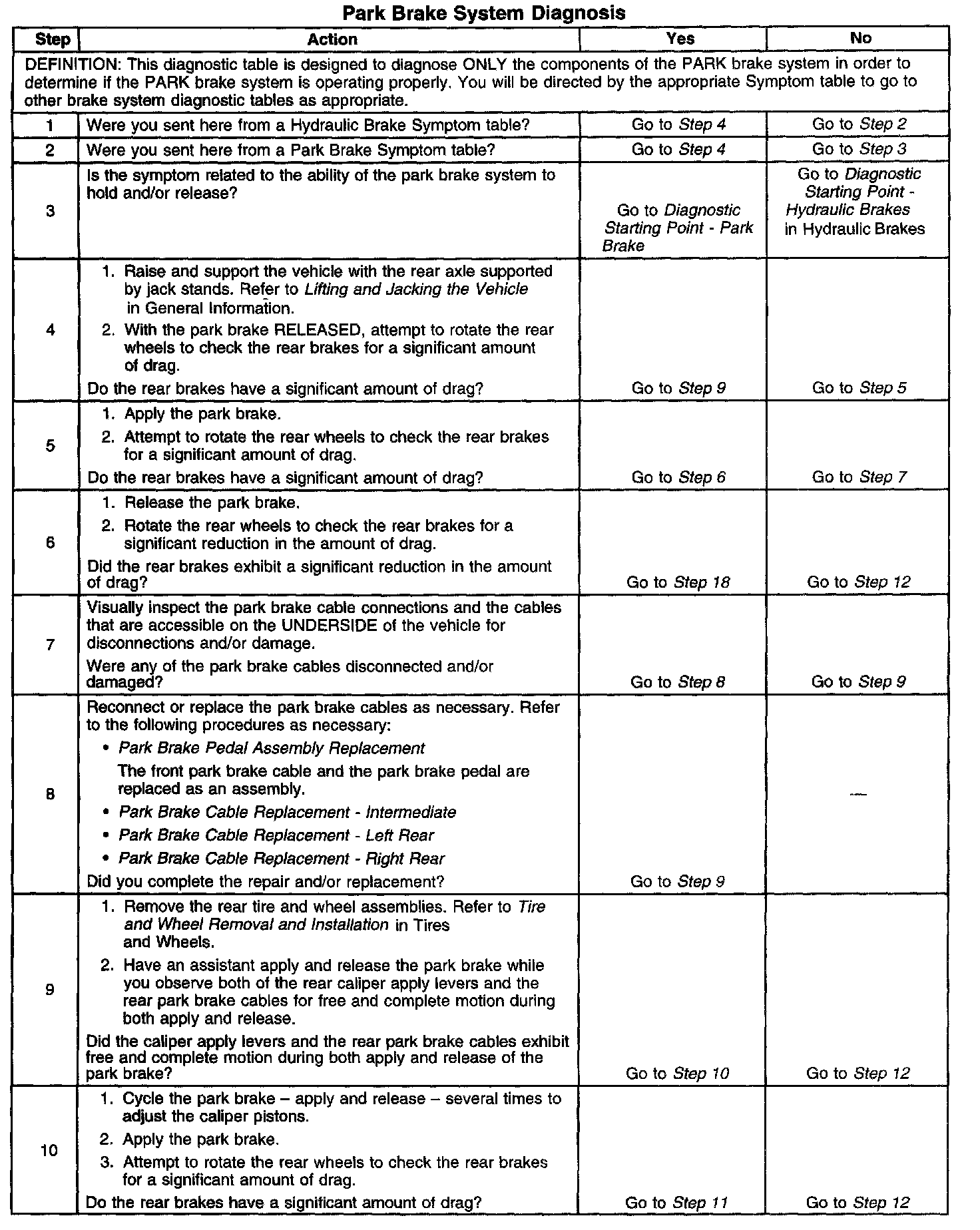

Park Brake System Diagnosis

Steps 1-10

Park Brake System Diagnosis:





Steps 11-17

Park Brake System Diagnosis (cont'd):

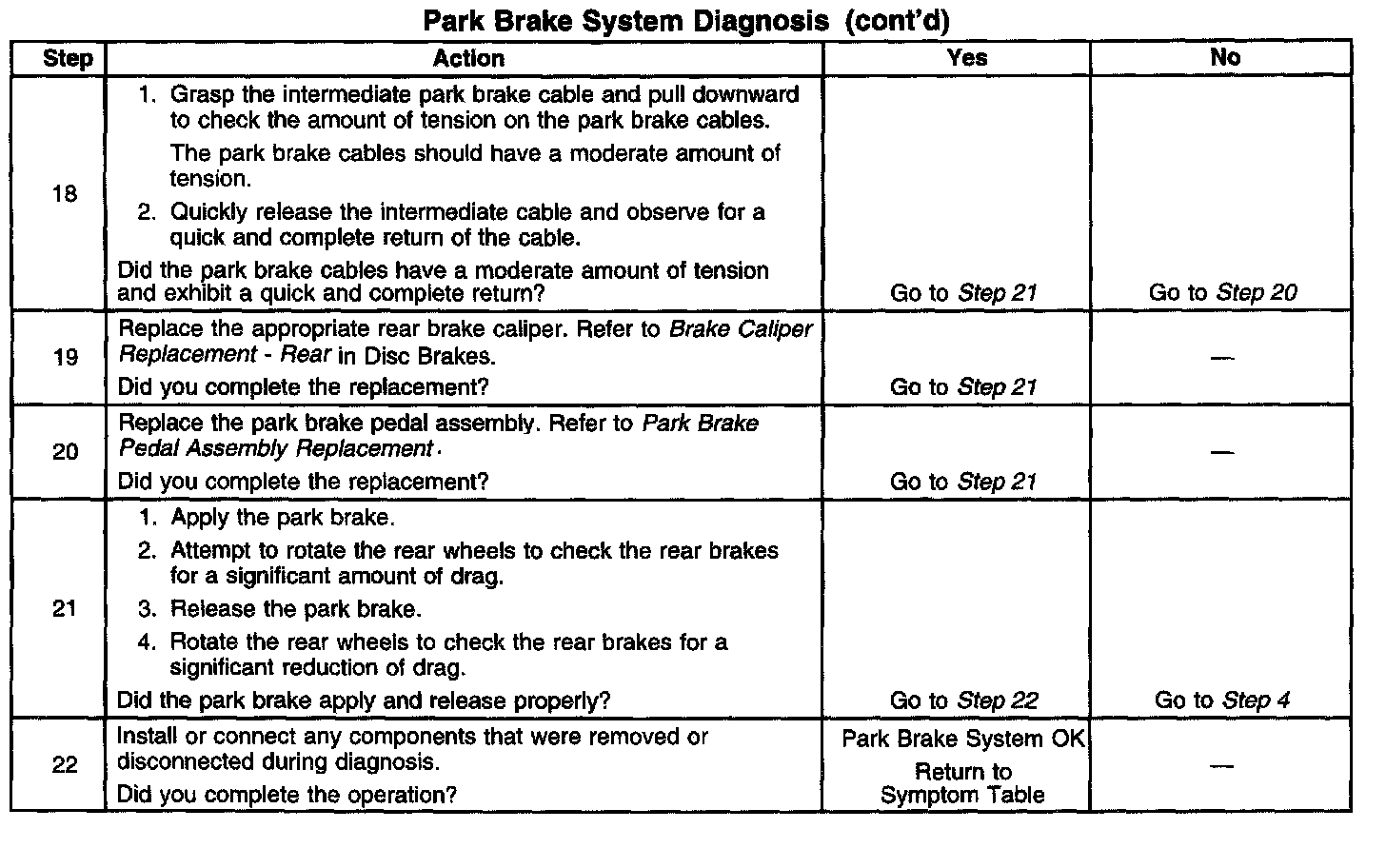

Steps 18-22

Park Brake System Diagnosis (cont'd):
