Auxiliary Power Outlet: Service and Repair

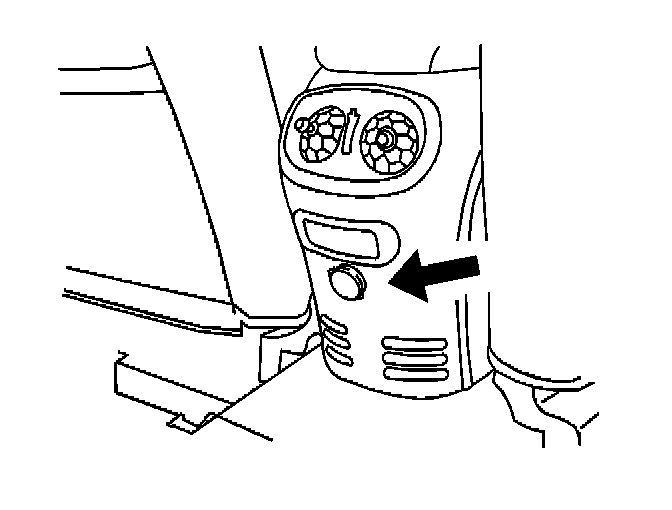

ACCESSORY POWER RECEPTACLE REPLACEMENT - FLOOR CONSOLE

TOOLS REQUIRED
J 42059Cigarette Lighter Socket Remover

REMOVAL PROCEDURE




1. Use tool (2) J 42059 to engage the internal lock tabs and release the socket (1) out of the trim panel.
2. Disconnect the electrical connector.
3. Remove the power accessory port (1) from the trim panel.

INSTALLATION PROCEDURE
1. Connect the electrical connector.




2. Insert the socket and engage the lock tabs.
