System Specifications

Specifications

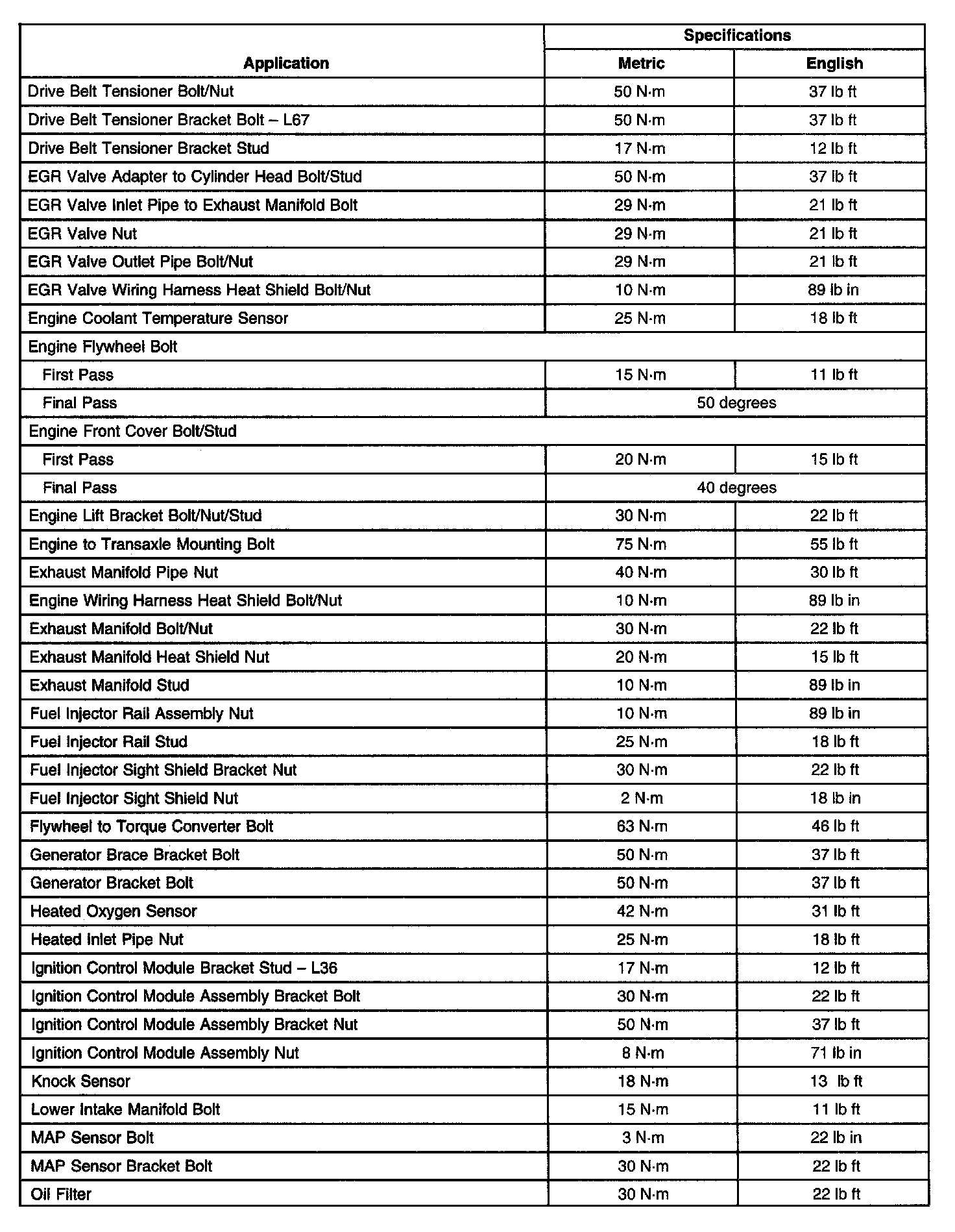

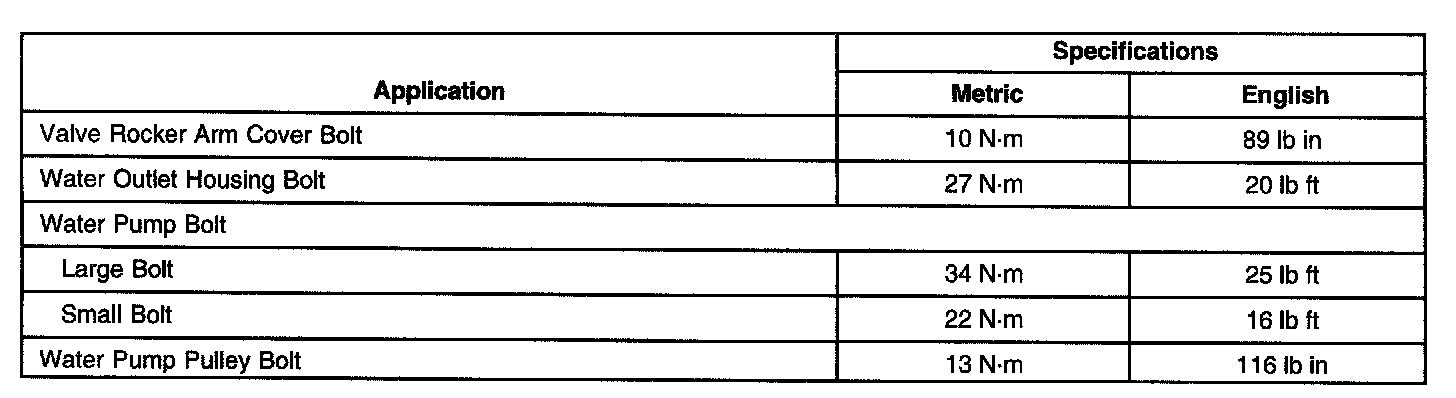

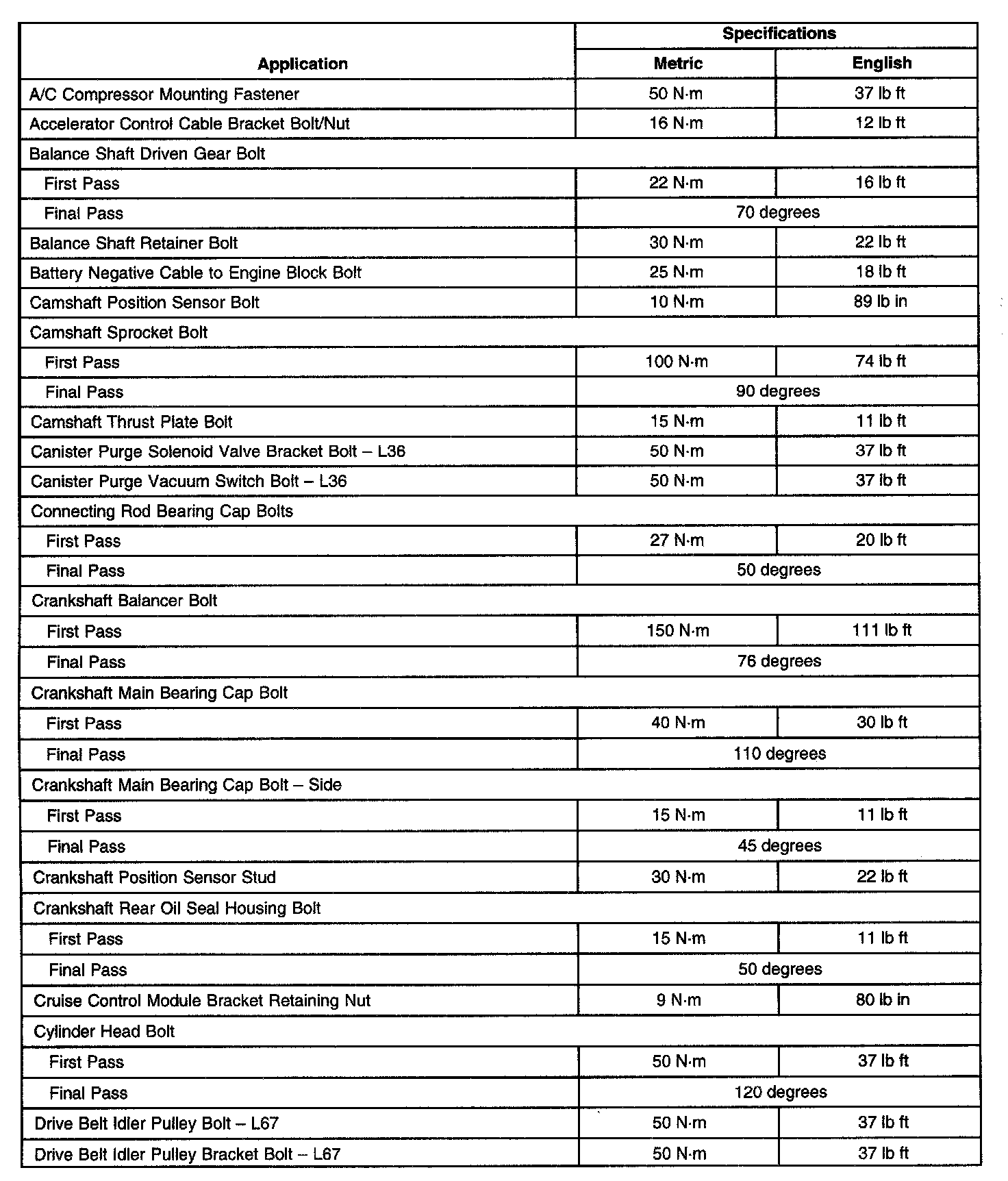

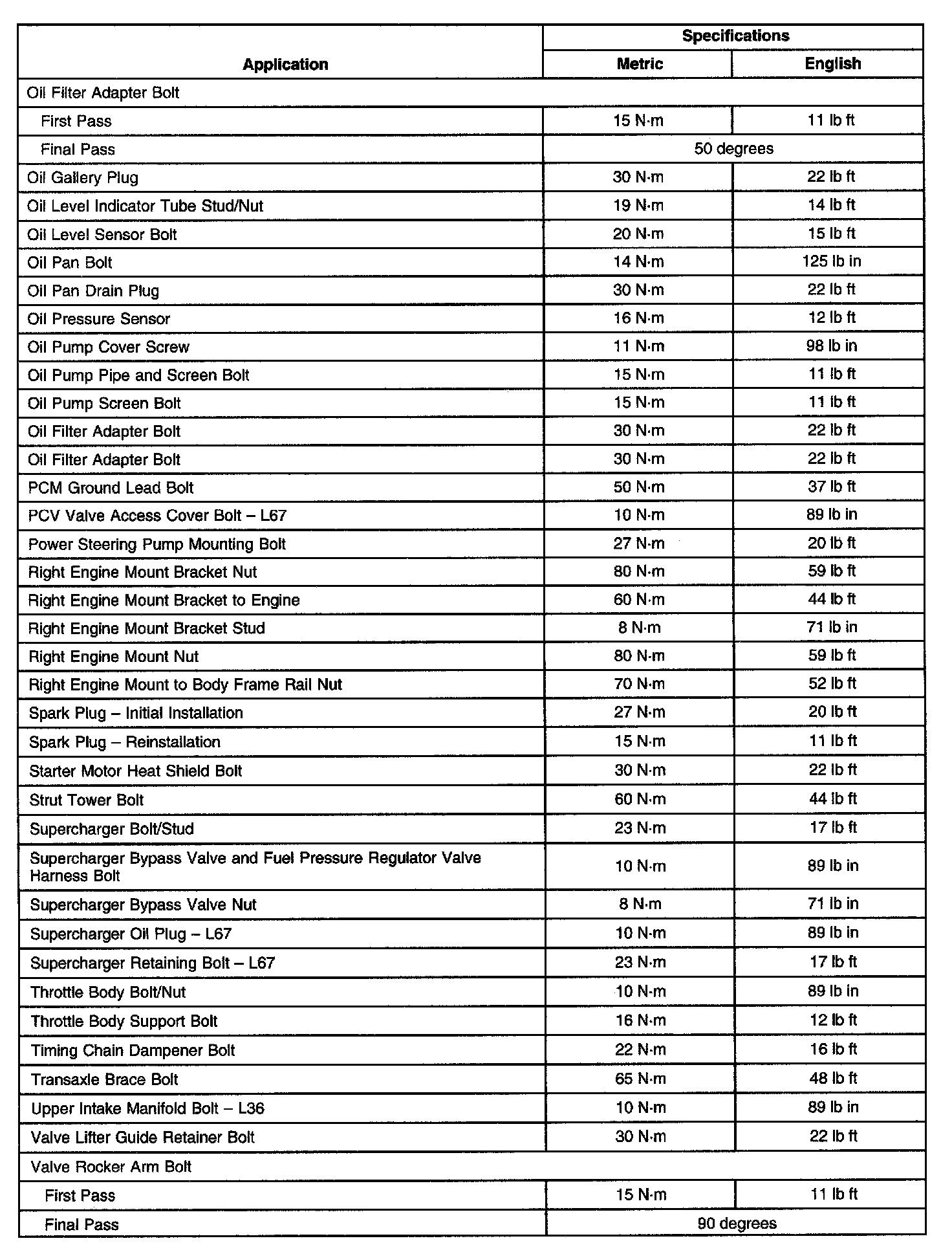

Fastener Tightening Specifications

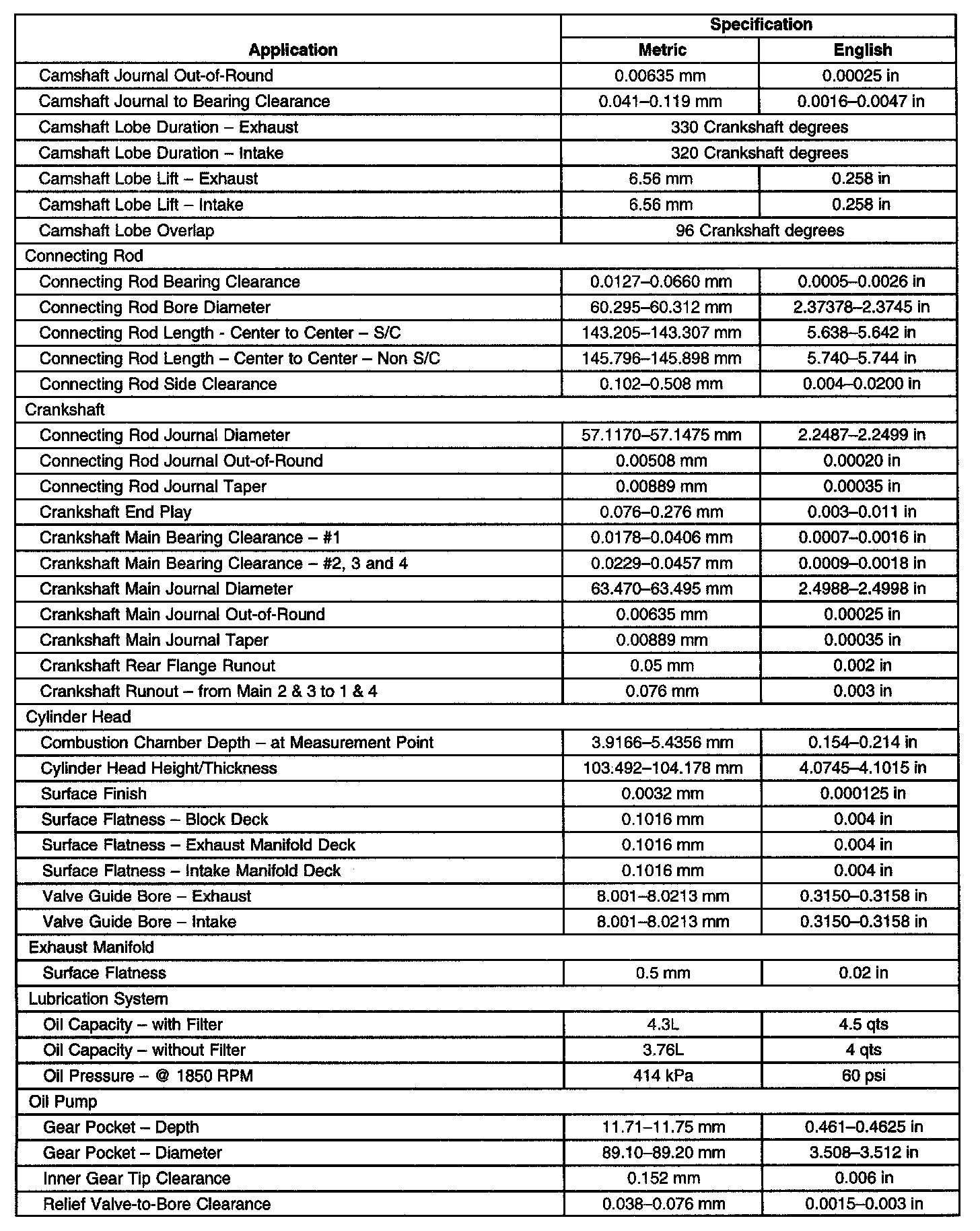

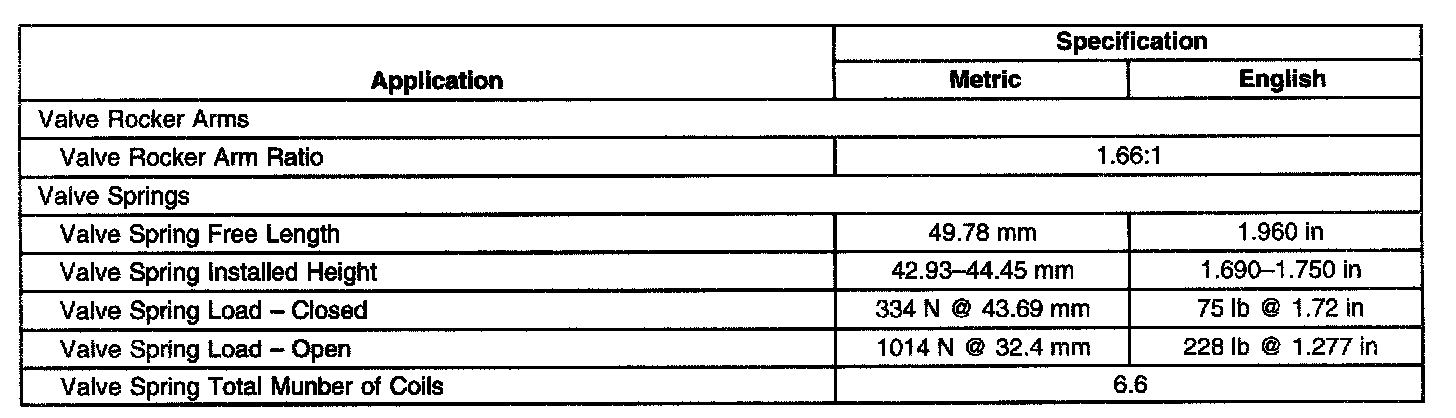

Engine Mechanical Specifications





Sealers, Adhesives and Ludricants
