Power Accessory Receptacle Replacement

ACCESSORY POWER RECEPTACLE REPLACEMENT - 12 VOLT

REMOVAL PROCEDURE




1. Remove the rear floor console.

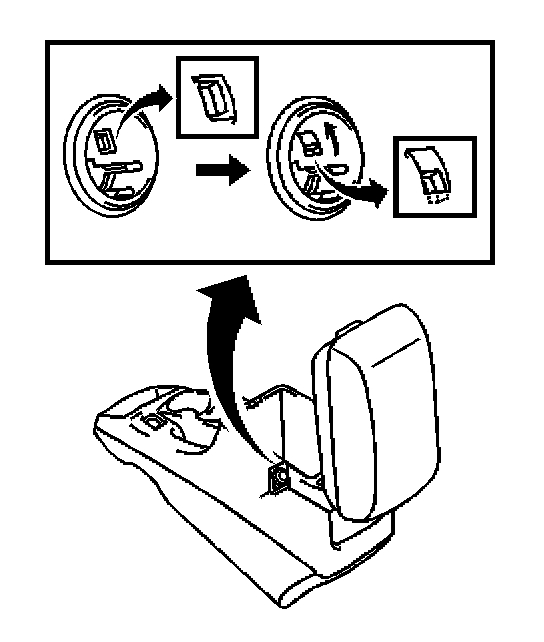

2. Turn the socket in a counter clockwise direction.
3. Disengage the tab between the socket and cover.
4. Align the socket with the notch and remove socket assembly.

INSTALLATION PROCEDURE




1. Align the socket with the notch on the cover, and push in to install.
2. Install the rear floor console.
