Air Door Actuator / Motor, HVAC
>>
HVAC System-Manual
HVAC System-Manual
Air Temperature Actuator - Right:

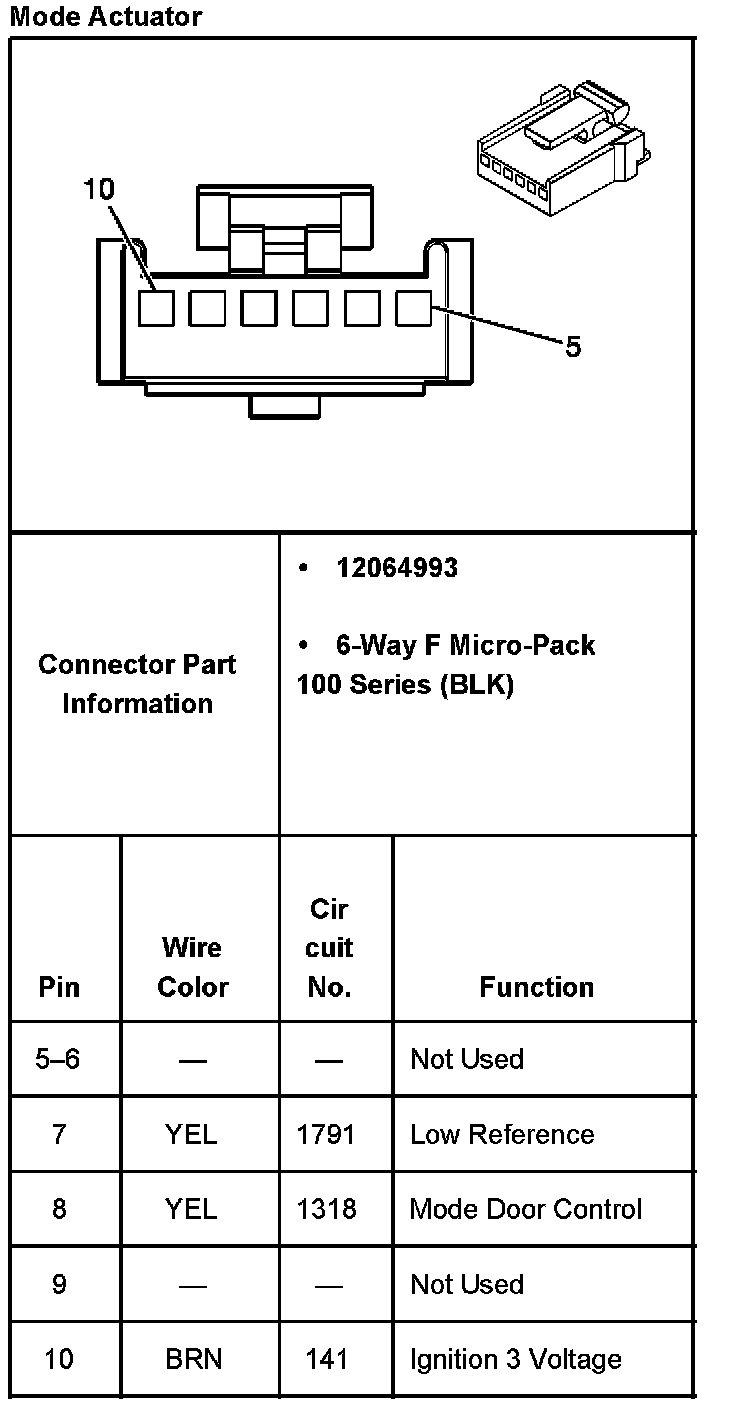

Mode Actuator:

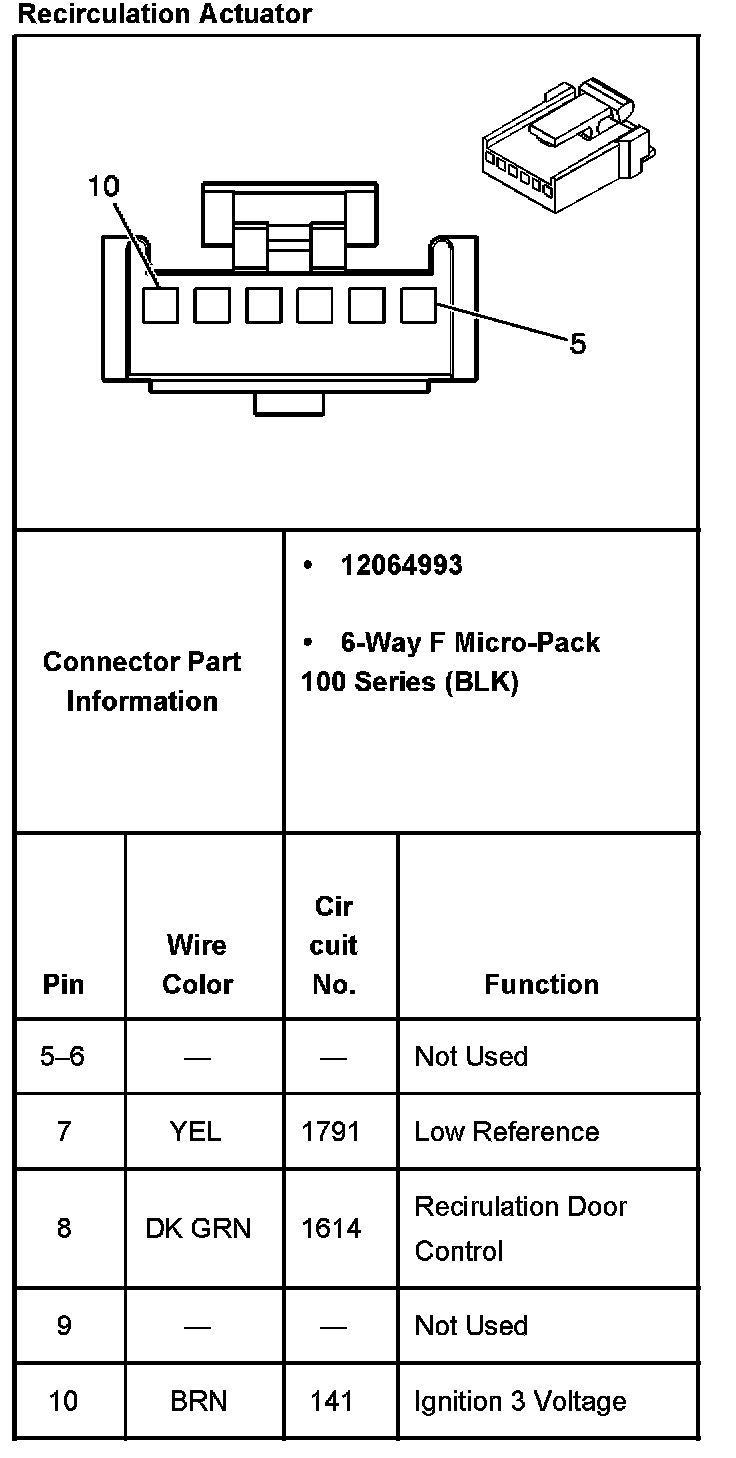

Recirculation Actuator:
