C603 Right Front Door Harness to Right Front Door Trim Harness

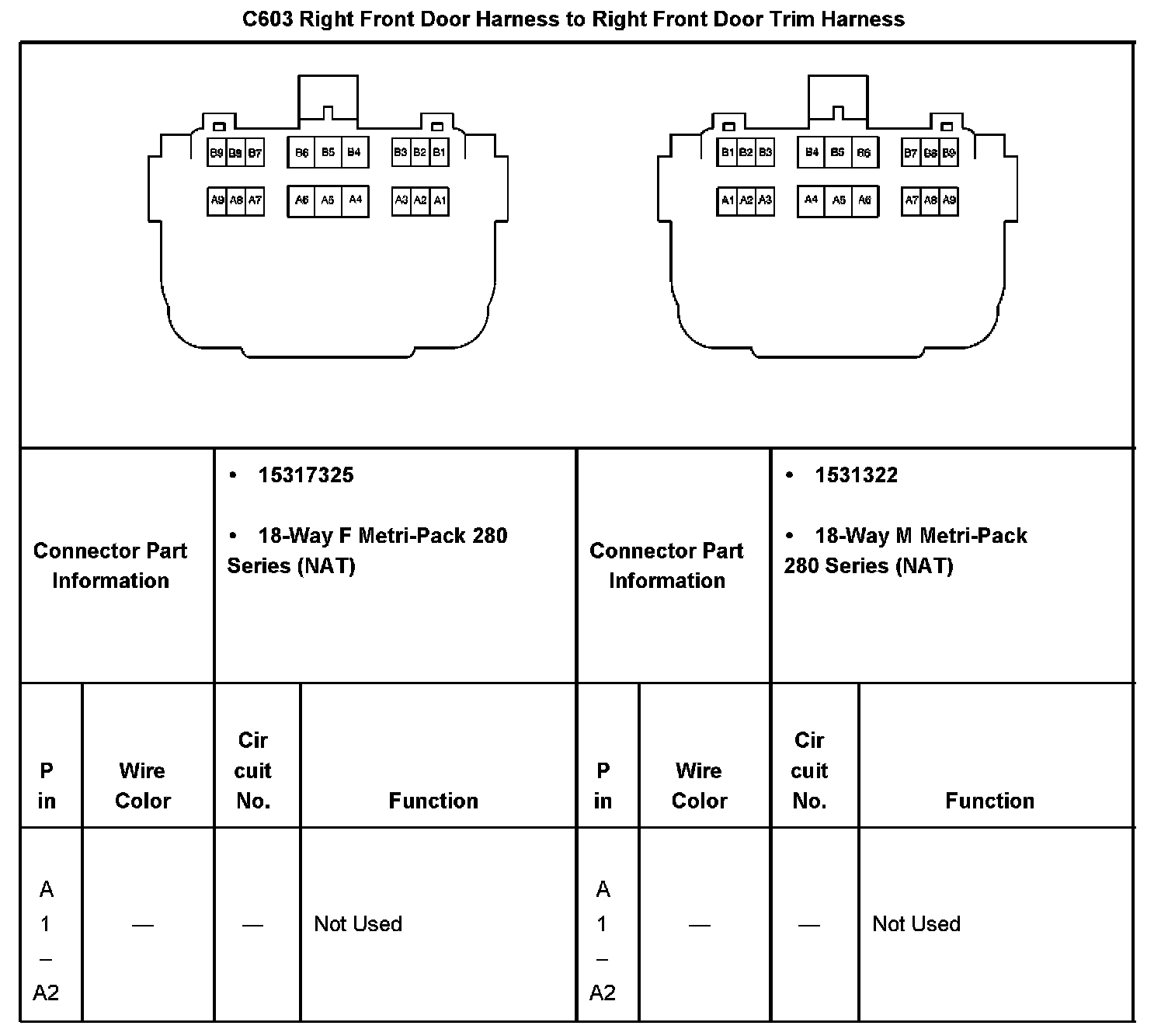

C603 Right Front Door Harness To Right Front Door Trim Harness Part 1:



C603 Right Front Door Harness To Right Front Door Trim Harness Part 2:

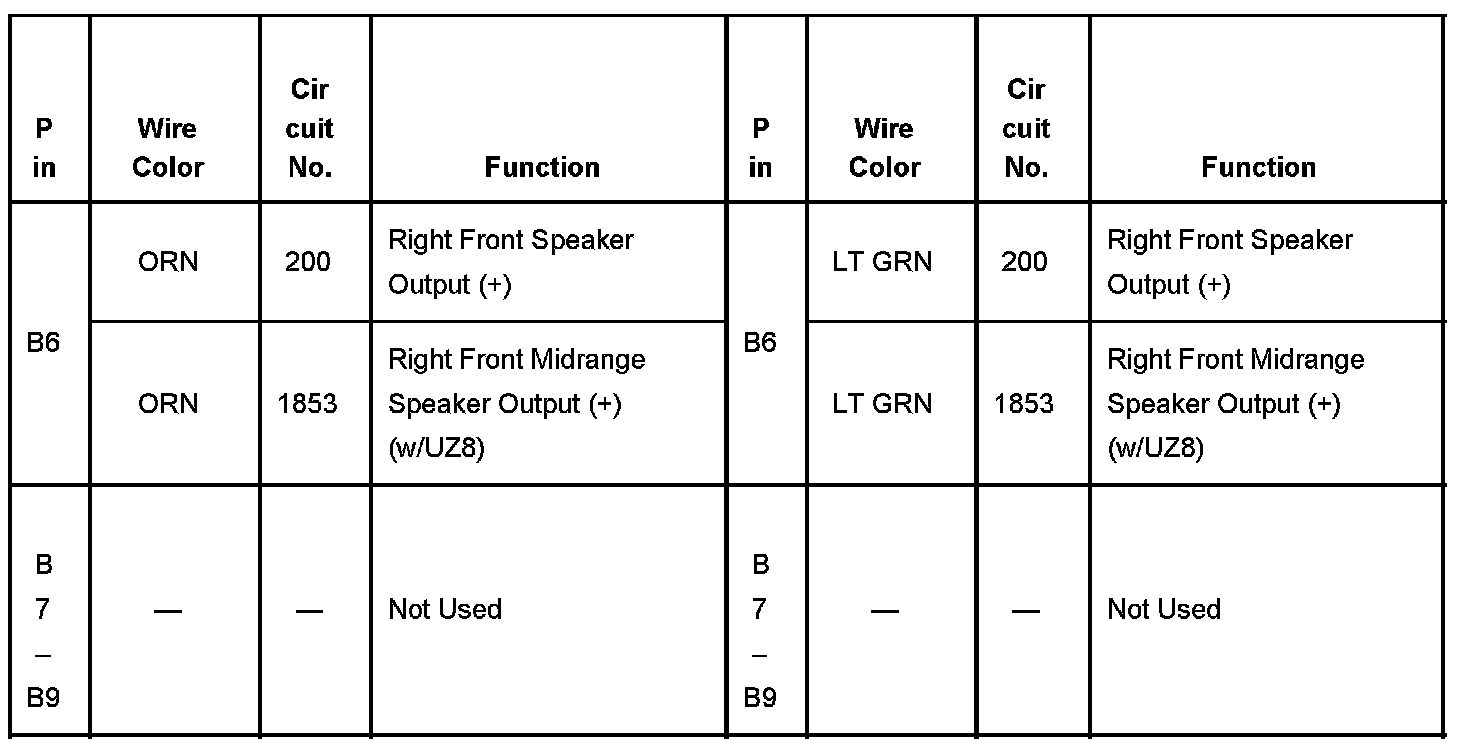

C603 Right Front Door Harness To Right Front Door Trim Harness Part 3:
