Home >> Pontiac >> 2004 >> Bonneville V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Locations >> Engine Compartment, In the Left Front Corner

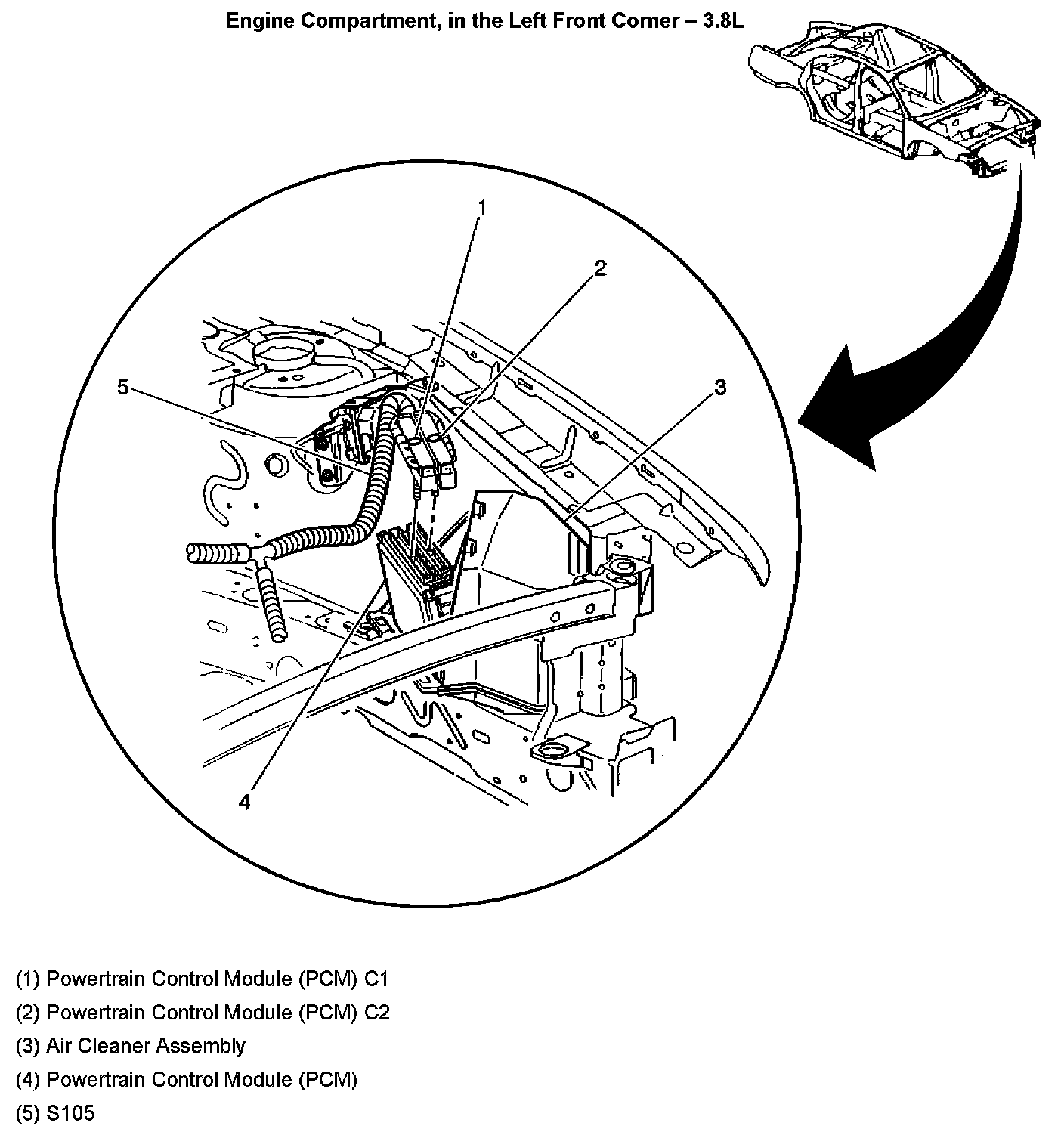

Engine Compartment, In the Left Front Corner

Engine Compartment,in The Left Front Corner:
