Defroster Grille Replacement (With HUD)

Defroster Grille Replacement (with HUD)

Removal Procedure

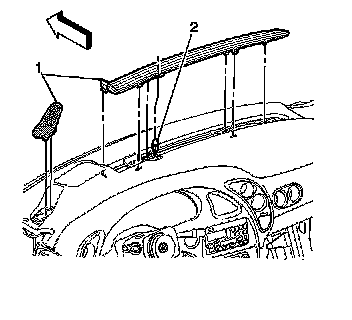

1. Remove the defroster grilles (1) by carefully prying upward in order to release the retainers.
2. Disconnect the sensor (2) from the defroster grille.

Installation Procedure




1. Connect the sensor (2) to the defroster grille (1).
2. Align defroster grilles with instrument panel (IP) carrier.
3. Install the defroster grilles to carrier by pressing down in order to secure.
