Inline Connector, Automatic Transmission

Inline Connectors

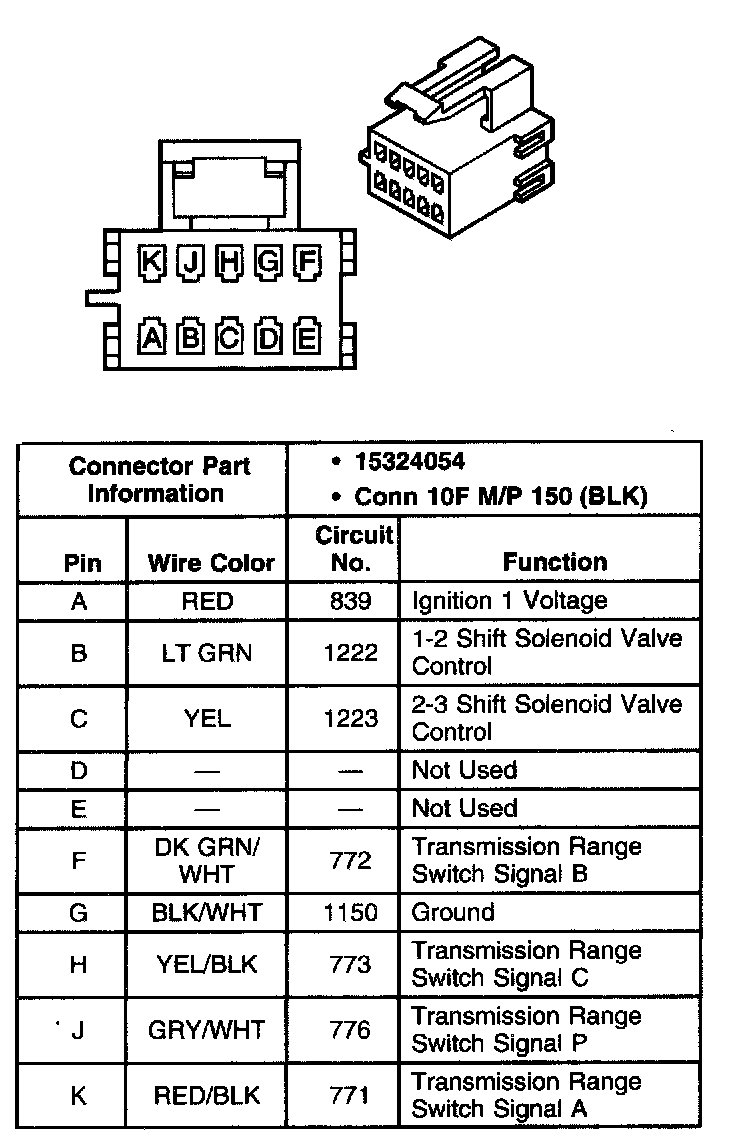

Inline Connector, Automatic Transmission Wiring Harness Assembly Side

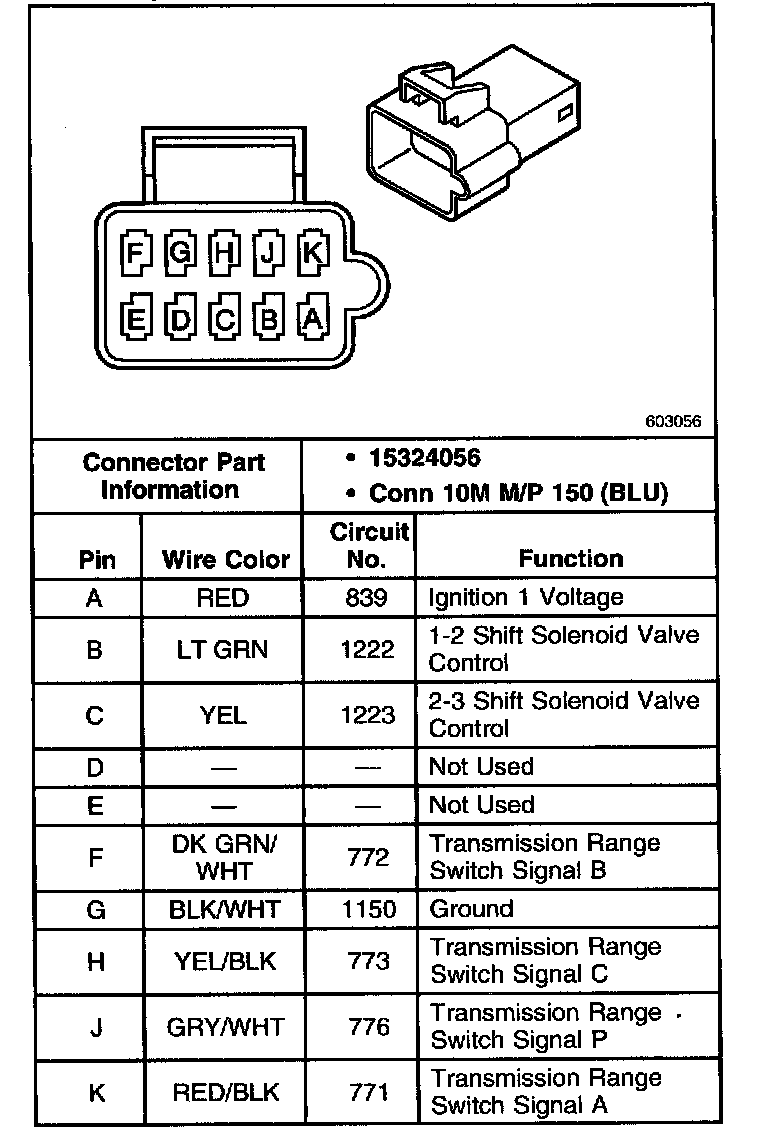

Inline Connector, Automatic Transmission Wiring Extension Harness Assembly Side
