Case and Associated Parts

Disassembled Views

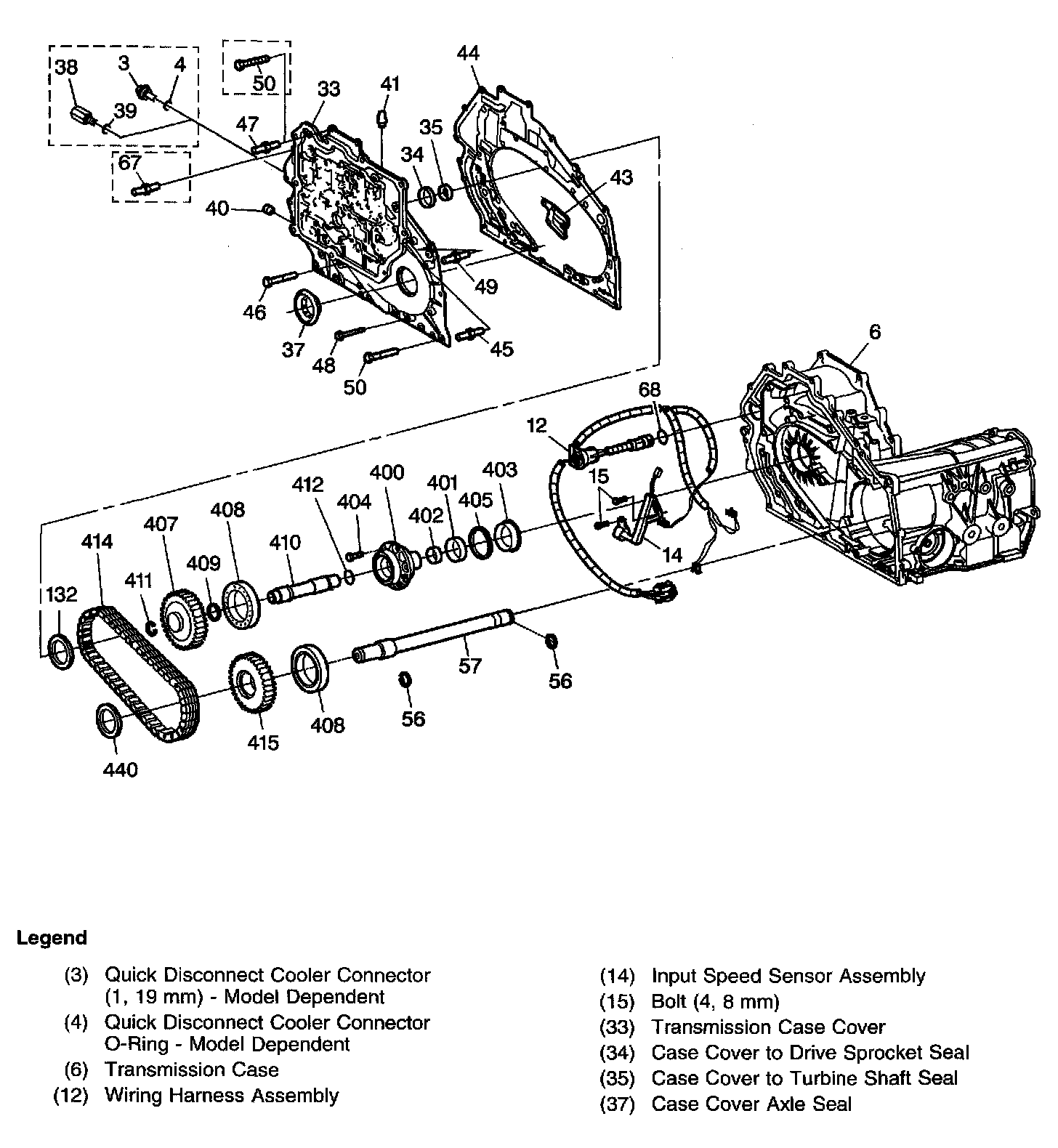

Case and Associated Parts (1 of 3)

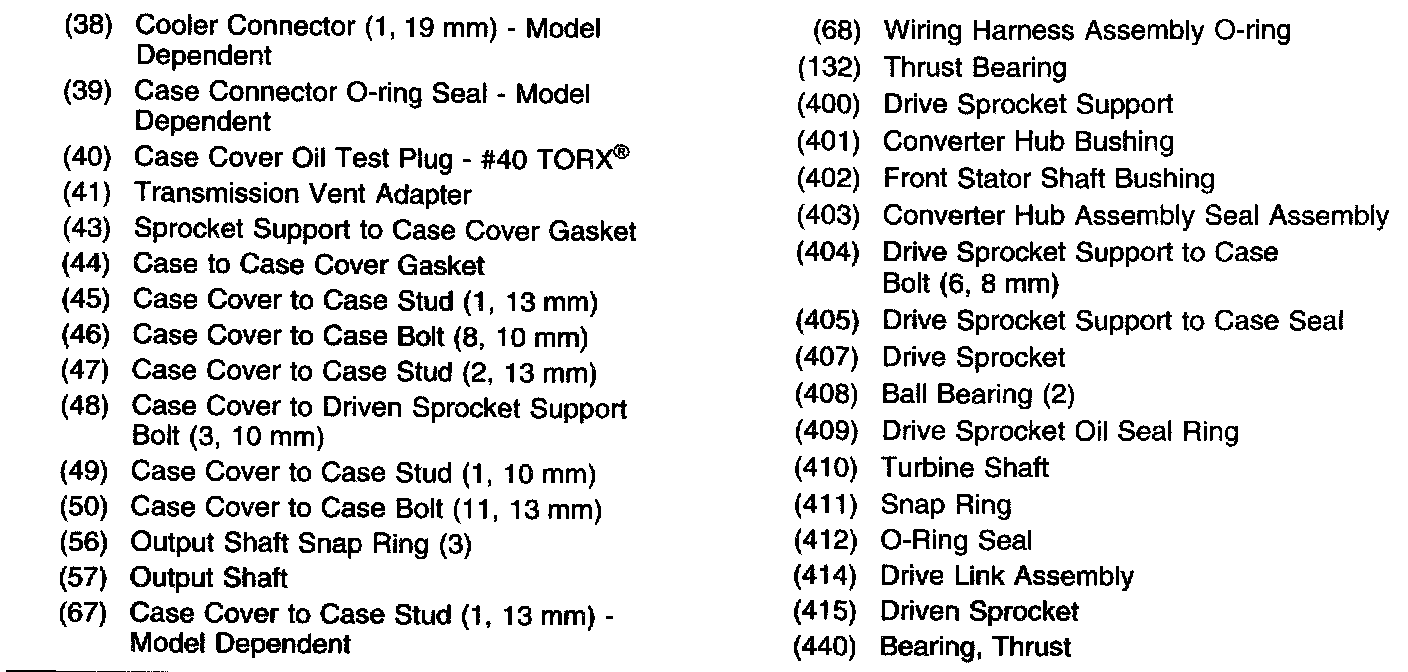

Case and Associated Parts (2 of 3)

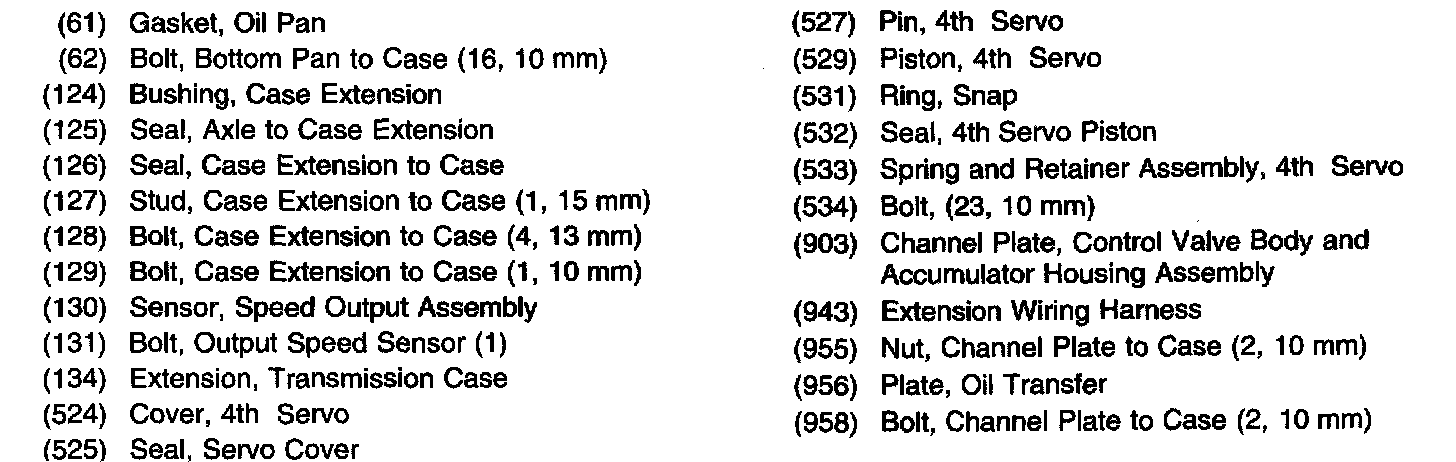

Case and Associated Parts (3 of 3)
