Fluid Pan, A/T

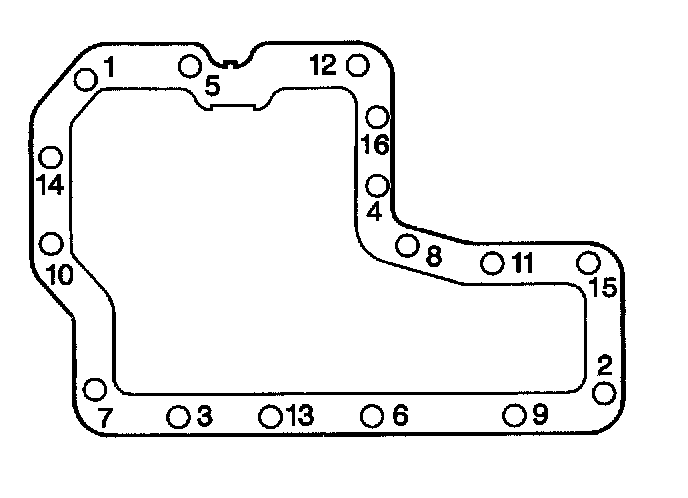

Tighten the pan bolts 3 times to the proper specification, in the sequence shown:
Tighten the pan bolts to 3 Nm (27 inch lbs.).
Tighten the pan bolts to 6 Nm (53 inch lbs.).
Tighten the pan bolts to 12 Nm (106 inch lbs.).
Tighten the pan bolts 3 times to the proper specification, in the sequence shown:
Tighten the pan bolts to 3 Nm (27 inch lbs.).
Tighten the pan bolts to 6 Nm (53 inch lbs.).
Tighten the pan bolts to 12 Nm (106 inch lbs.).
