DTC 247
DTC 247CIRCUIT DESCRIPTION
This DTC identities a malfunction within the sensing and diagnostic module (SDM) power stages.
CONDITIONS FOR RUNNING THE DTC
Ignition voltage is within the normal operating voltage range.
CONDITIONS FOR SETTING THE DTC
A deployment loop malfunction exists.
An internal SDM malfunction exists.
ACTION TAKEN WHEN THE DTC SETS
The SDM commands the AIR BAG indicator ON.
CONDITIONS FOR CLEARING THE DTC
The condition responsible for setting the DTC no longer exists and the scan tool Clear DTCs function is used.

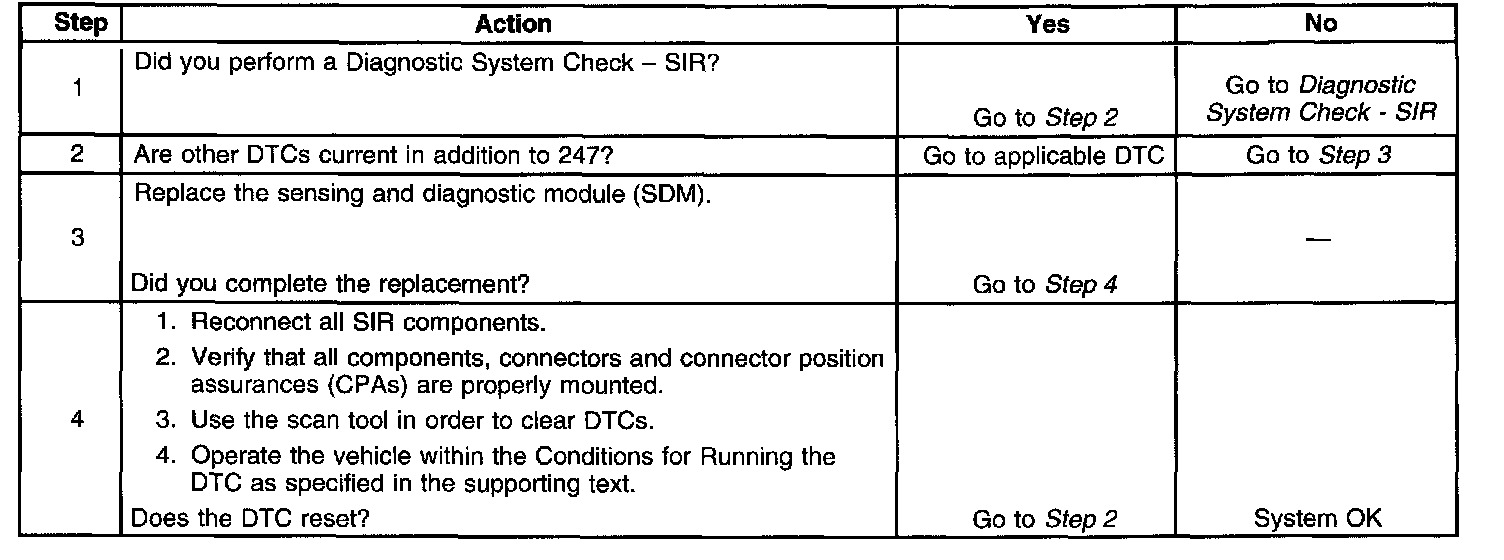

TEST
