Auxiliary Power Outlet
Auxiliary Power Outlet

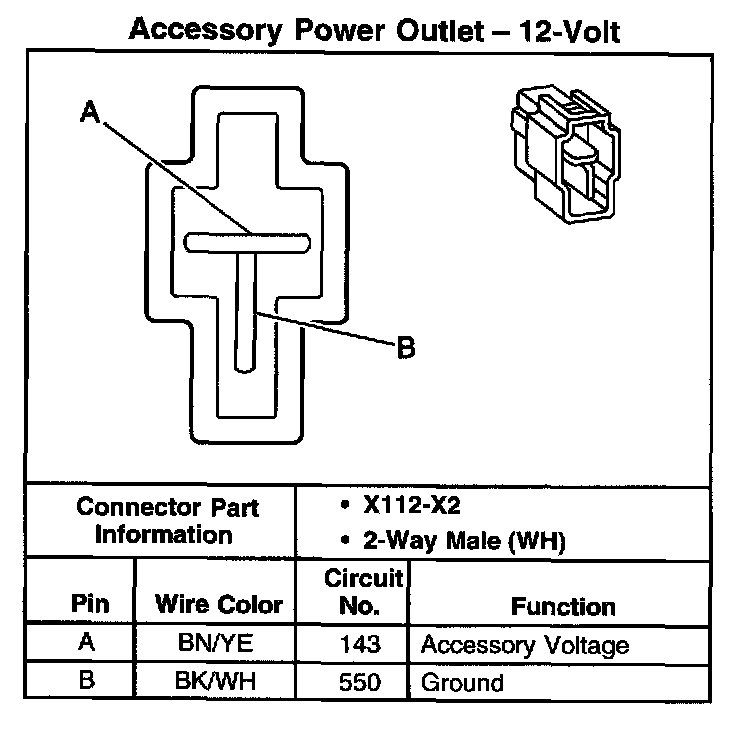

Accessory Power Outlet - 12 Volt:
Cigar Lighter - Front:
Cigar Lighter - Rear:
