Oxygen Sensor
Oxygen Sensor

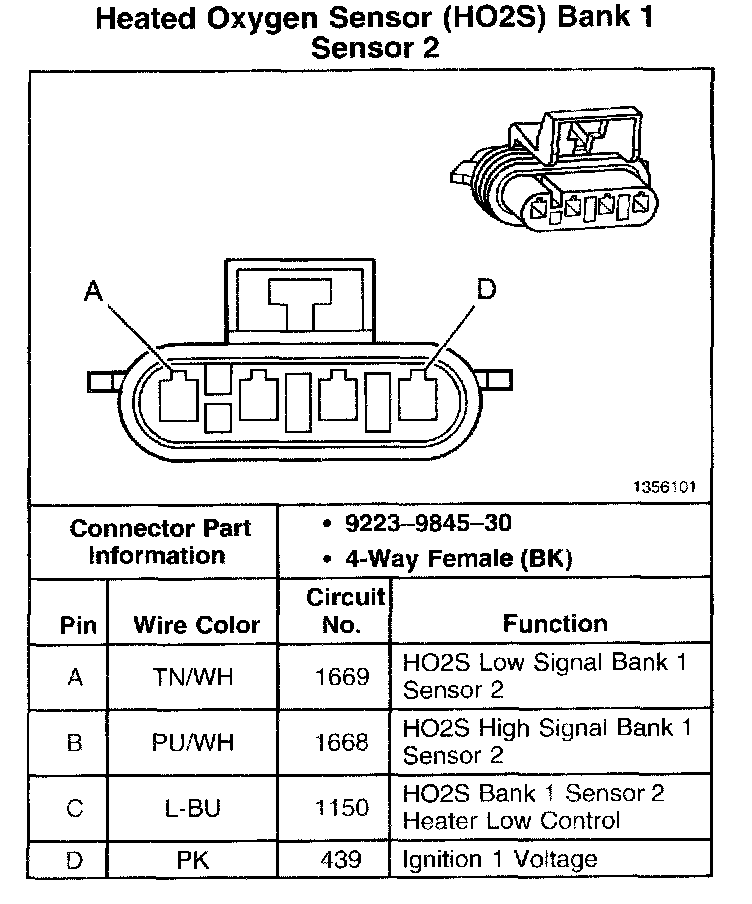

Heated Oxygen Sensor Bank 1 Sensor 2:
Heated Oxygen Sensor Bank 1 Sensor 1:

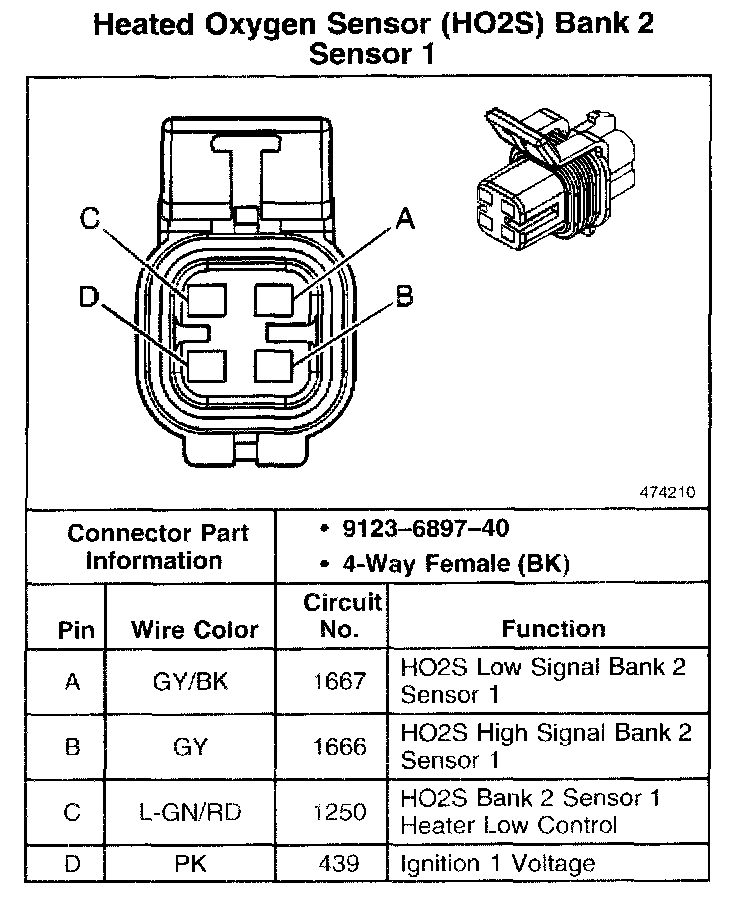

Heated Oxygen Sensor Bank 2 Sensor 1:

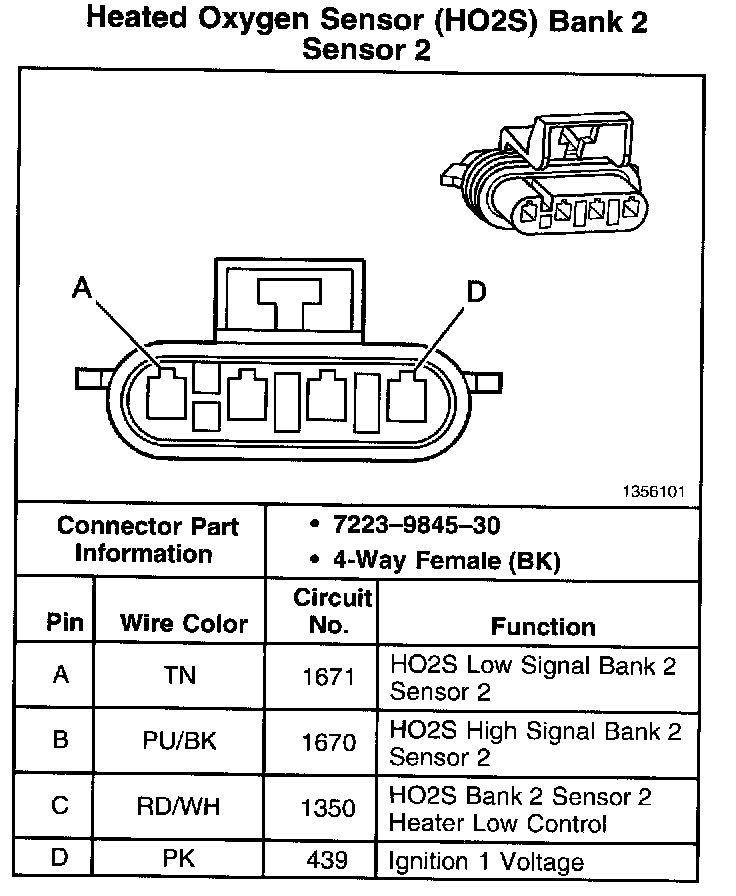

Heated Oxygen Sensor Bank 2 Sensor 2:
