Harness Routing Views (Cooling Fan Harness)
Harness Routing Views (Cooling Fan Harness)

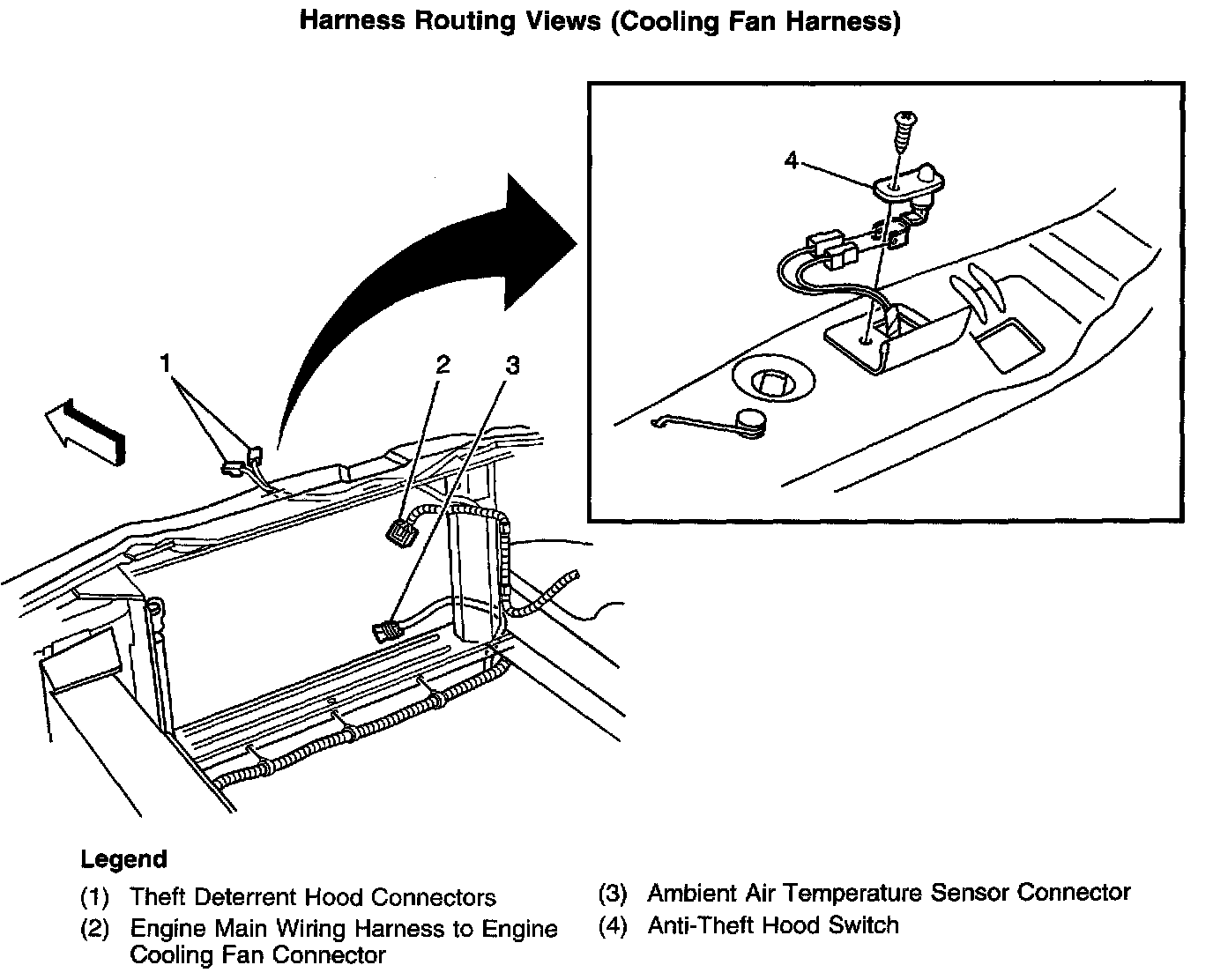

Harness Routing Views (Cooling Fan Harness):
