Floor Air Door Replacement
FLOOR AIR DOOR REPLACEMENTRemoval Procedure
1. Remove the HVAC module.

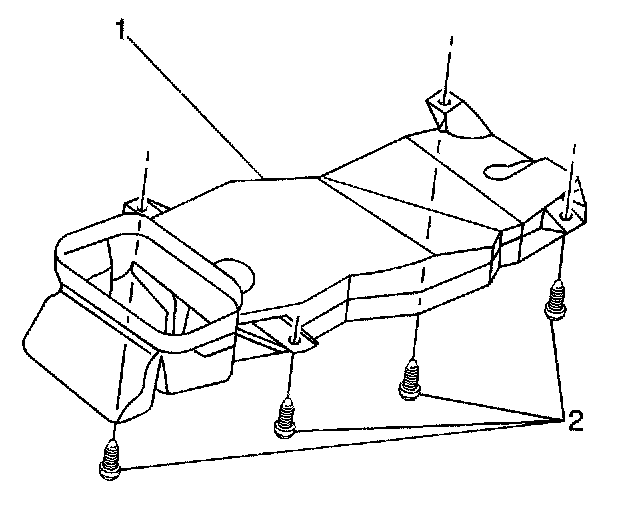

2. Remove the screws (2) from the floor duct (1).
3. Remove the floor duct from the HVAC module.
4. Using a flat blade screw driver gently pry the floor air door lever from the floor air door.
5. Remove the floor air door locating pivot pin from the HVAC case.
6. Remove the floor air door from the HVAC module case.
Installation Procedure
1. Install the floor air door to the HVAC module case.
2. Install the floor air door locating pivot pin to the HVAC case.
3. Install the floor air door lever to the floor air door.
NOTICE: Refer to Fastener Notice in Service Precautions.
4. Install the floor duct (1) to the HVAC module. Secure with the screws (2).
Tighten
Tighten the screws to 2 N.m (18 Ib in).
5. Install the HVAC module.
