C130 Engine Harness to Fuel Injector Harness

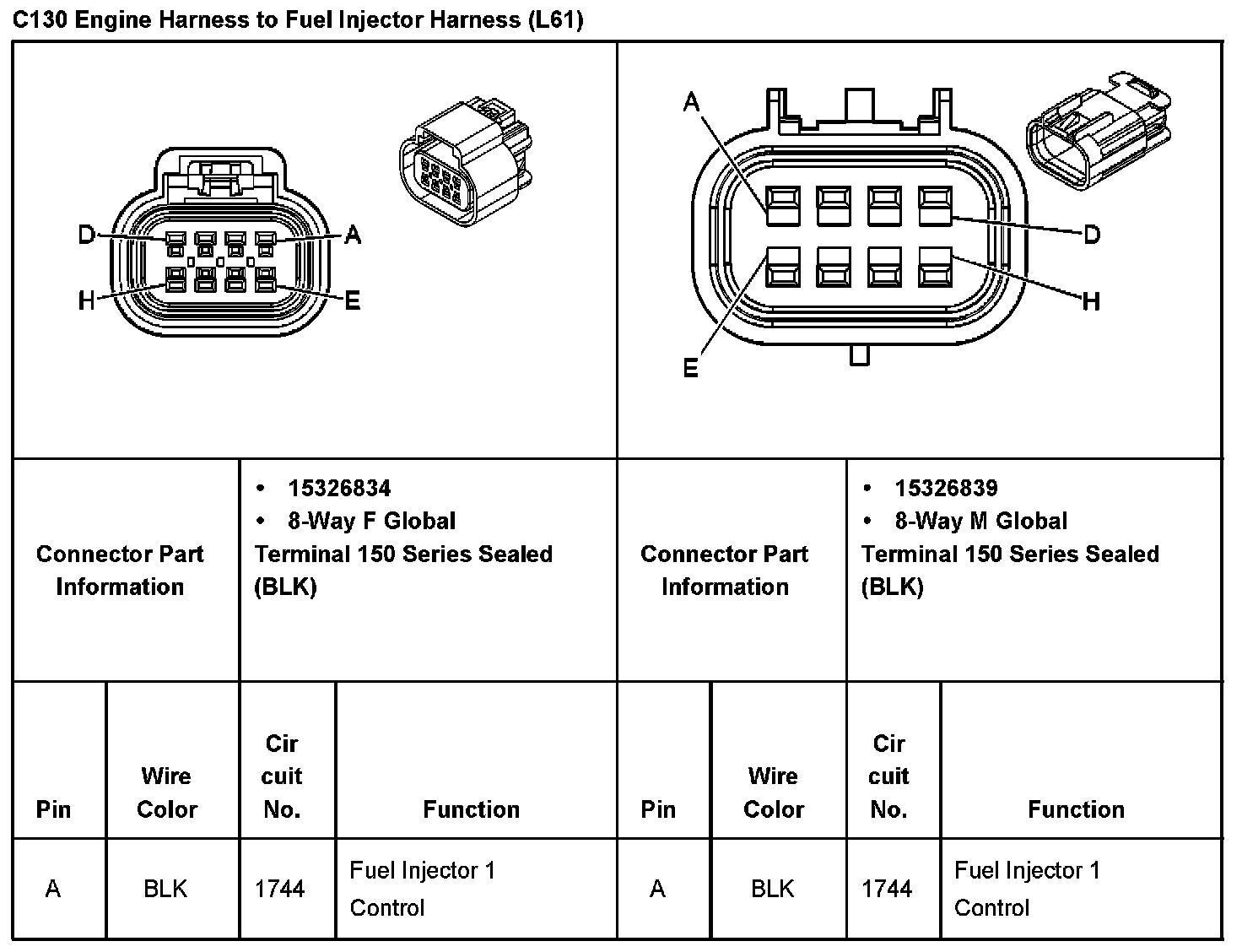

C130 Engine Harness to Fuel Injector Harness:



C130 Engine Harness to Fuel Injector Harness:



C130 Engine Harness to Fuel Injector Harness Part 3:



C130 Engine Harness to Fuel Injector Harness Part 1:



C130 Engine Harness to Fuel Injector Harness Part 2:
