61. Camshaft Cover Installation

Camshaft Cover Installation





1. Assemble the camshaft cover and gasket. Ensure that the gasket is located in the retaining groove in the camshaft cover.

Notice: Refer to Fastener Notice in Cautions and Notices.

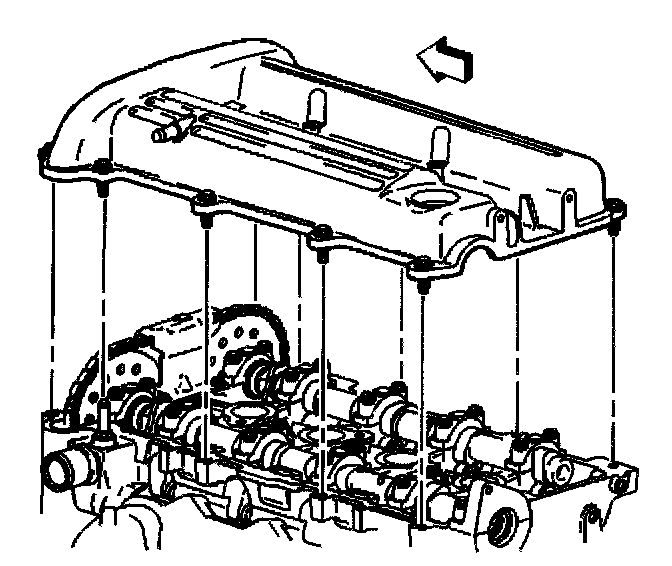

2. Install the cover on the cylinder head and hand start the bolts.
^ Tighten the camshaft cover bolts to 10 Nm (89 inch lbs.).

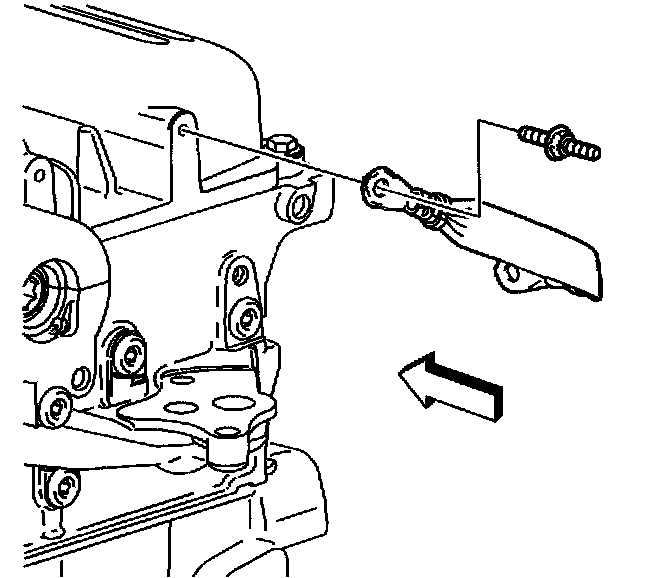

3. Install the ground strap.
^ Tighten the camshaft cover ground strap bolts to 10 Nm (89 inch lbs.).

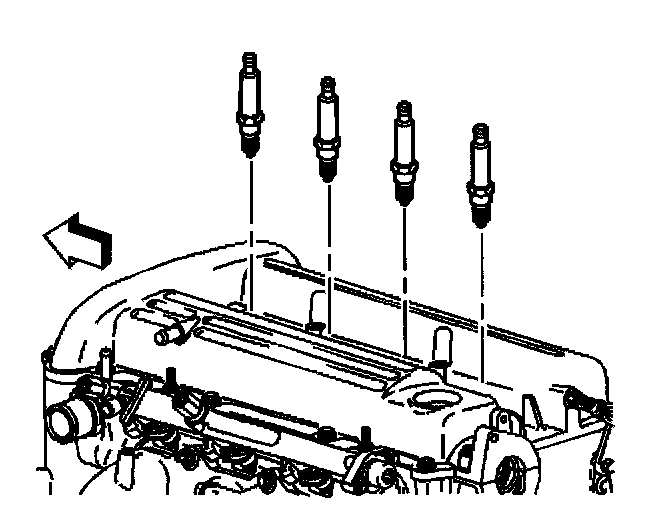

4. Install the spark plugs.
^ Tighten the spark plugs to 20 Nm (15 ft. lbs.).

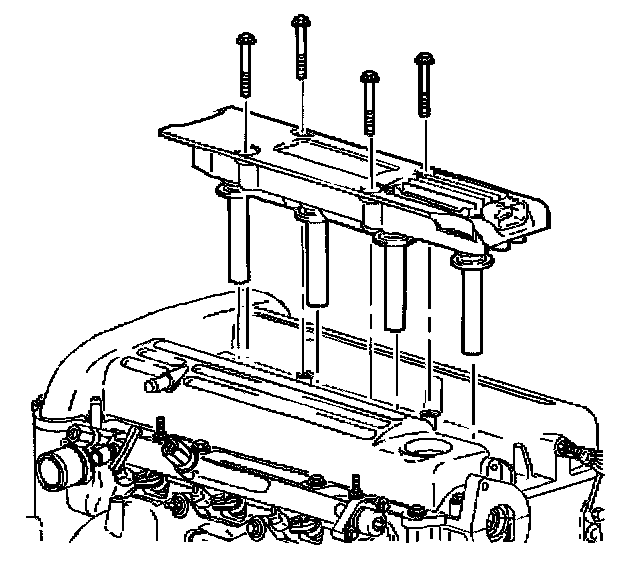

5. Install the ignition coil and module assembly to the cam cover.
^ Tighten the ignition coil and module assembly bolts to 10 Nm (89 inch lbs.).

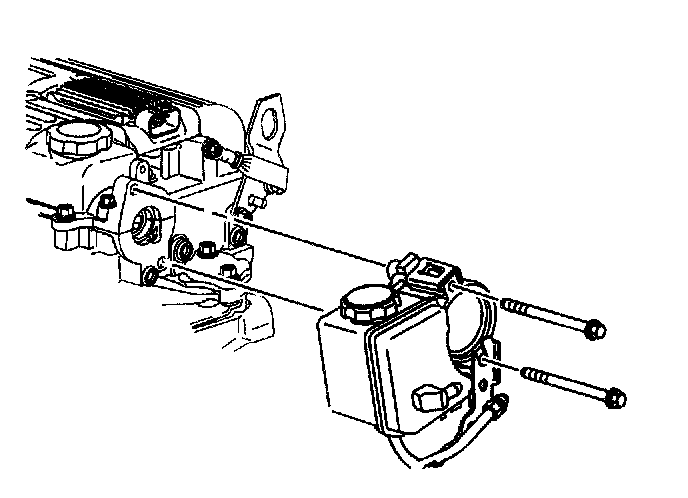

6. Install the power steering pump.
^ Tighten the power steering pump bolts to25 Nm (18 ft. lbs.).
