Cigarette Lighter: Service and Repair

CIGAR LIGHTER HOUSING REPLACEMENT - FLOOR CONSOLE

TOOLS REQUIRED
J 42059 Cigarette Lighter Socket Remover

REMOVAL PROCEDURE




1. Remove the lighter fuse.

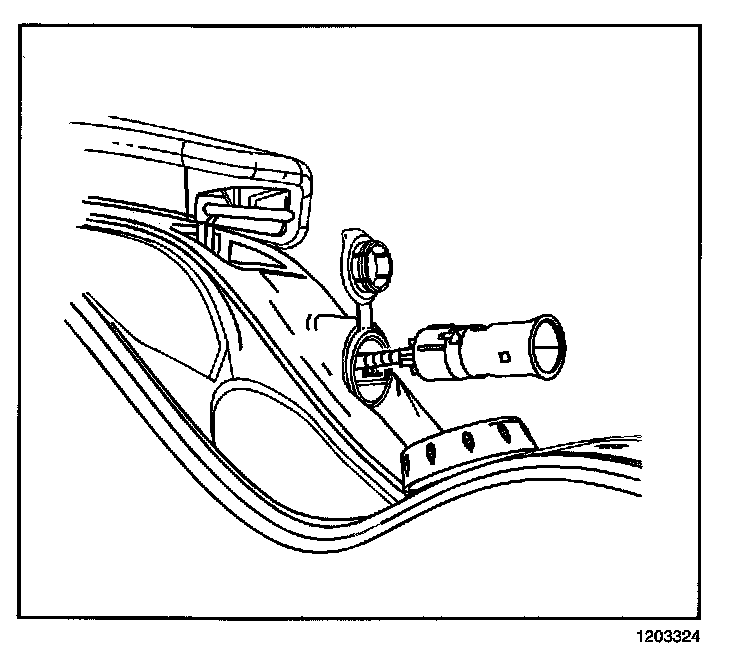

2. Remove the lighter receptacle by placing one side of the "T" portion of the J 42059 into the receptacle opening. Angle the other side into the opposite opening. Pull the lighter receptacle straight out.
3. Remove the J 42059.
4. Disconnect the electrical connector. Make sure the connector remains routed through the opening.
5. Remove the receptacle.

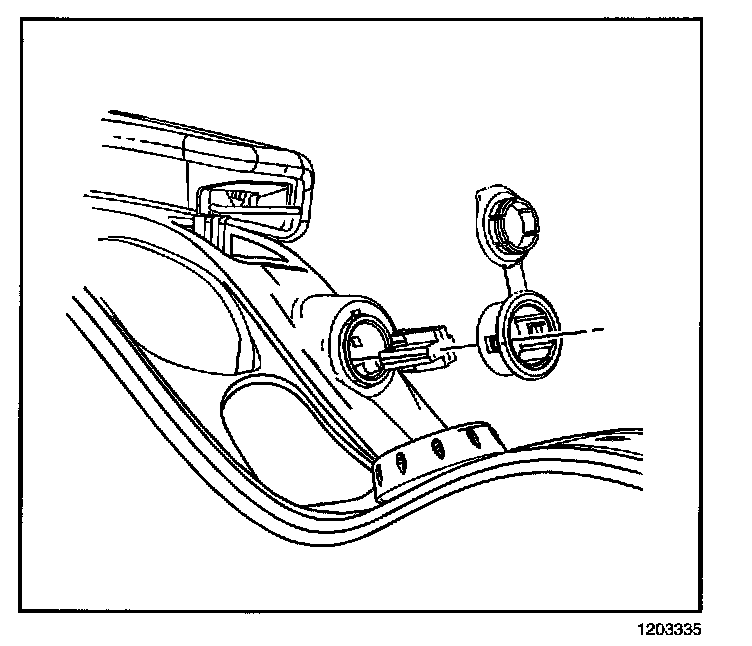

6. Remove the lighter receptacle retainer.

INSTALLATION PROCEDURE




1. Route the connector through the retainer. Align the lighter receptacle retainer to the slot in the opening.
2. Install the retainer by pressing into place until fully seated.




3. Connect the electrical connector to the receptacle.
4. Align the tabs on the receptacle to the slots in the retainer. Install the lighter receptacle by pressing into place until fully seated.
5. Install the lighter fuse.
