Center Mounted Brake Lamp: Service and Repair

HIGH MOUNTED STOP LAMP REPLACEMENT

REMOVAL PROCEDURE

IMPORTANT: The spoiler mounted stop lamp has no serviceable bulbs. The lamp is serviced as a complete assembly.




1. Remove the spoiler from the rear compartment lid.

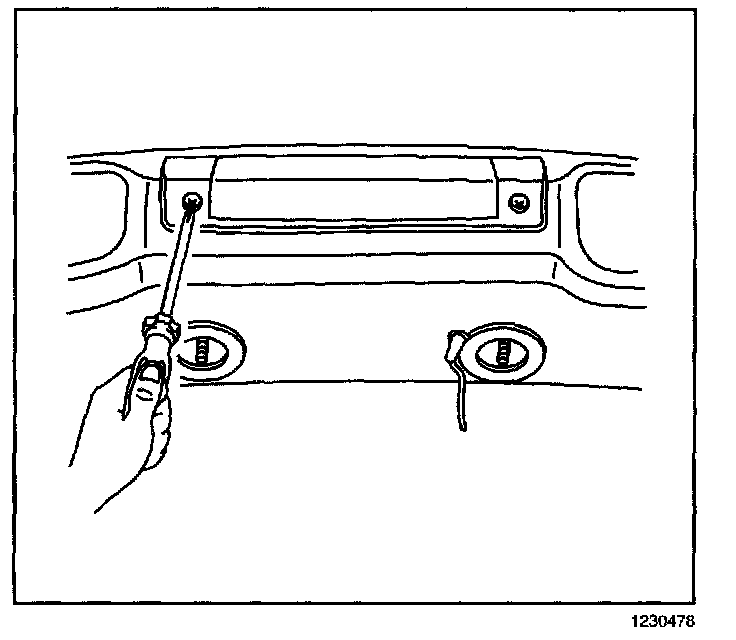

2. Remove the screws from the stop lamp.

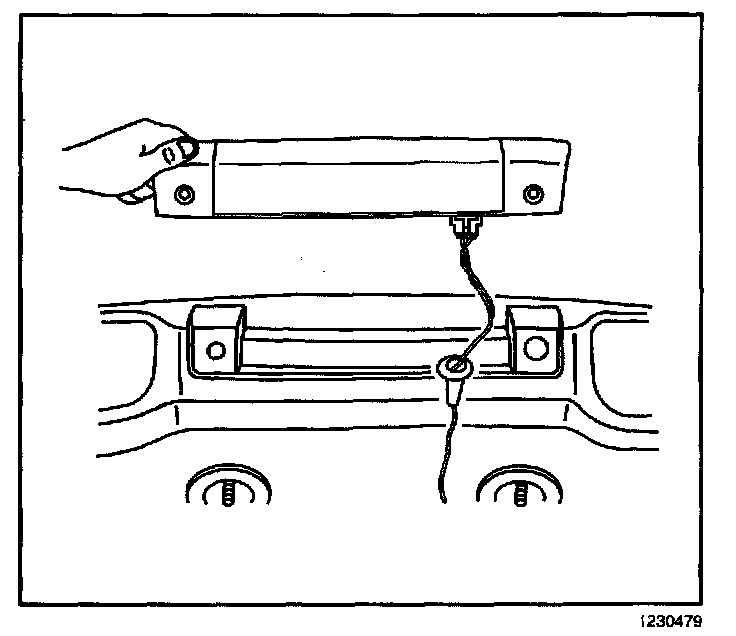

3. Remove the stop lamp from the spoiler.

INSTALLATION PROCEDURE

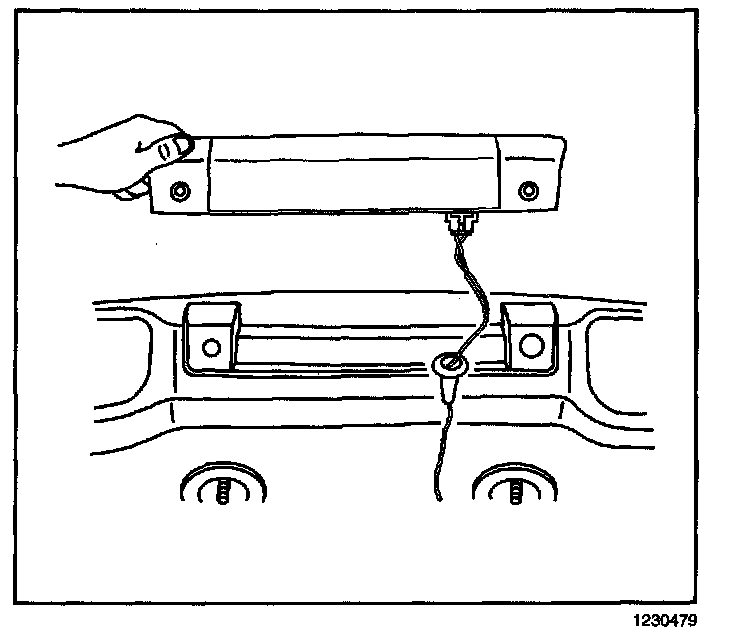

1. Install the stop lamp to the spoiler.

NOTE: Refer to Fastener Notice in Service Precautions.




2. Install the stop lamp screws to the stop lamp.

Tighten
Tighten the screws to 2 N.m (18 lb.in).

3. Install the spoiler to the rear compartment lid.
