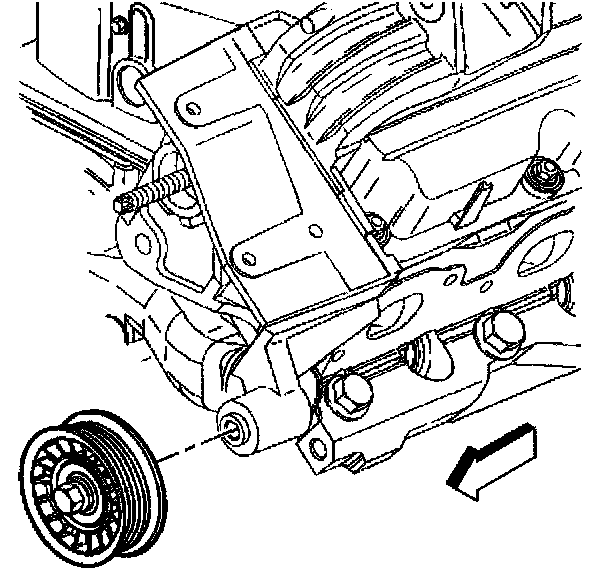

98. Drive Belt Idler Pulley Installation

1. Install the drive belt idler pulley.

Notice: Refer to Fastener Notice in Service Precautions

2. Install the drive belt idler pulley bolt.
^ Tighten the drive belt idler pulley bolt to 50 Nm (37 ft. lbs.).
