Home >> Pontiac >> 2004 >> Sunfire L4-2.2L VIN F >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Brake Warning Indicator >> Diagrams

Brake Warning Indicator: Diagrams

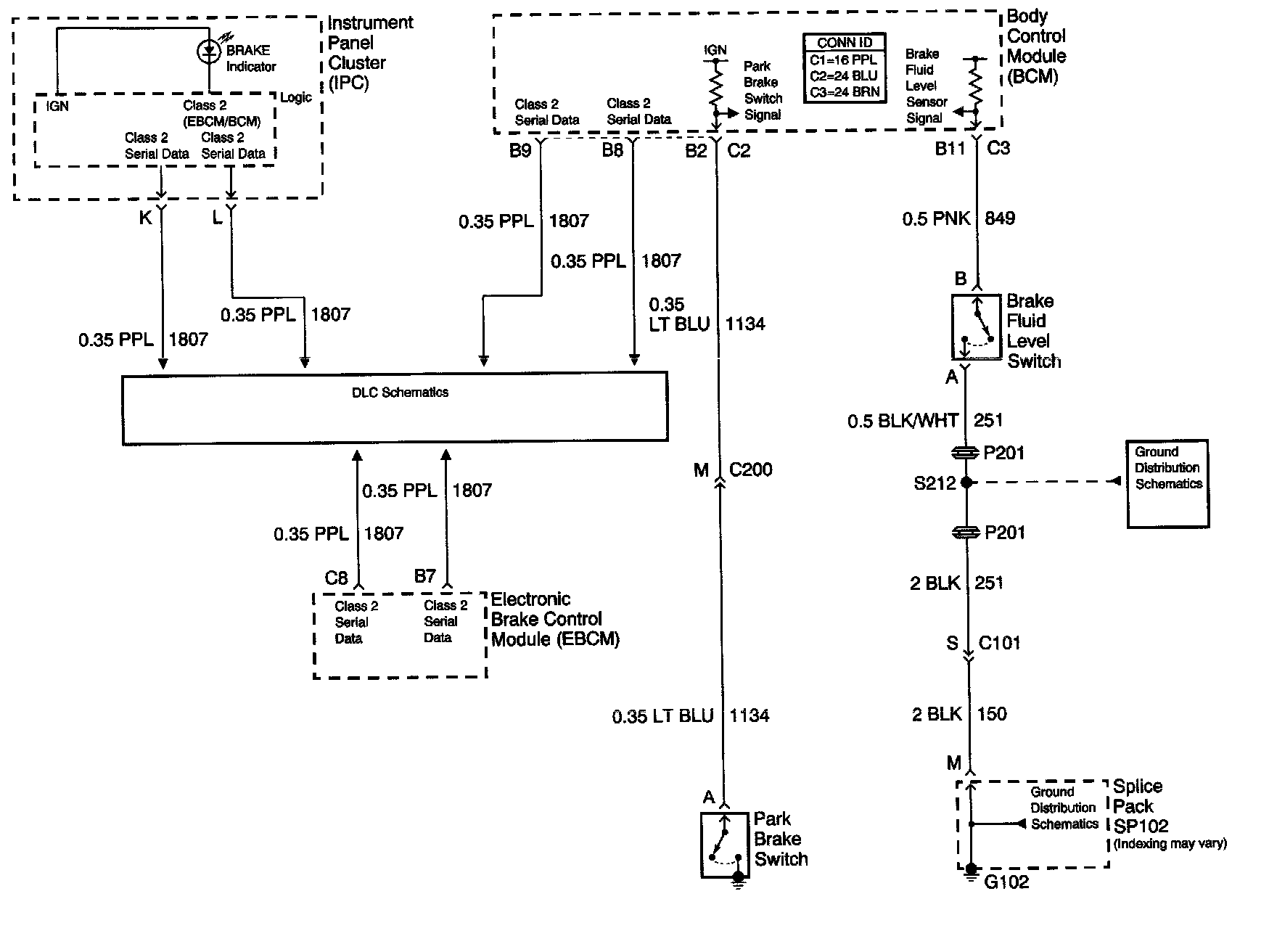

Brake Warning System Diagrams:
