Trim Plate Replacement - Console
TRIM PLATE REPLACEMENT - CONSOLEREMOVAL PROCEDURE

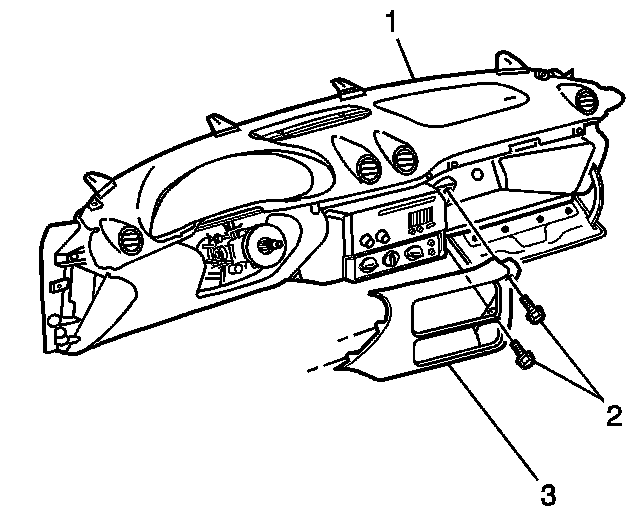

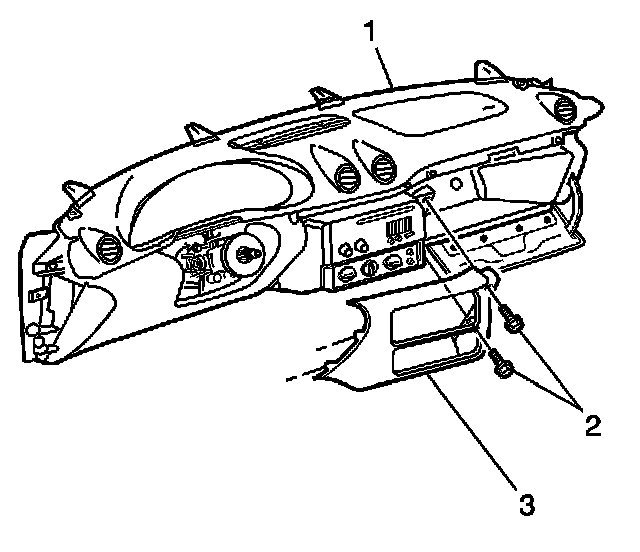

1. Open the instrument panel (I/P) compartment door in order to access the screws (2).
2. Remove the screws (2) from the I/P accessory trim plate (3).
3. Pull the I/P trim plate (3) rearward to disengage the retainers.
4. Remove the I/P trim plate (3) from the I/P carrier (1).
INSTALLATION PROCEDURE
1. Align the tabs for the I/P trim plate (3) to the I/P carrier (1).
2. Push the I/P trim plate (3) into the I/P carrier (1) to engage the retainers.
3. Install the I/P accessory trim plate screws (2).
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the screws to 2 N.m (18 lb in).
4. Close the I/P compartment door.
