Pressure, Vacuum and Temperature Specifications

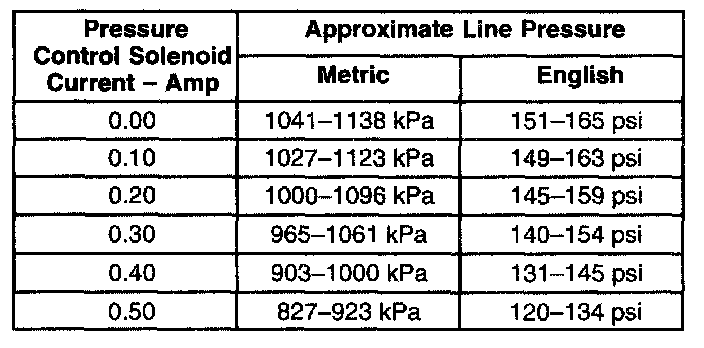

Line Pressure Part (1 Of 2):

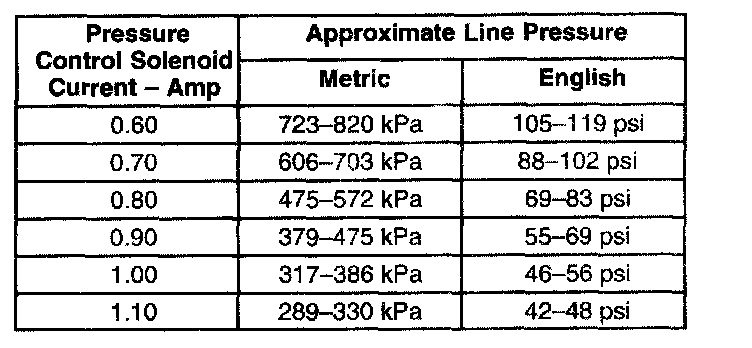

Line Pressure Part (2 Of 2):
