Seat Temperature Control Module: Diagrams

Heated Seat Module - Driver C1 (With RPO Code AG1, A80, KA1):

Heated Seat Module - Driver C2 (With RPO Code AG1, KA1):

Heated Seat Module - Front Passenger C1 (With RPO Code AG2, A81, KA1):

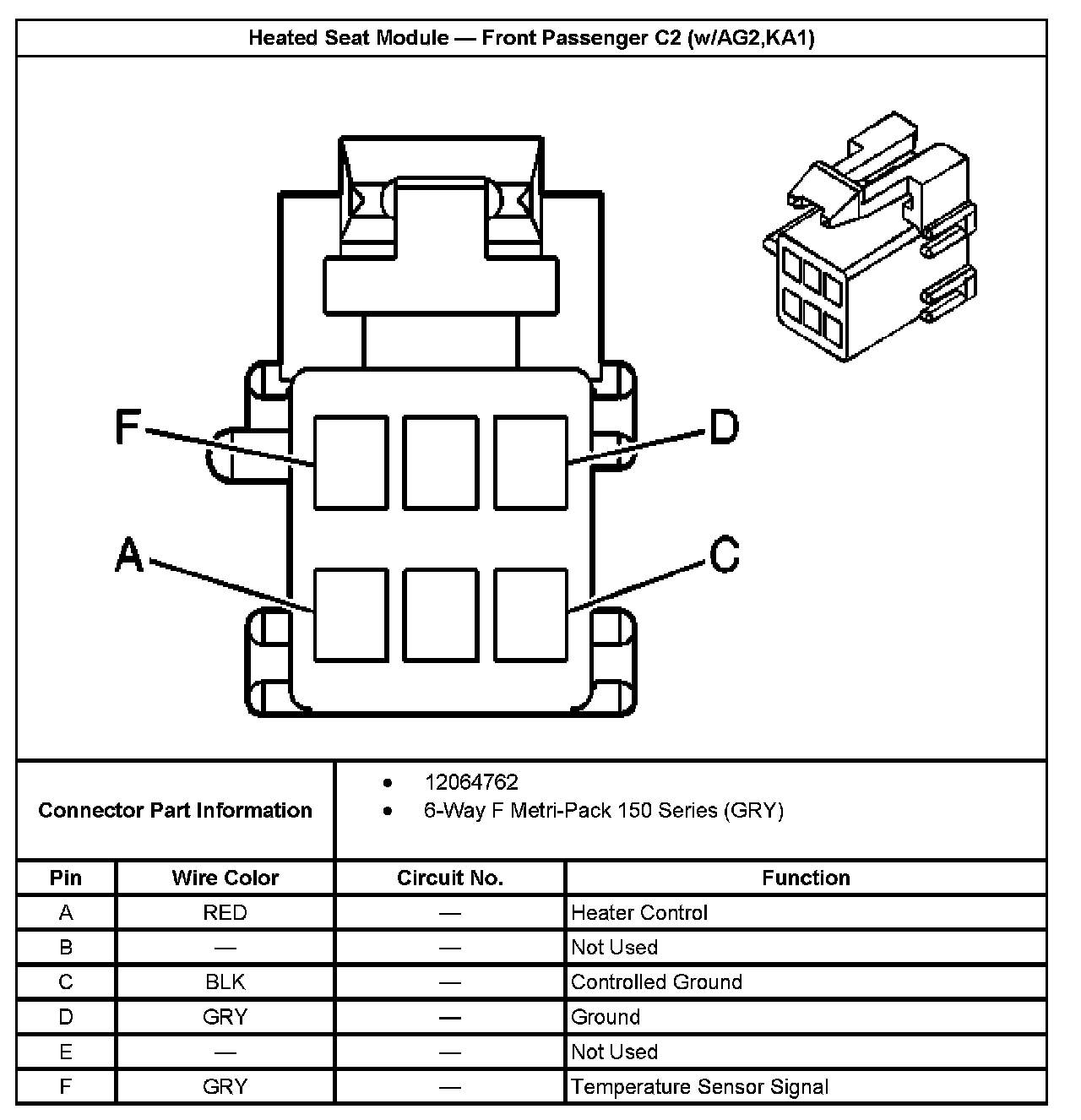

Heated Seat Module - Front Passenger C2 (With RPO Code AG2, KA1):
