Home >> Pontiac >> 2005 >> Bonneville V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Components

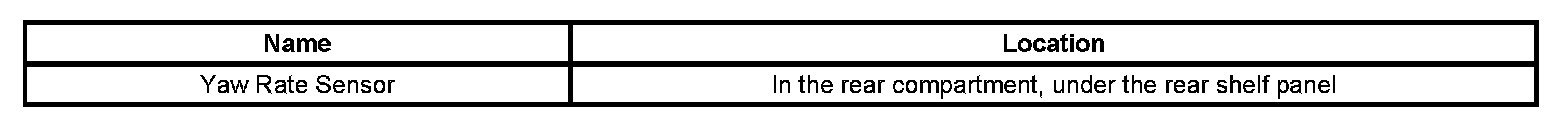

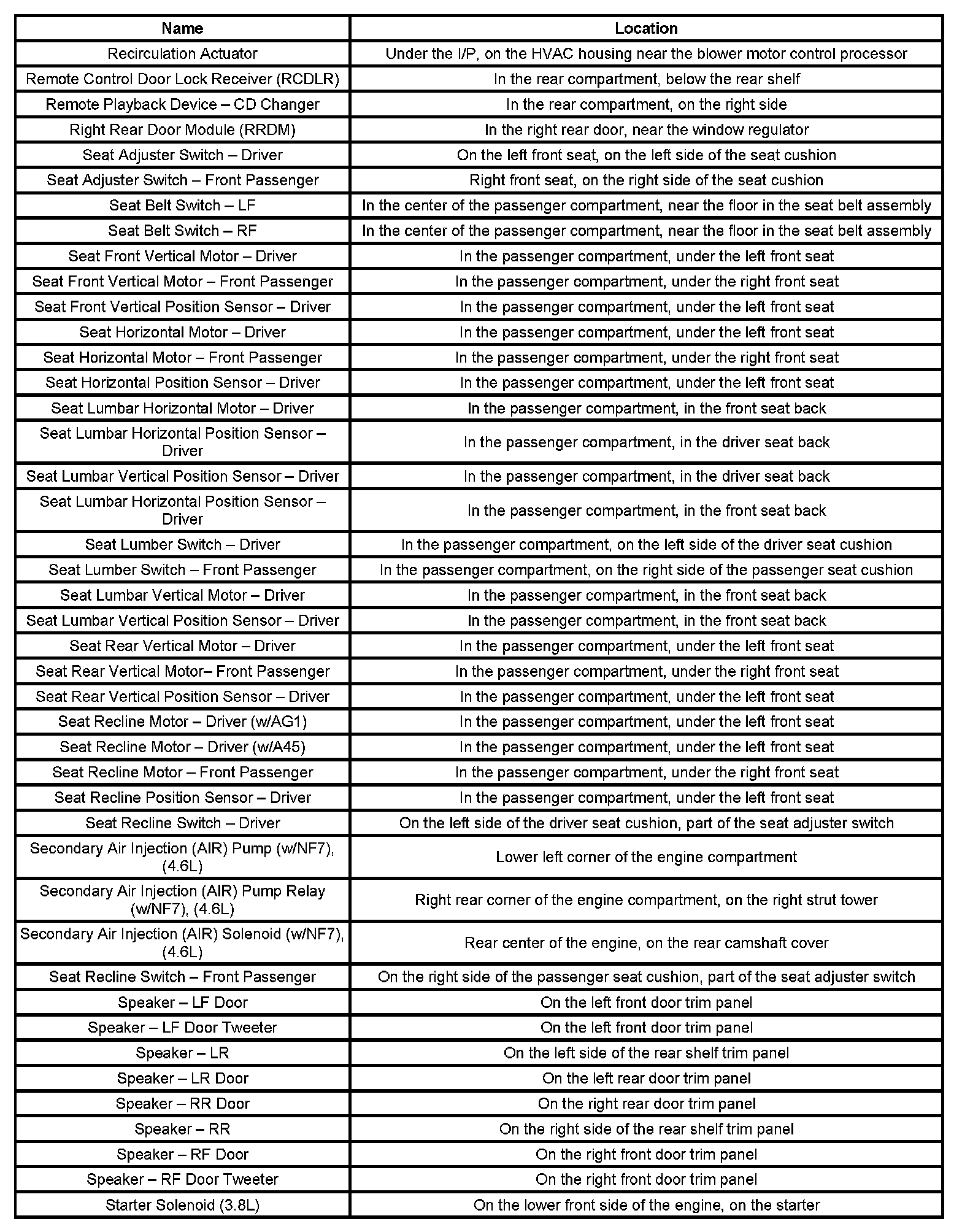

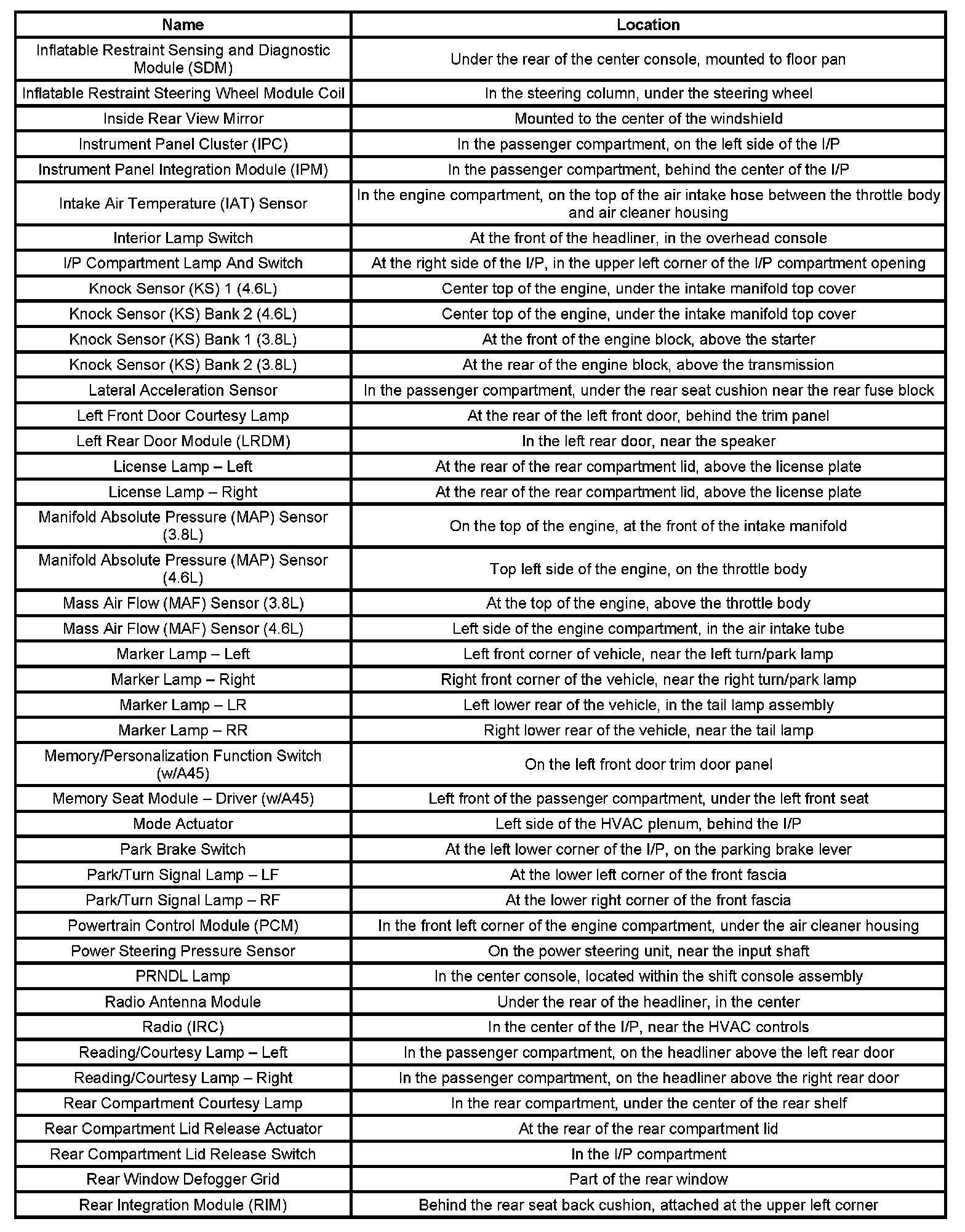

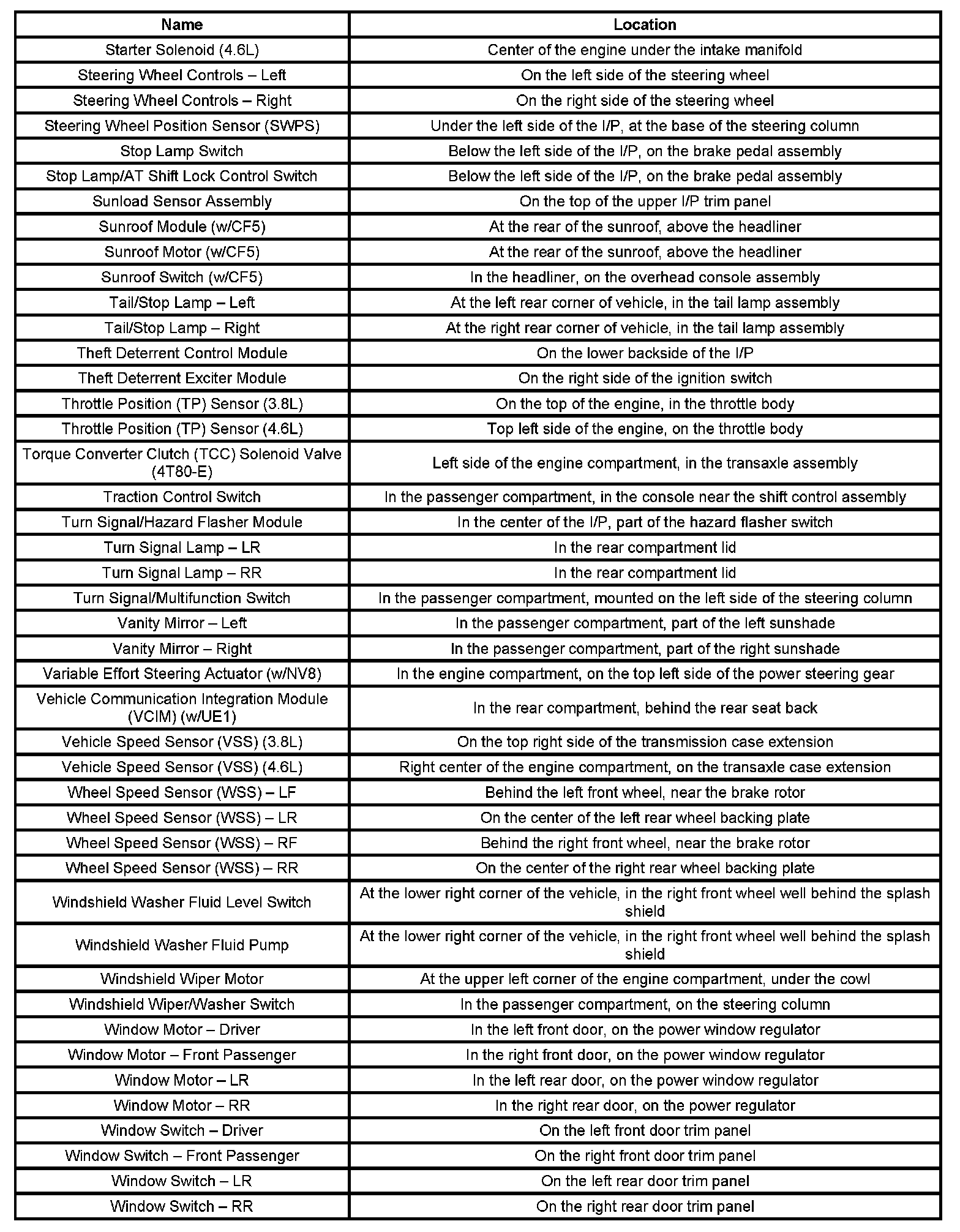

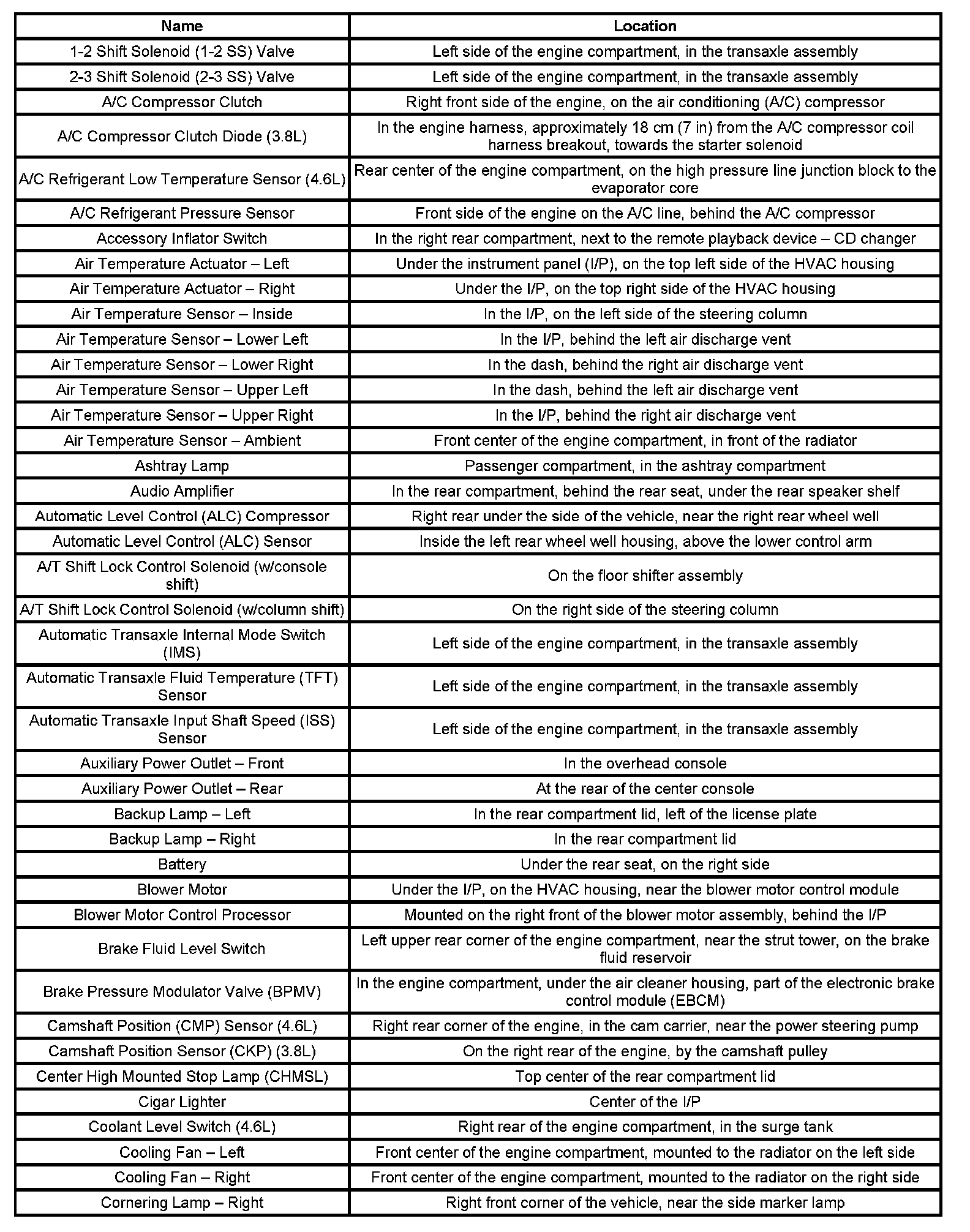

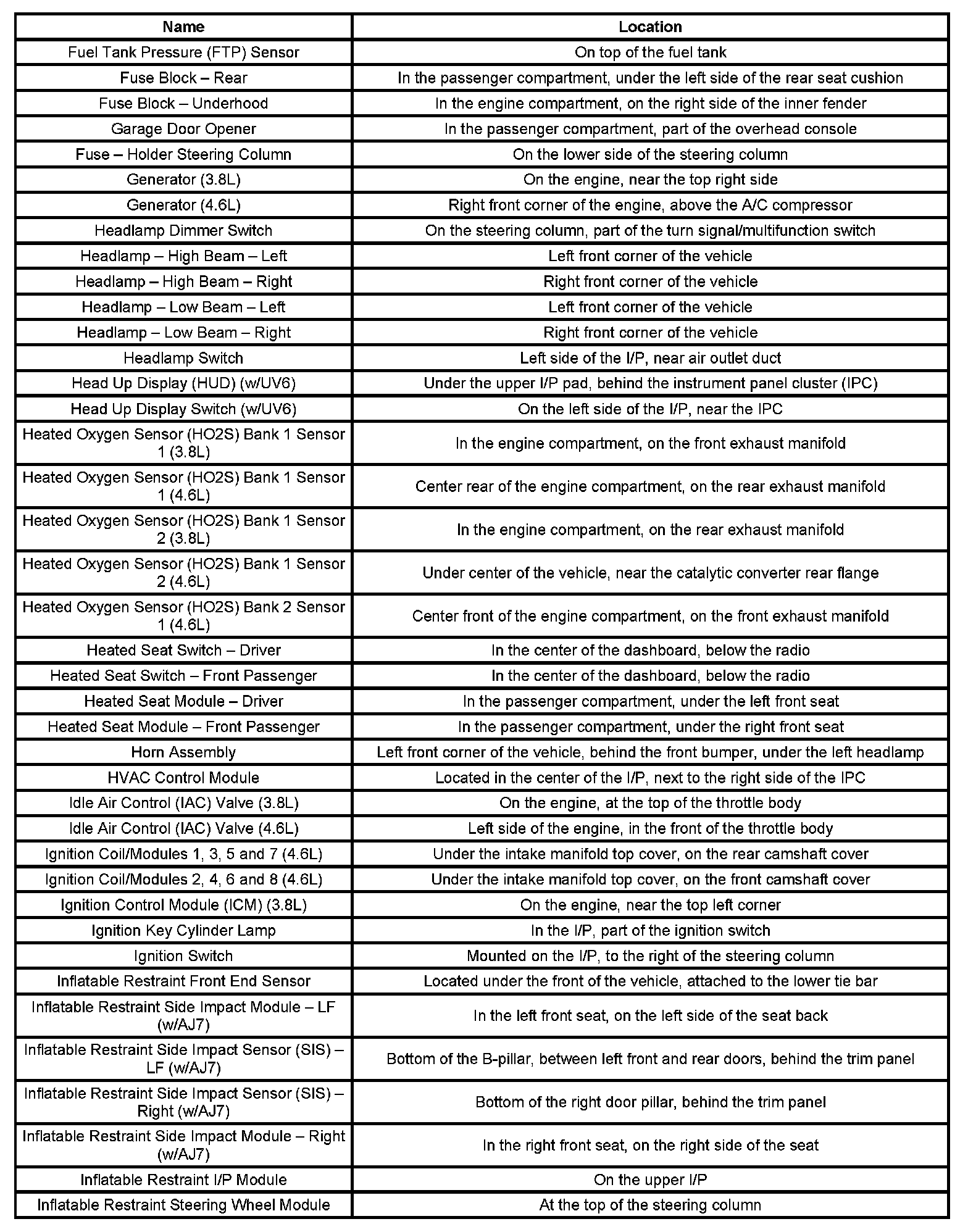

Components



1-2 Sh - Co:




Co - Fu:




Fu - In:




In - Re:




Re - St:




St - Wi:




Ya:
