Bonneville V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Wheel Speed Sensor
Wheel Speed Sensor

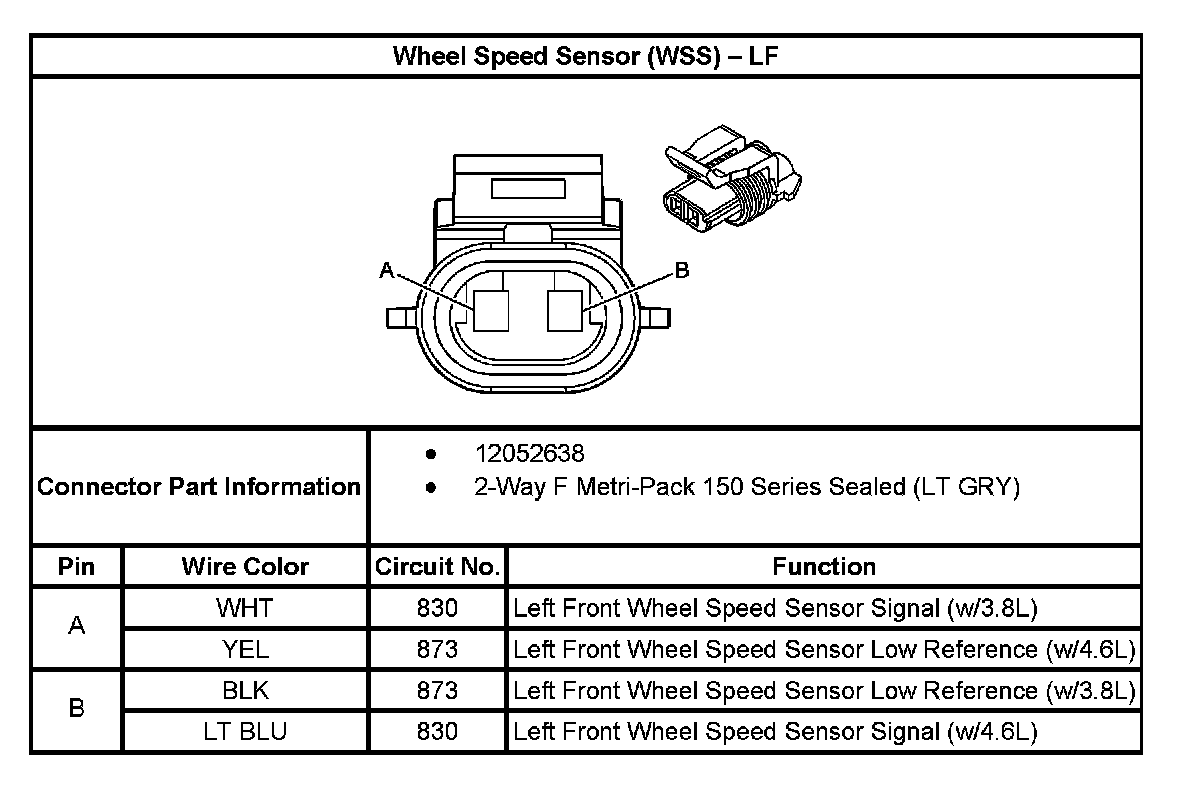

Wheel Speed Sensor (WSS)-LF:

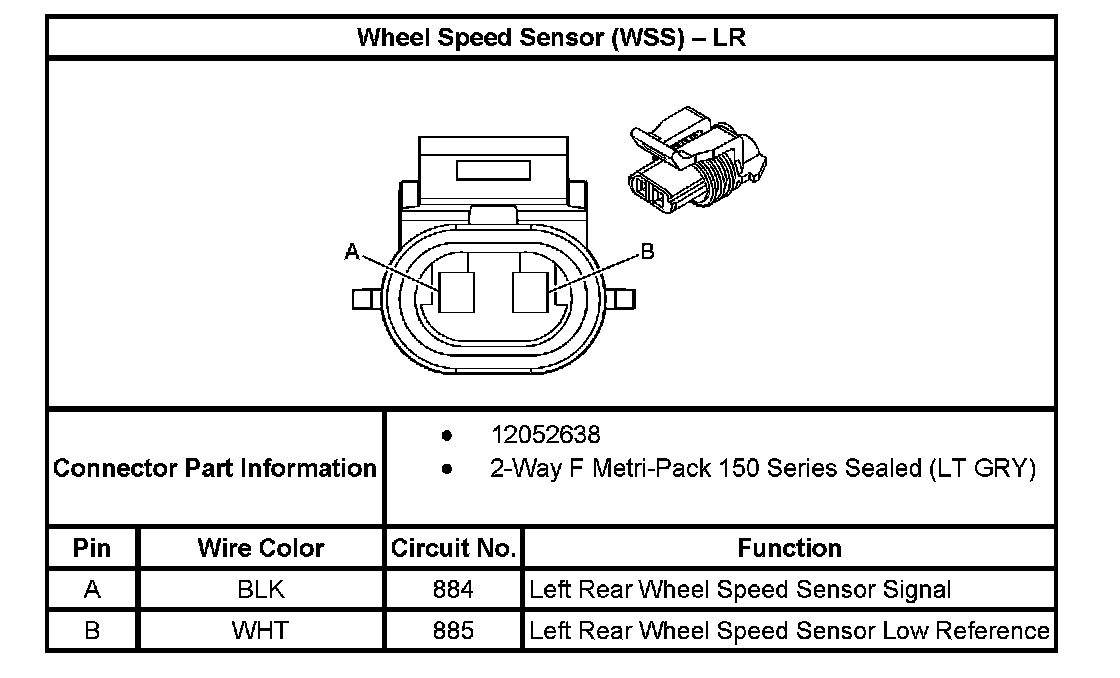

Wheel Speed Sensor (WSS)-LR:

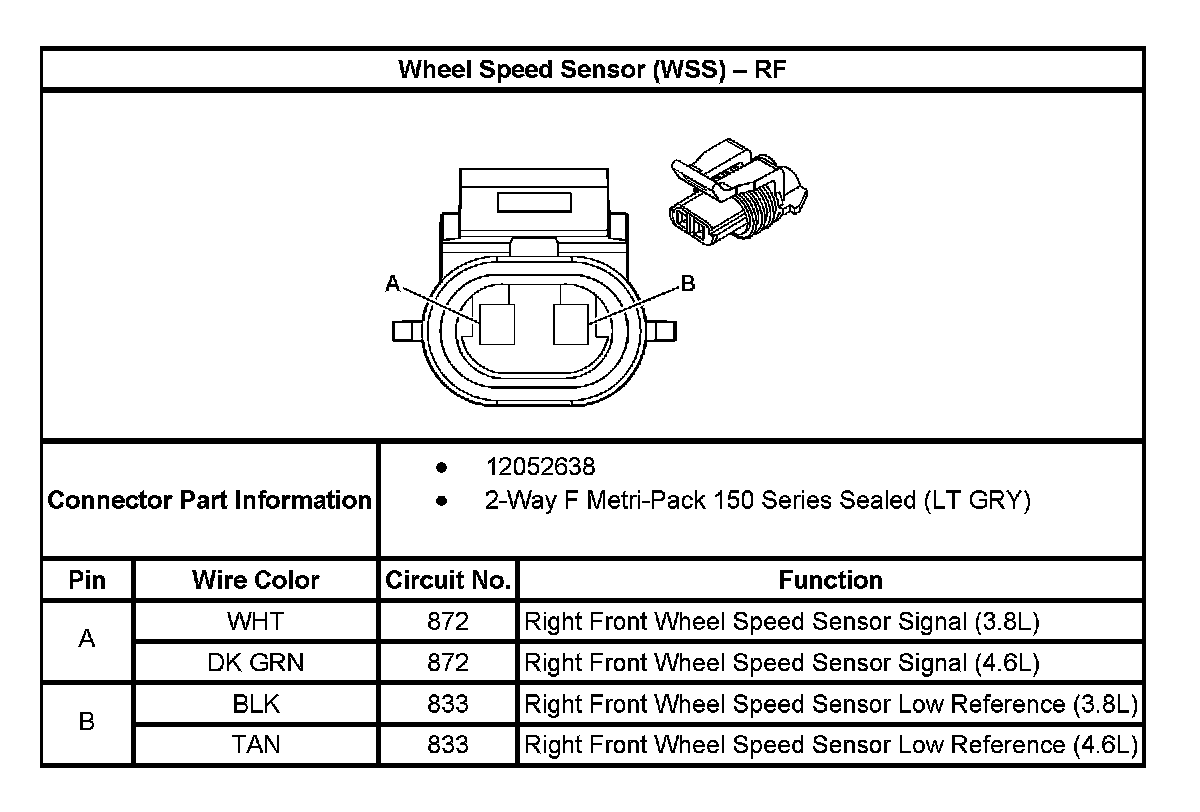

Wheel Speed Sensor (WSS)-RF:

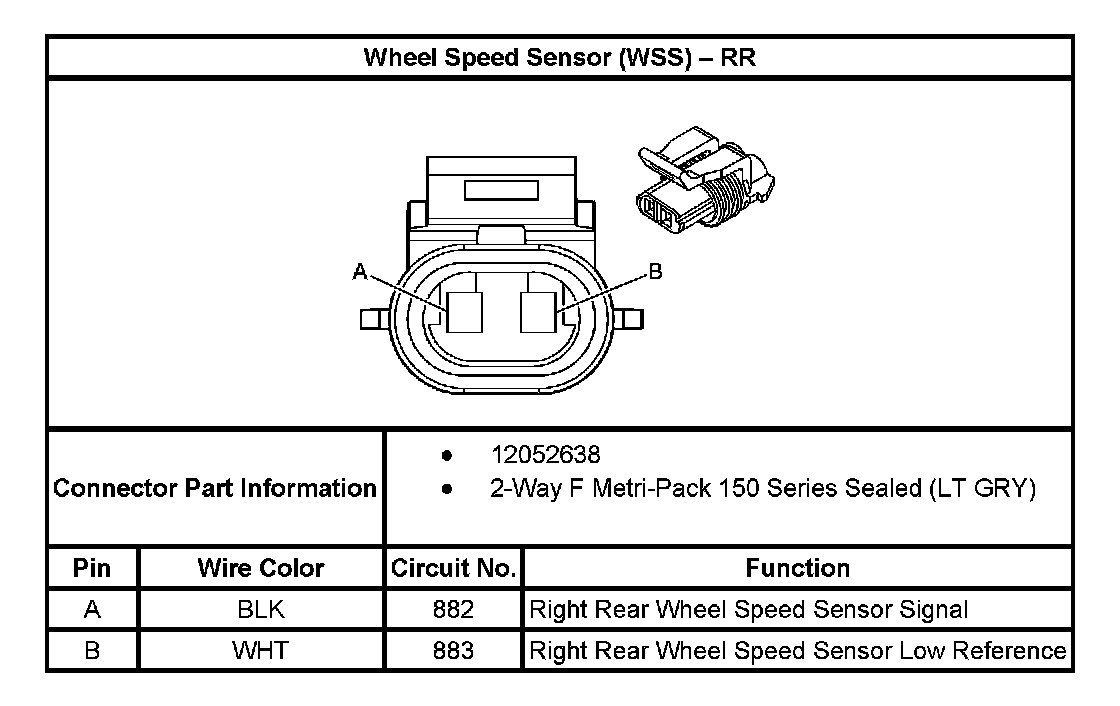

Wheel Speed Sensor (WSS)-RR:
