Brake Light Switch
>>
Stop Lamp Switch/At Shift Lock Control Switch
Stop Lamp Switch/At Shift Lock Control Switch

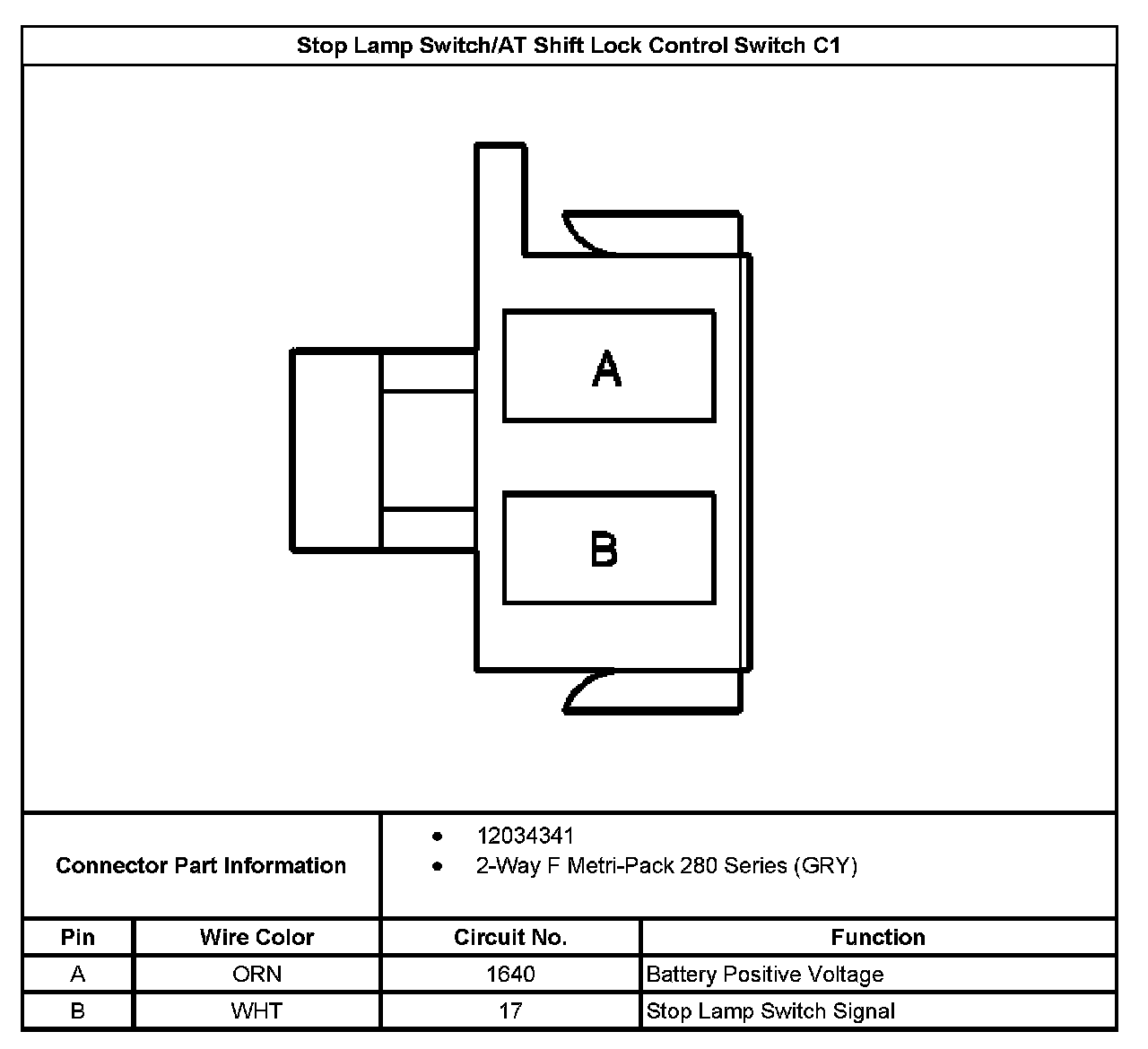

Stop Lamp Switch/AT Shift Lock Control Switch C1:
Stop Lamp Switch/AT Shift Lock Control Switch C2:
