C100
C100

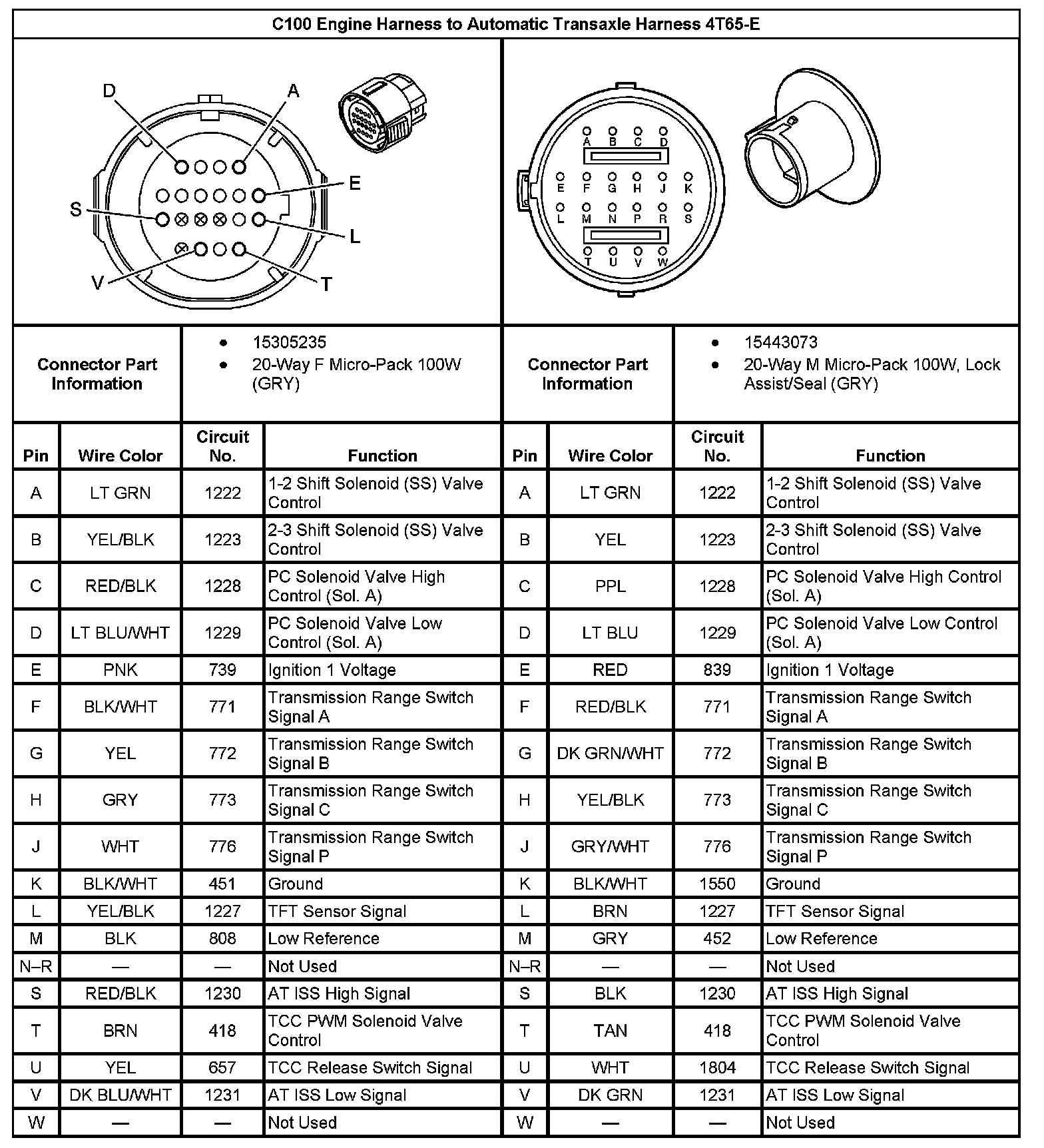

C100 Engine Harness To Automatic Transaxle Harness 4T65-E:

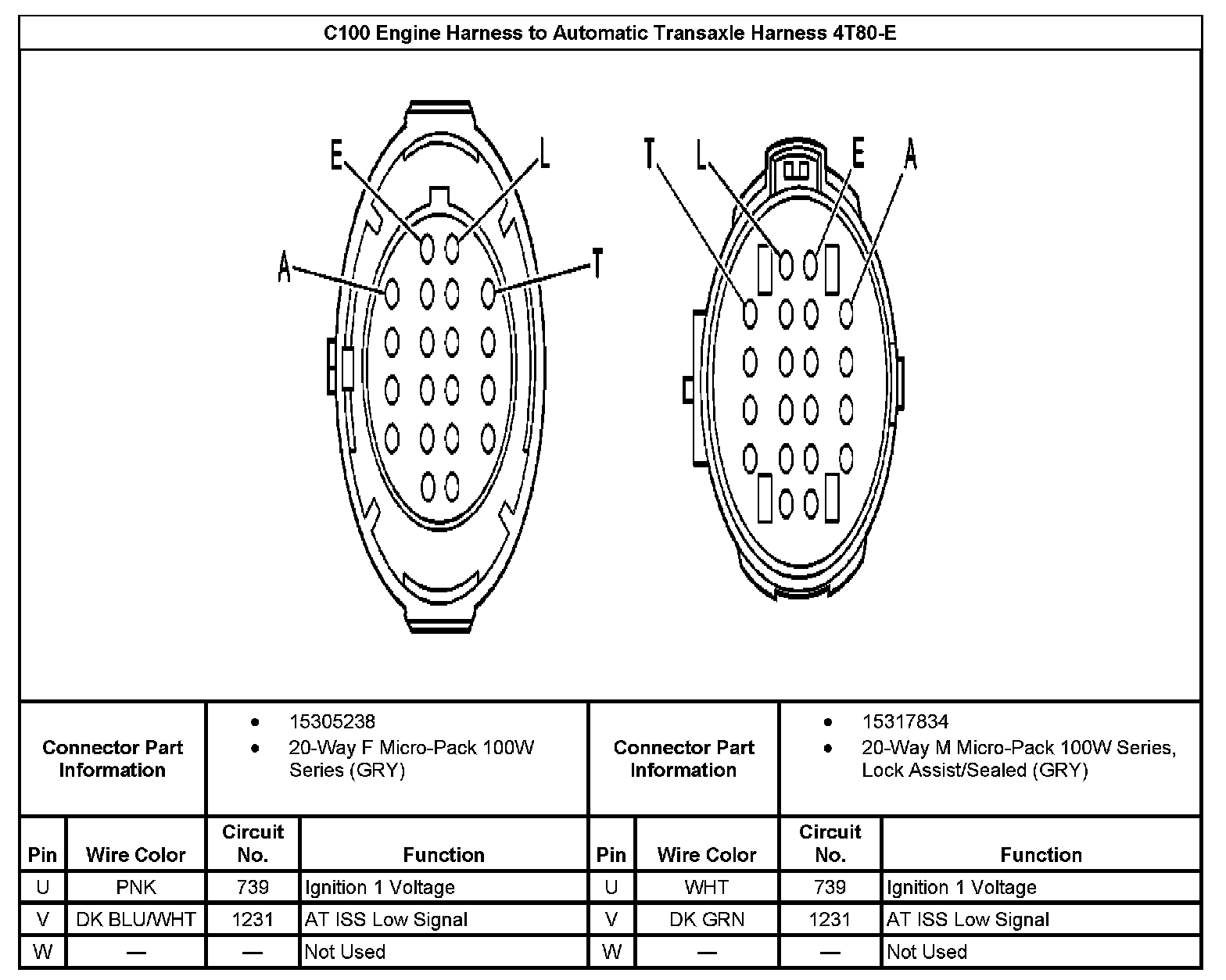

C100 Engine Harness To Automatic Transaxle Harness 4T80-E Part 1:
C100 Engine Harness To Automatic Transaxle Harness 4T80-E Part 2:
