C101

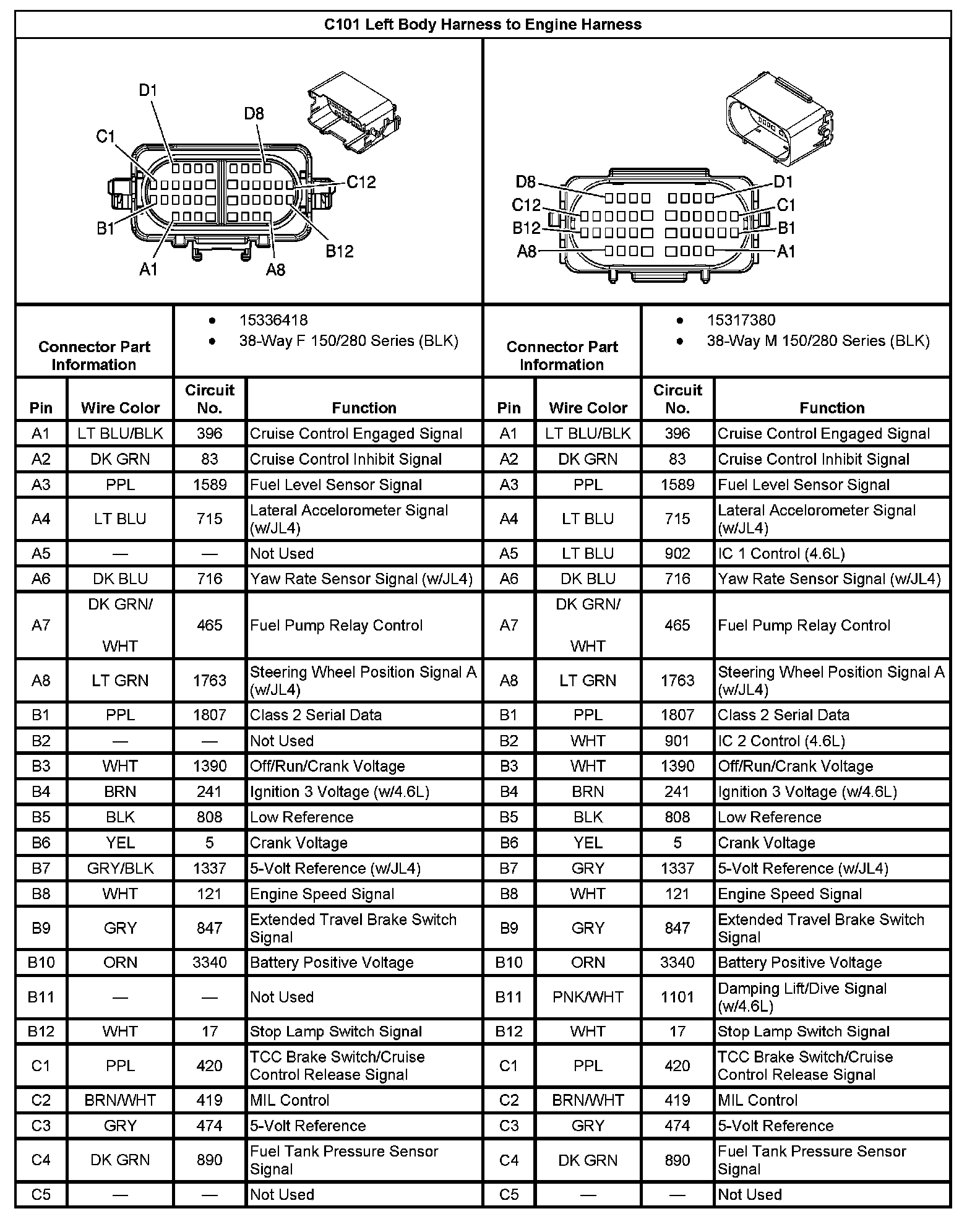

C101 Left Body Harness To Engine Harness Part 1:

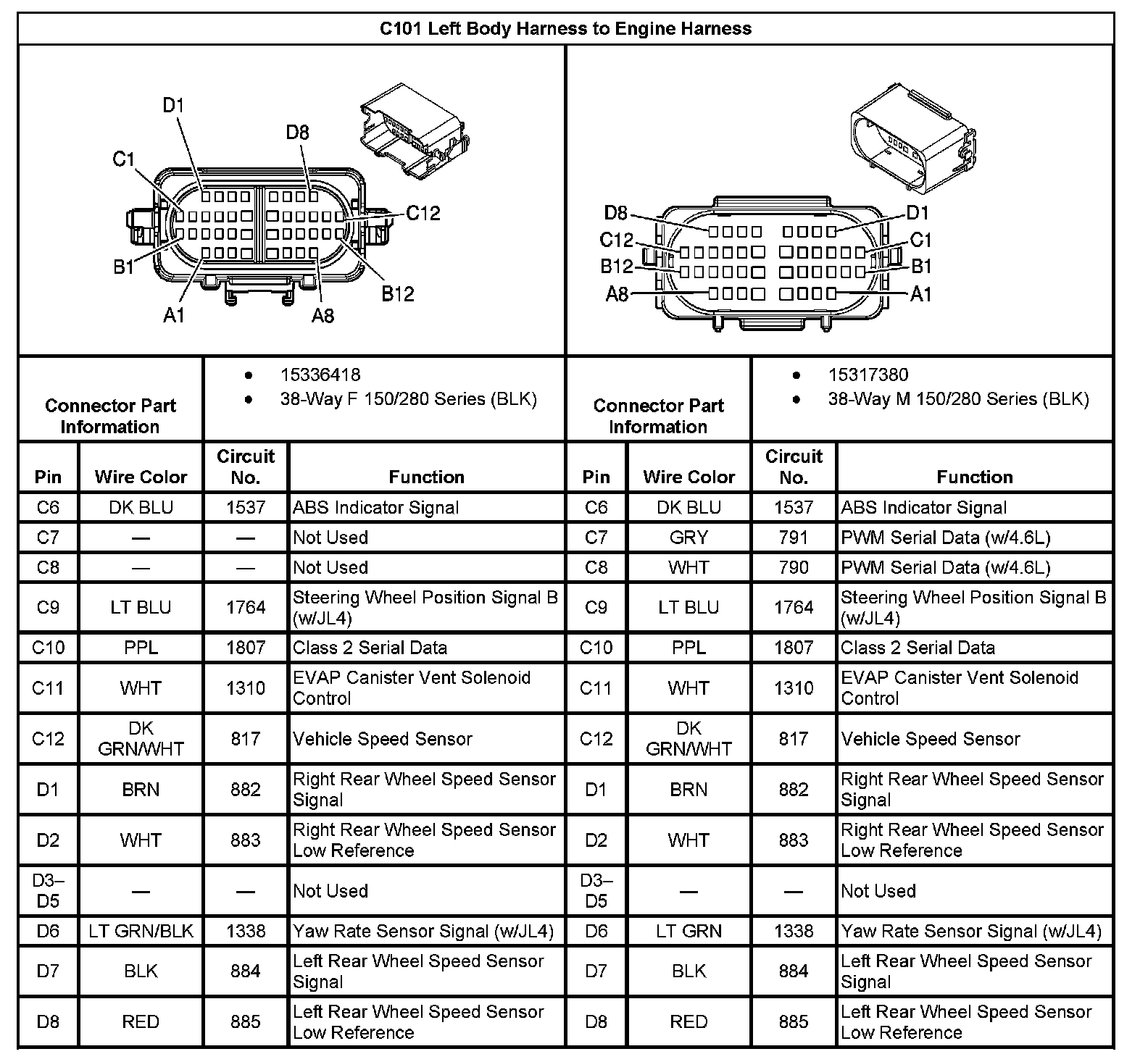

C101 Left Body Harness To Engine Harness Part 2:
