Home
>>
Pontiac
>>
2005
>>
Bonneville V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C200 - C299
>>
C200
C200

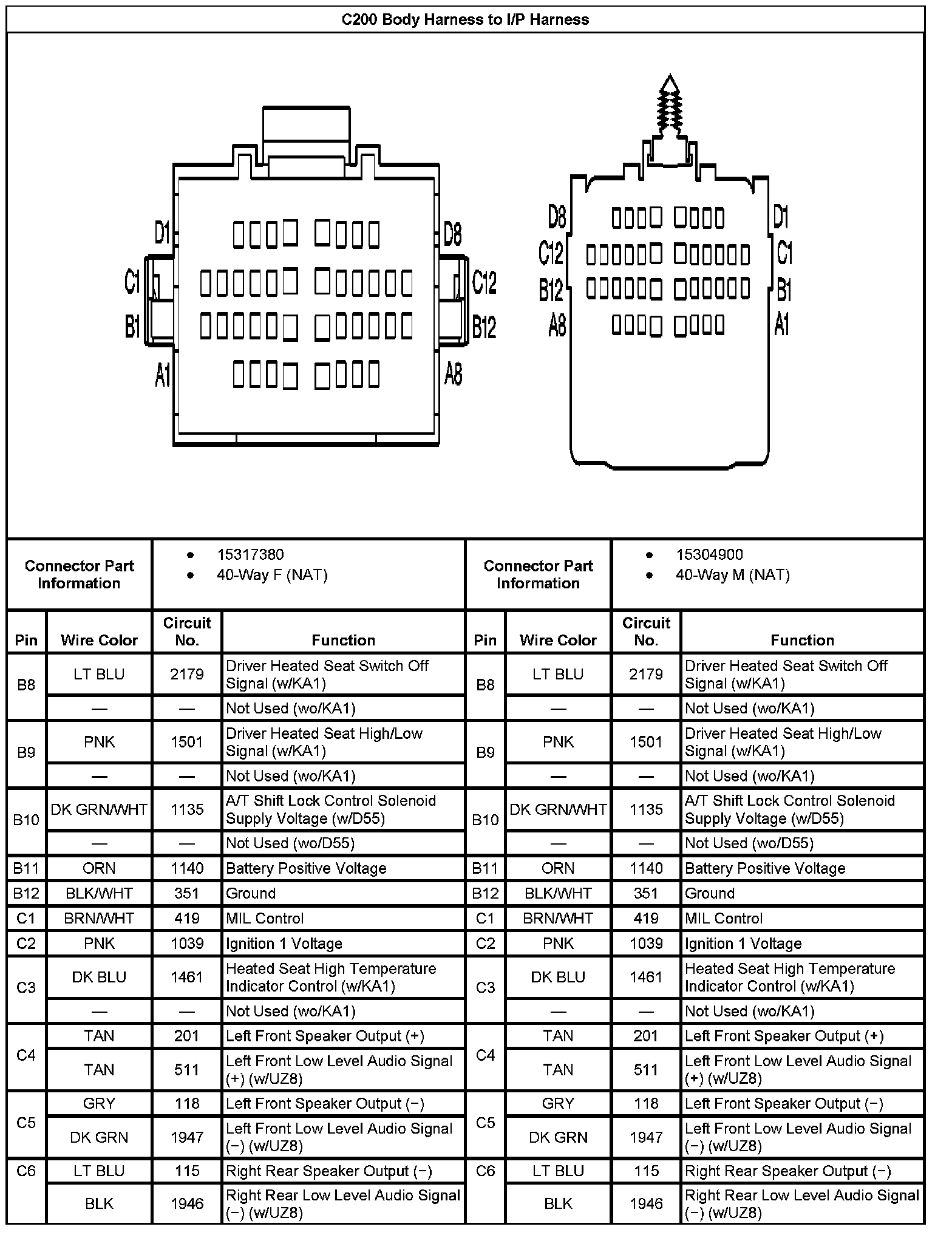

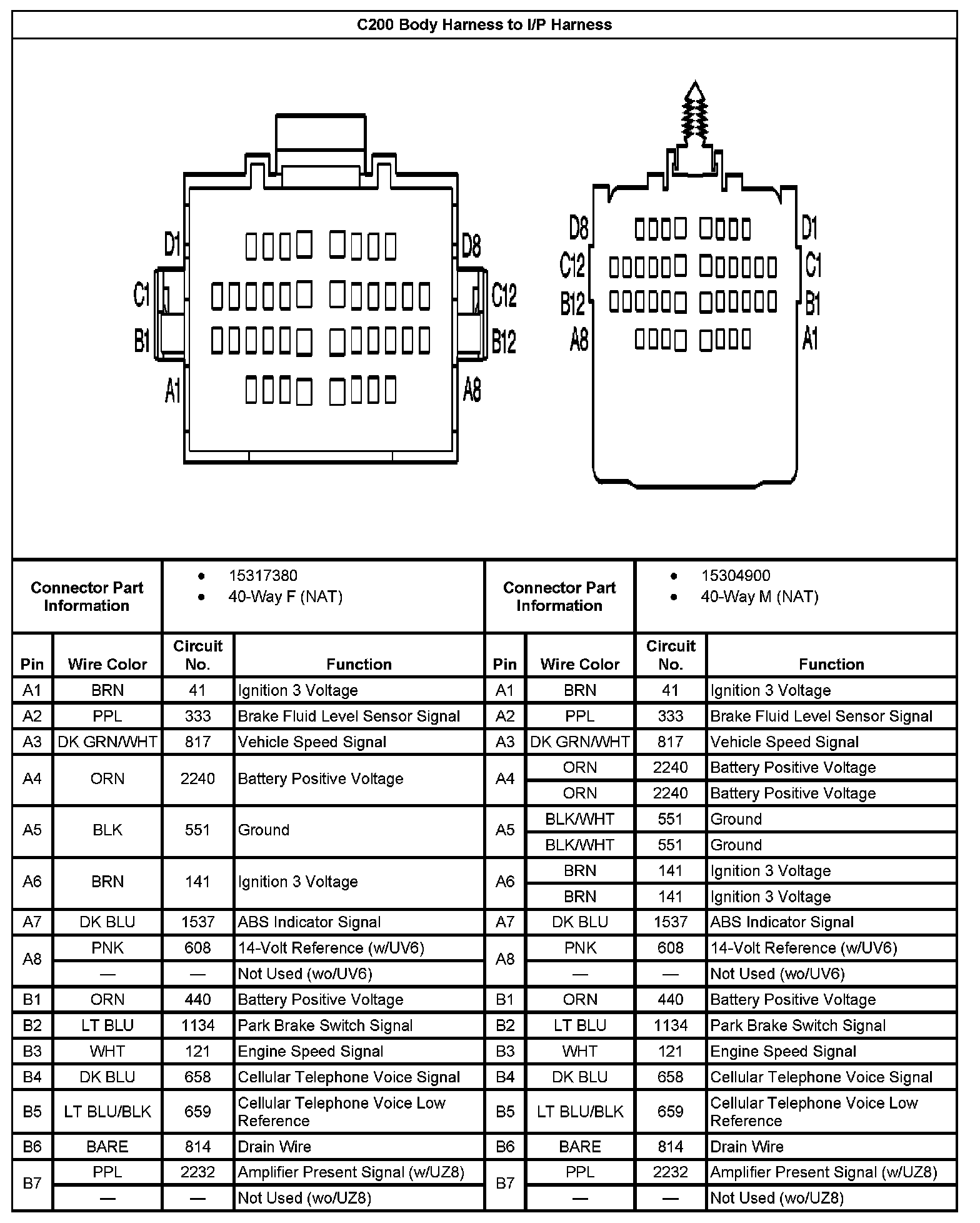

C200 Body Harness To I/P Harness Part 1:
C200 Body Harness To I/P Harness Part 2:
C200 Body Harness To I/P Harness Part 3:
C200 Body Harness To I/P Harness Part 4:
