Home
>>
Pontiac
>>
2005
>>
Bonneville V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C400 - C499
>>
C406
C406

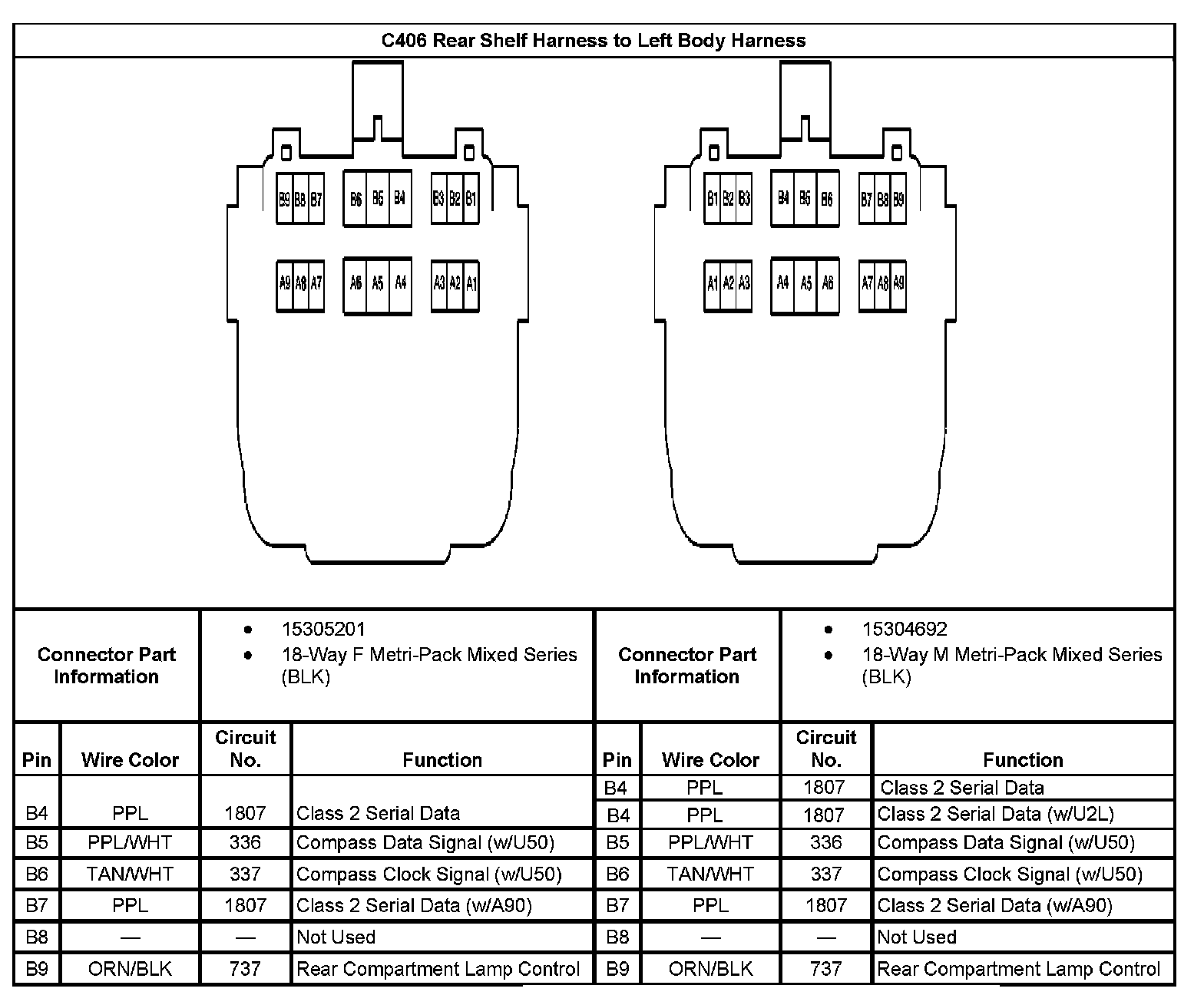

C406 Rear Shelf Harness To Left Body Harness Part 1:

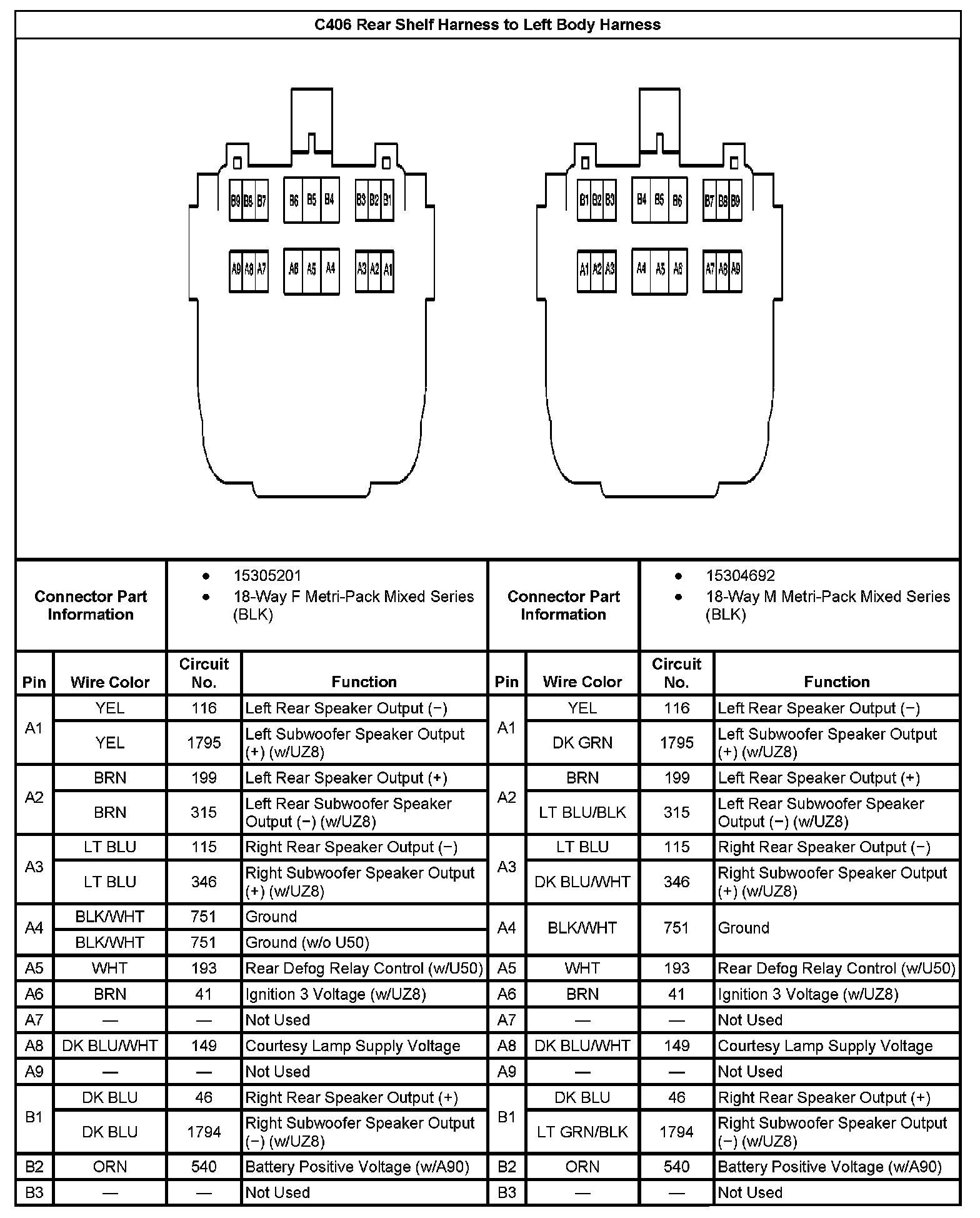

C406 Rear Shelf Harness To Left Body Harness Part 2:
