Home >> Pontiac >> 2005 >> Bonneville V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cooling System >> System Diagram

System Diagram

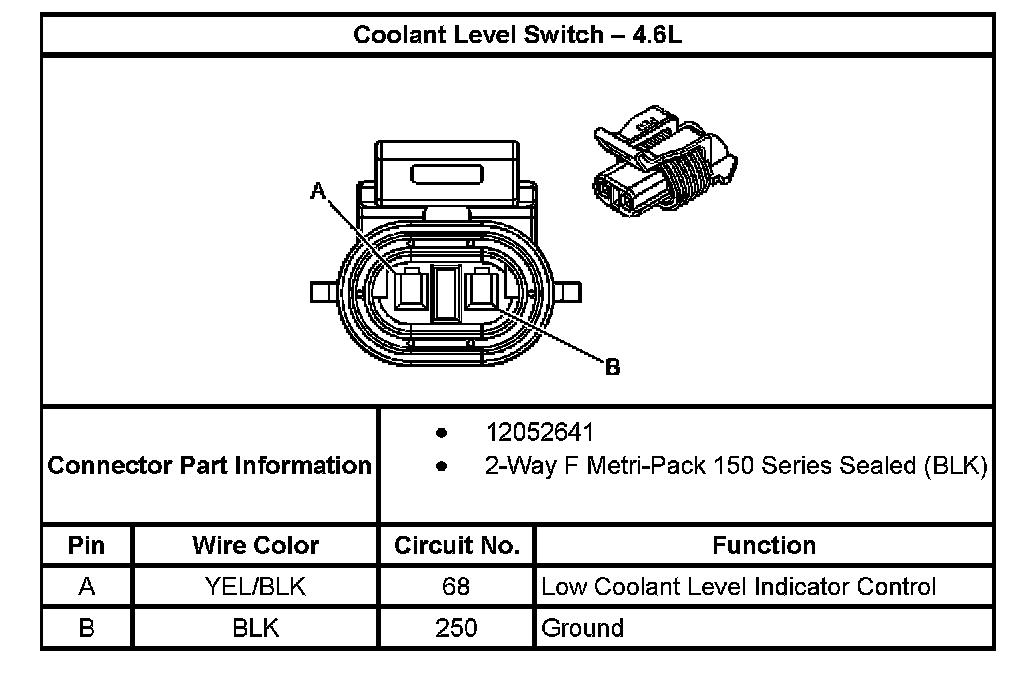

Coolant Level Switch - 4.6L:

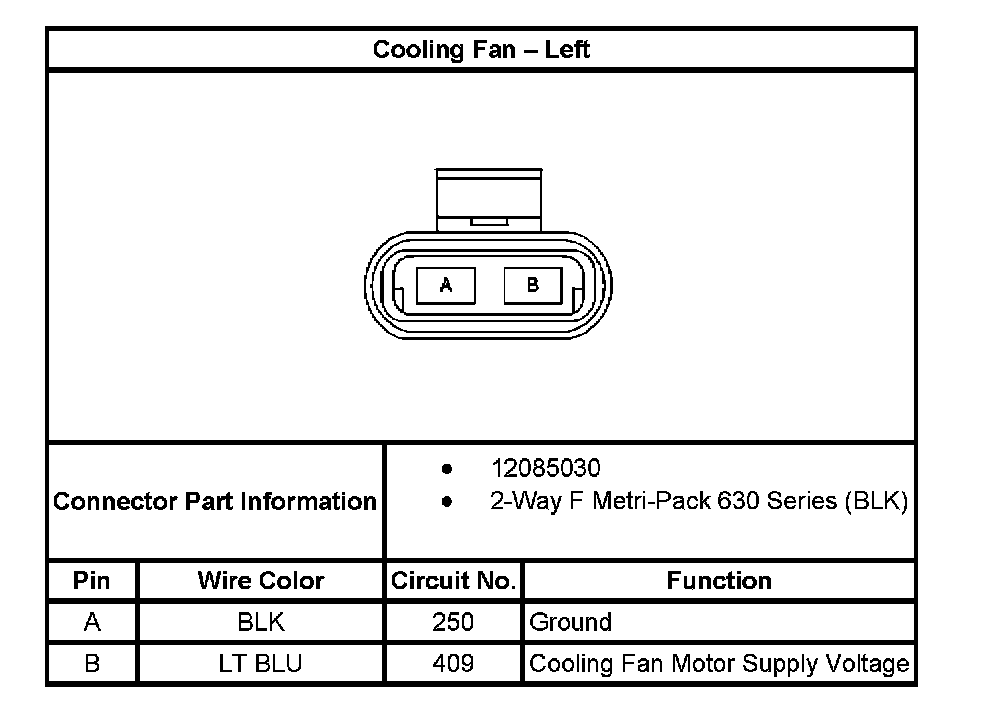

Cooling Fan - Left:

Cooling Fan - Right:
