Heads Up Display Unit
>>
Head Up Display (HUD) Switch (With RPO Code UV6)
Head Up Display (HUD) Switch (With RPO Code UV6)

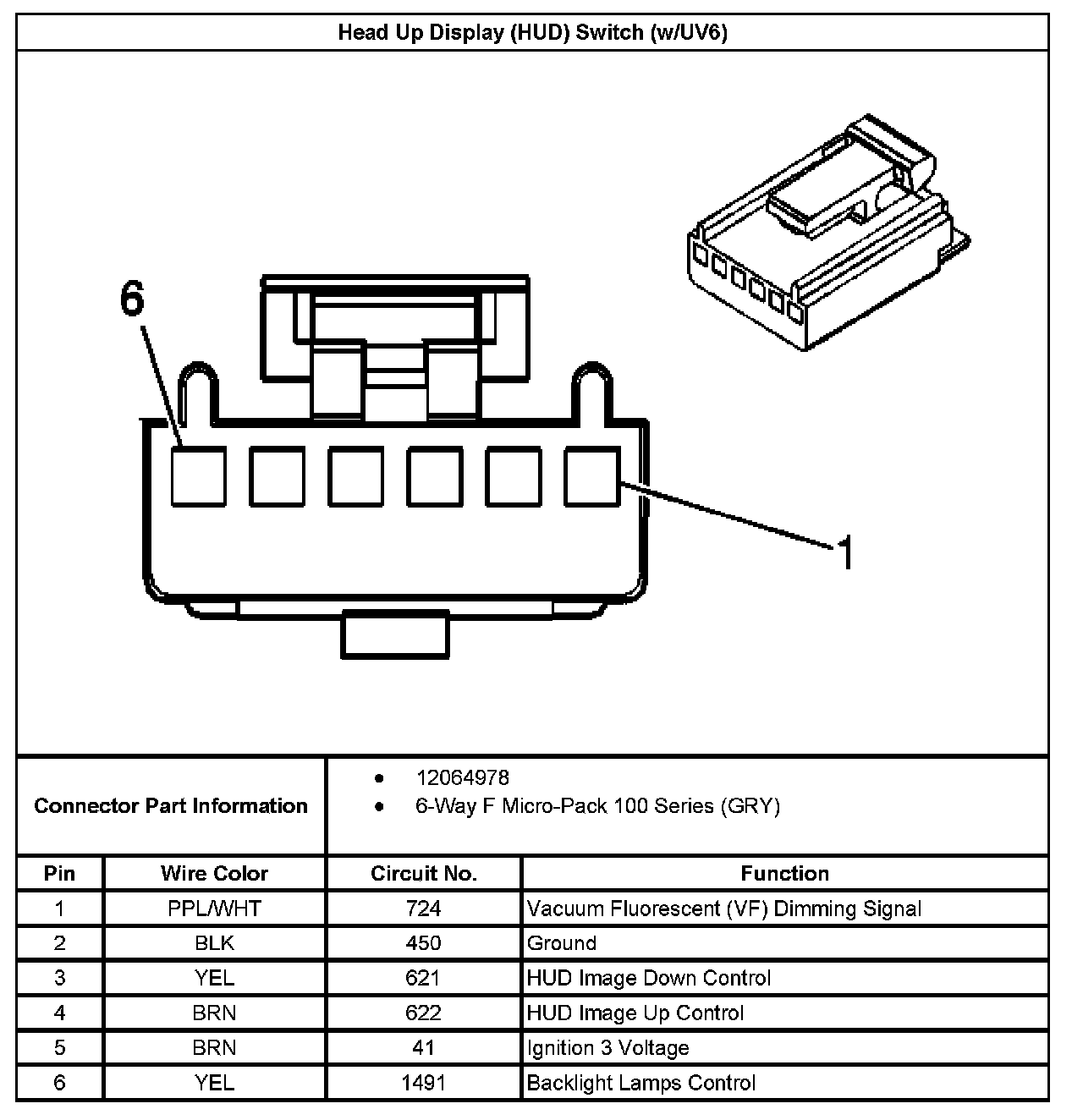

Head Up Display (HUD) Switch (With RPO Code UV6):
