Pontiac
>>
2005
>>
Bonneville V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Actuator
Power Door Lock Actuator

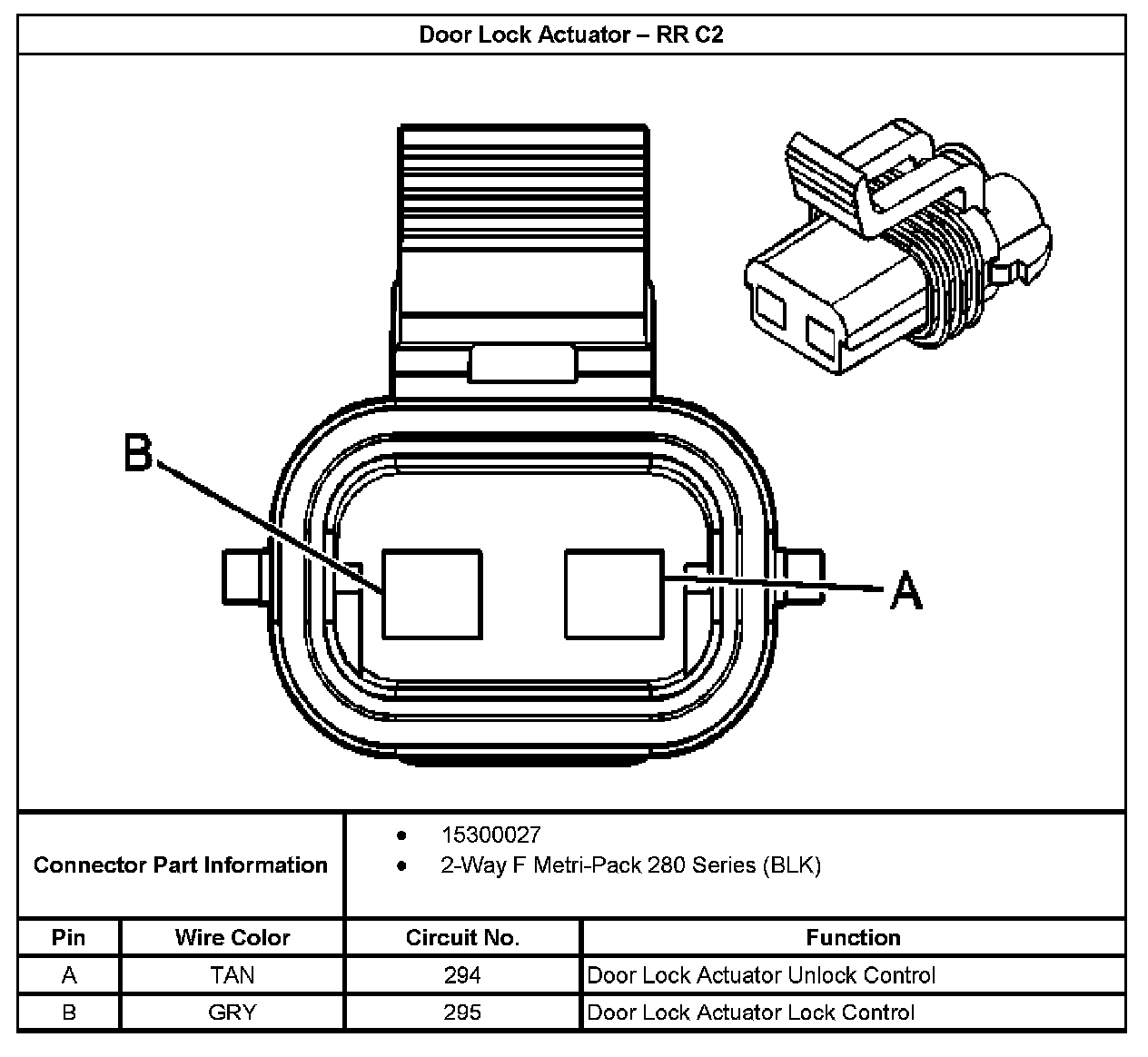

Door Latch Assembly - RR C2:
