Home >> Pontiac >> 2005 >> Bonneville V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> RR Subwoofer (With RPO Code UZ8)

RR Subwoofer (With RPO Code UZ8)

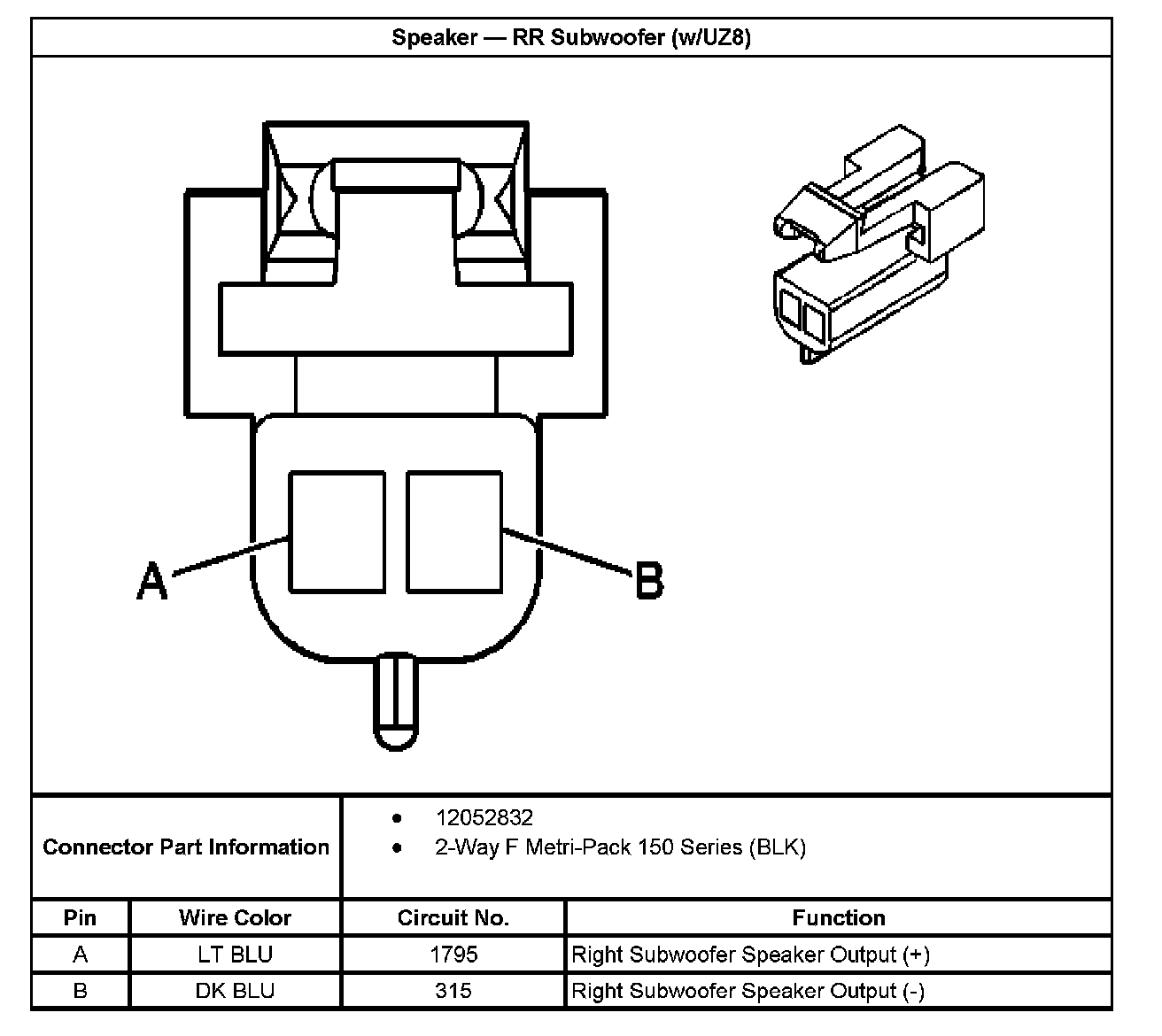

Speaker - RR Subwoofer (With RPO Code UZ8):
