Home >> Pontiac >> 2005 >> Bonneville V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering >> Power Steering Pressure Control Valve

Power Steering Pressure Control Valve

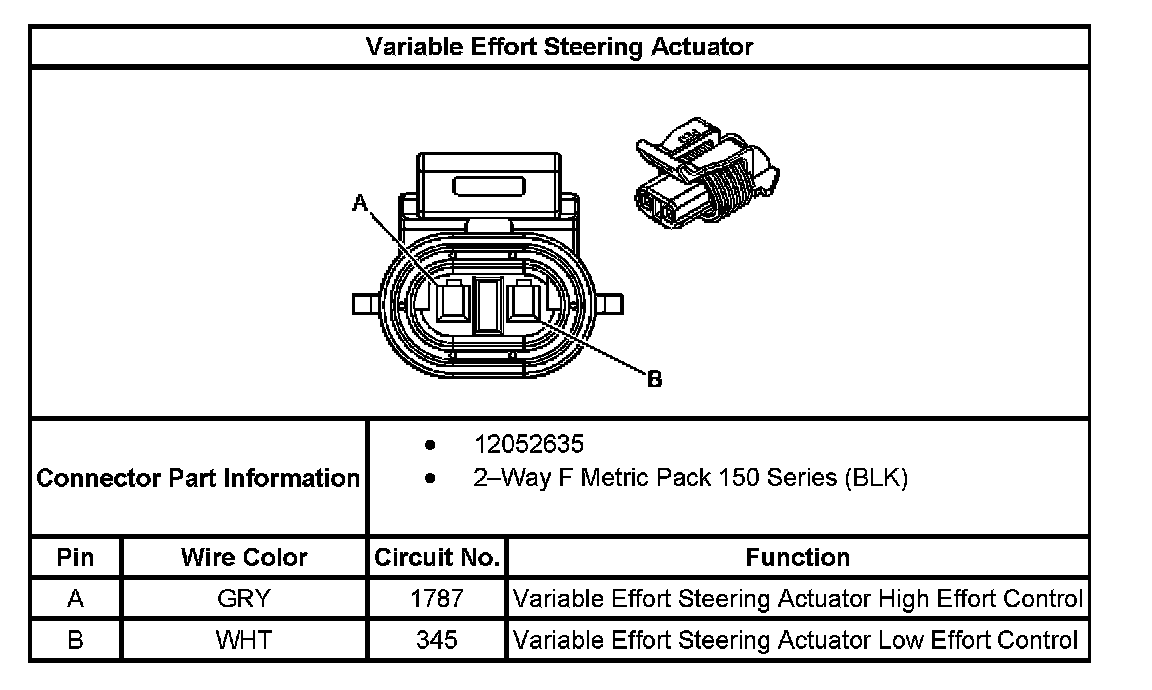

Variable Effort Steering Actuator:
