4T65-E Automatic Transaxle

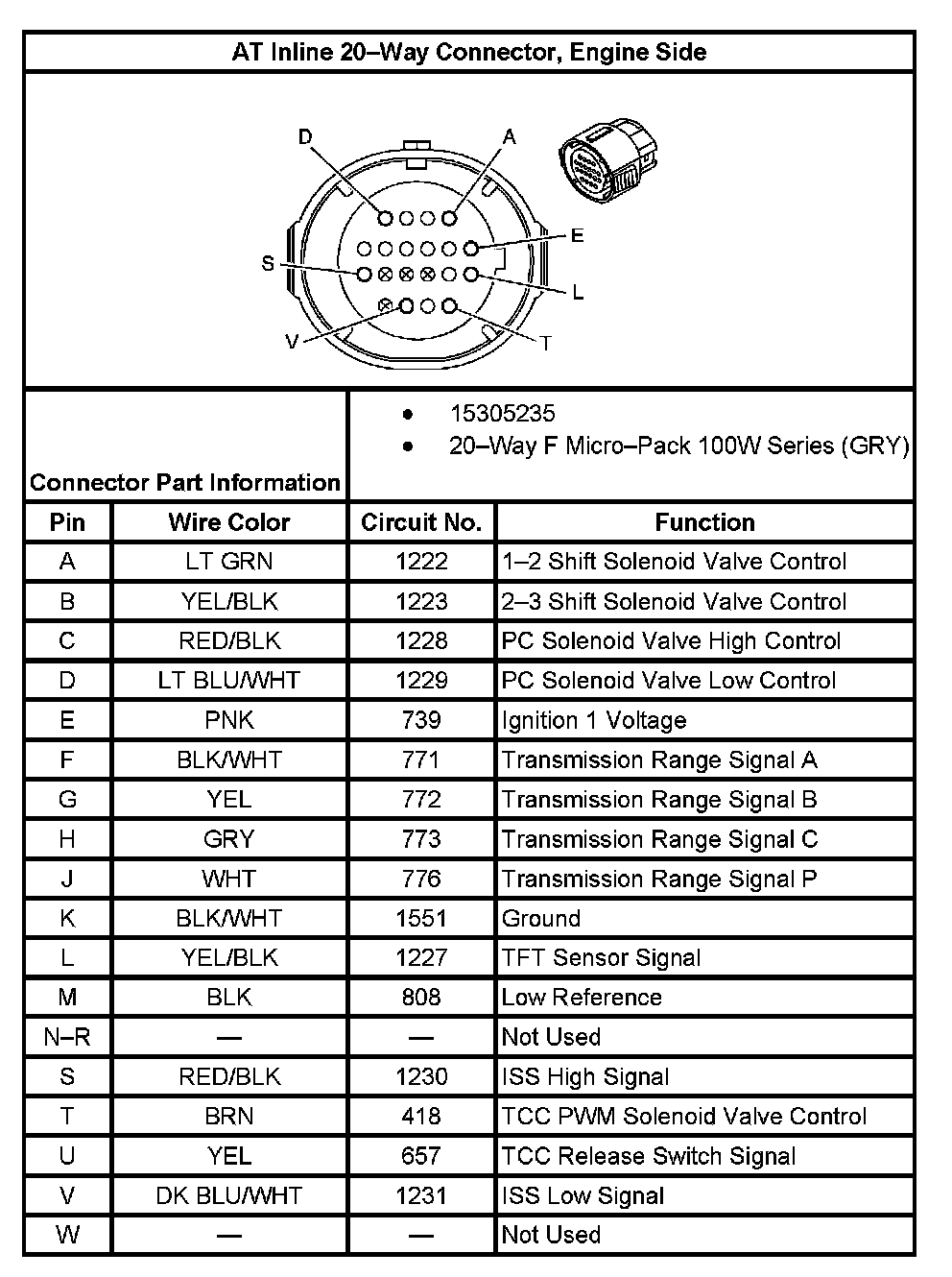

Automatic Transmission Inline 20-Way Connector End View:

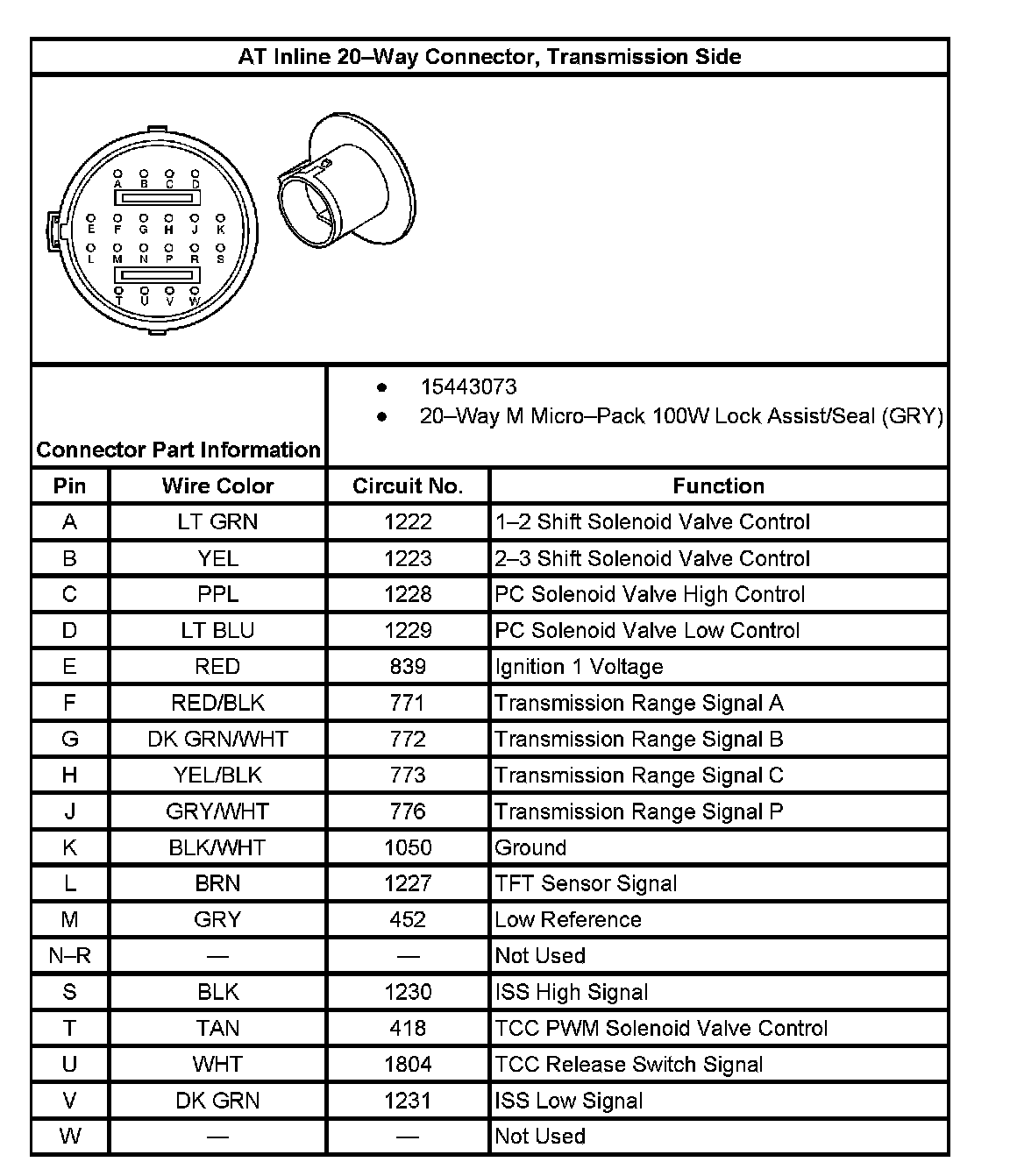

AT Inline 20-Way Connector, Transmission Side:

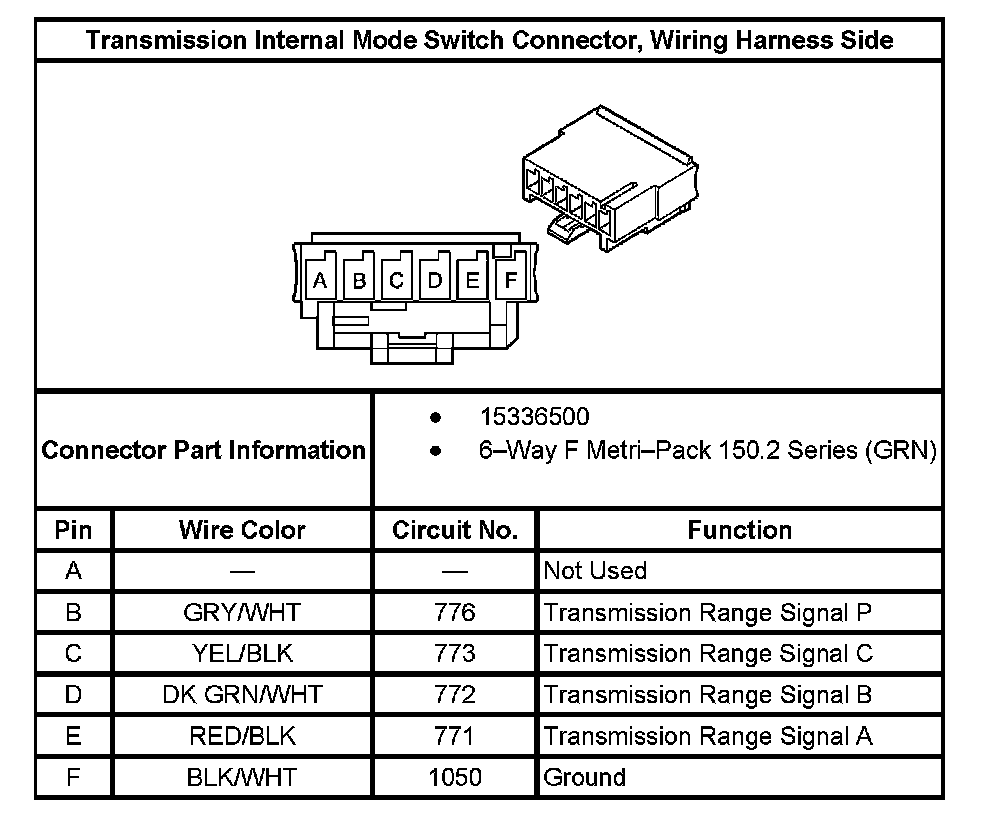

Transmission Internal Mode Switch Connector, Wiring Harness Side:
