4T80-E Automatic Transaxle

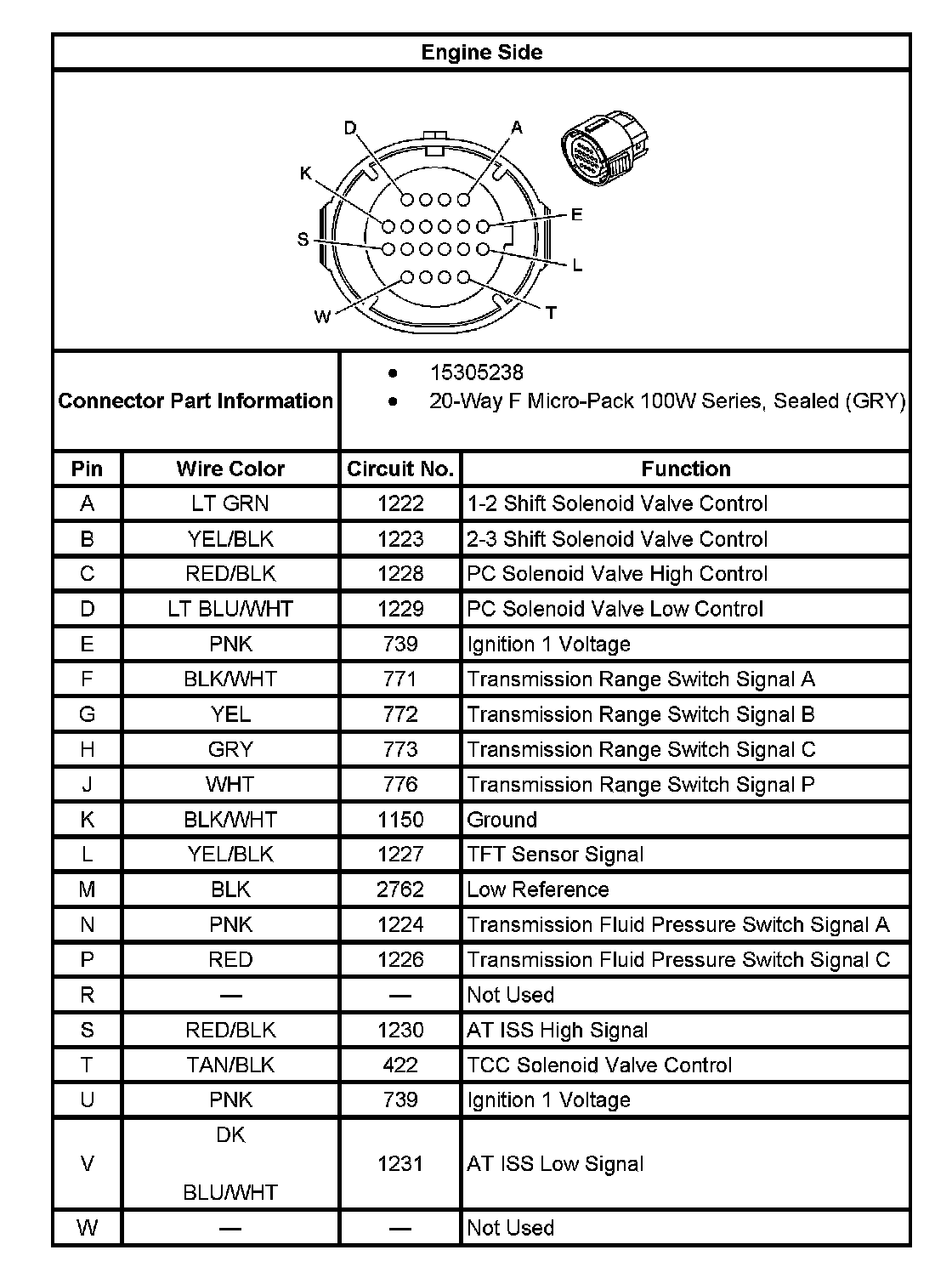

Automatic Transmission Inline 20-Way Connector End View (Engine Side):

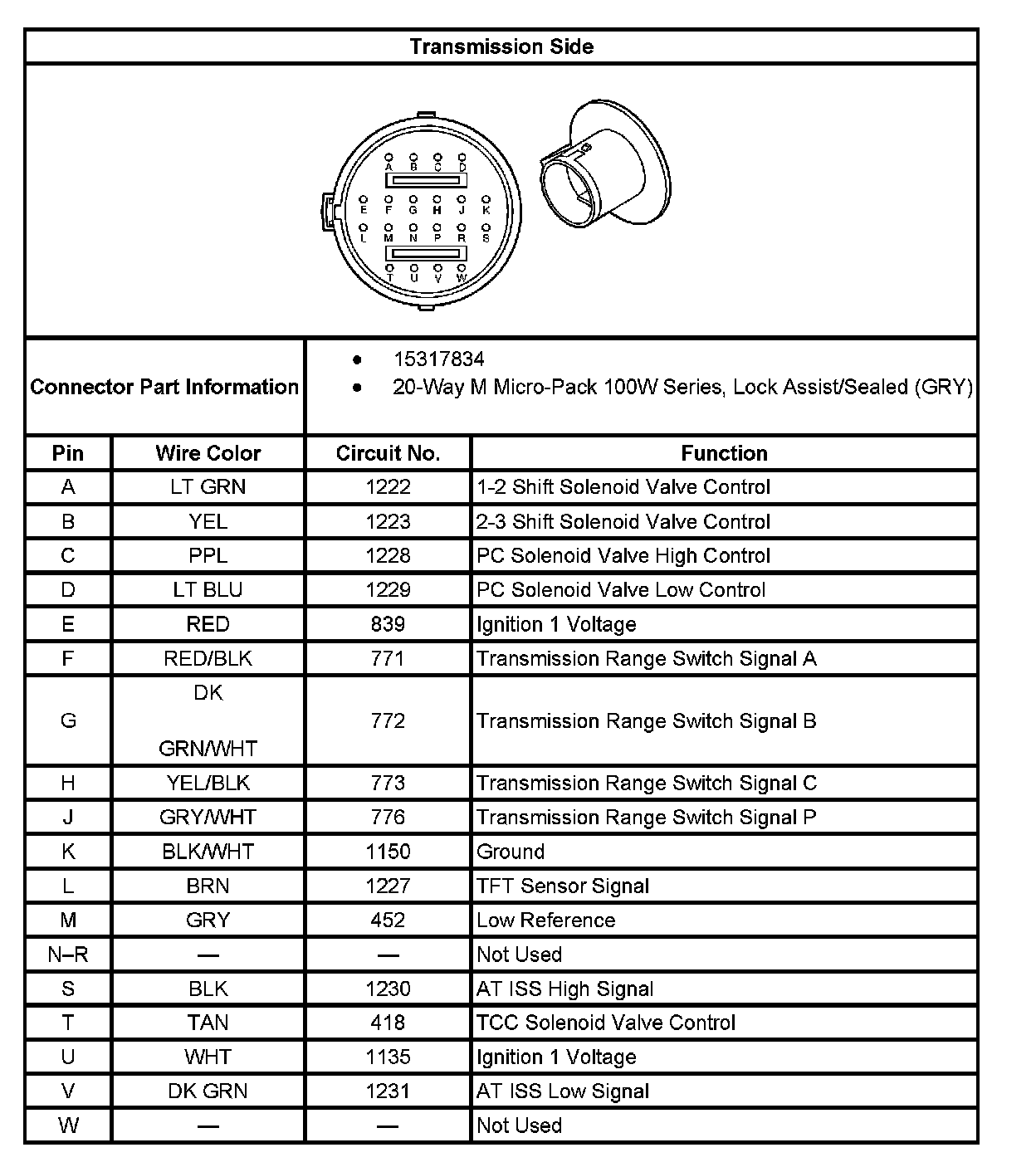

Automatic Transmission Inline 20-Way Connector End View (Transmission Side):

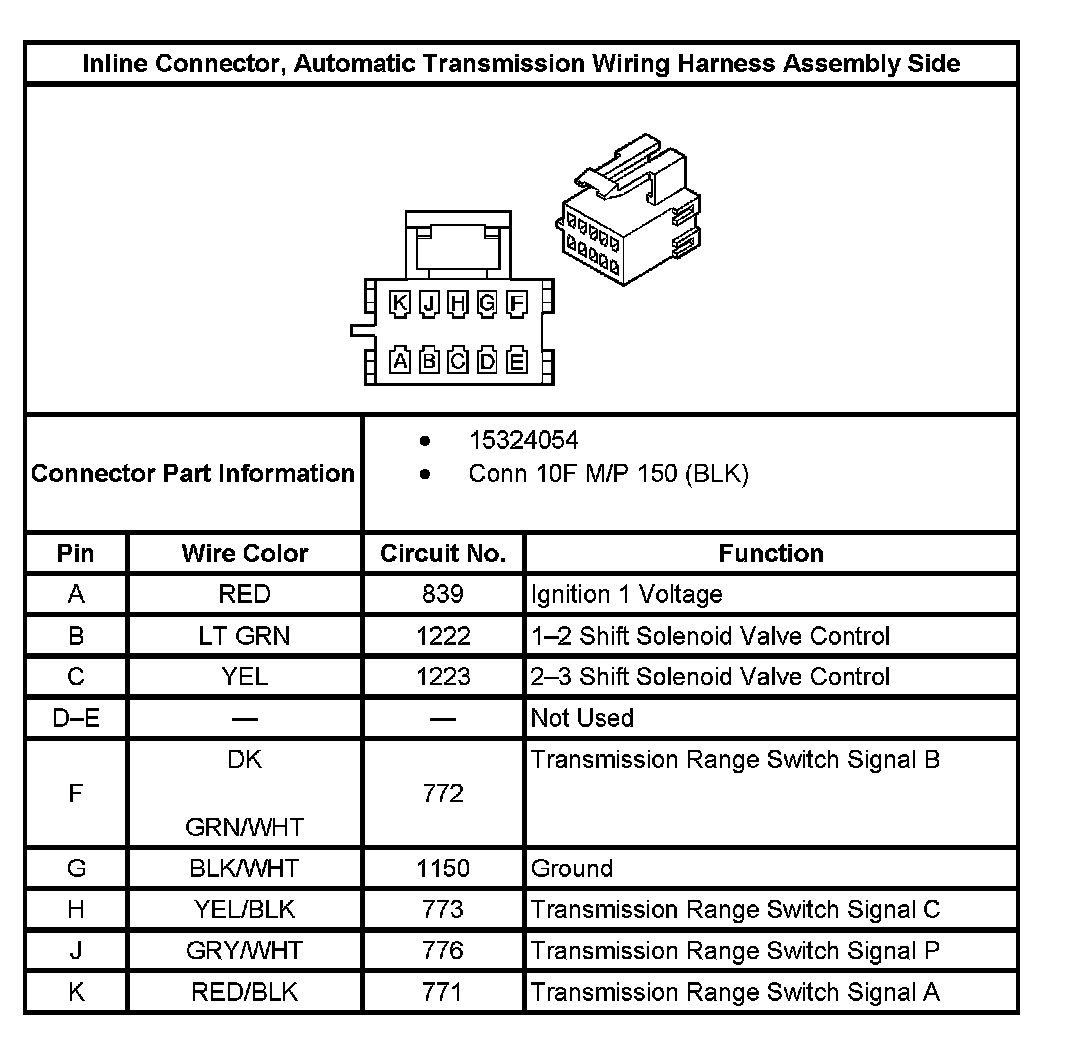

Inline Connector, Automatic Transmission Wiring Harness Assembly Side:

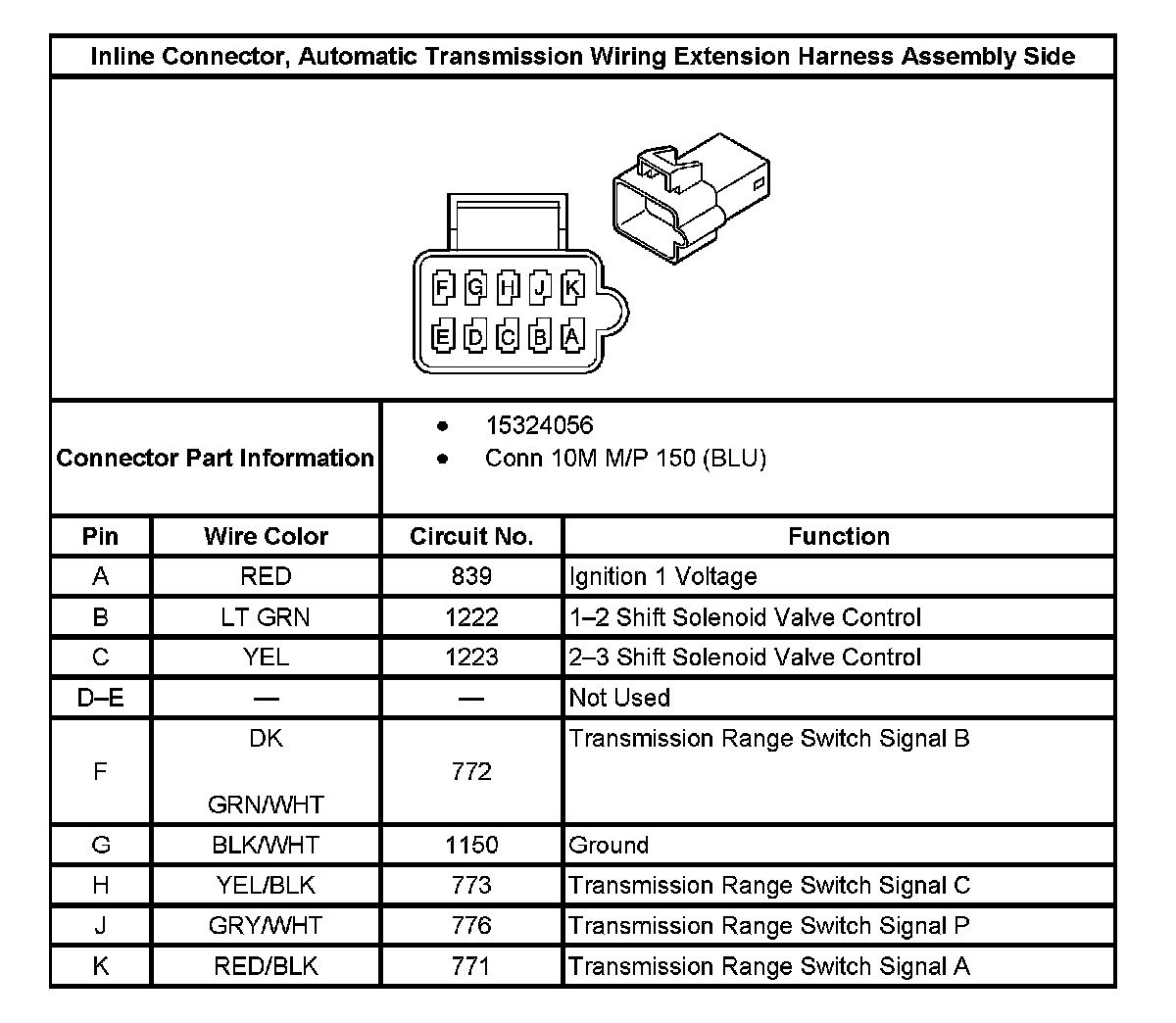

Inline Connector, Automatic Transmission Wiring Extension Harness Assembly Side:

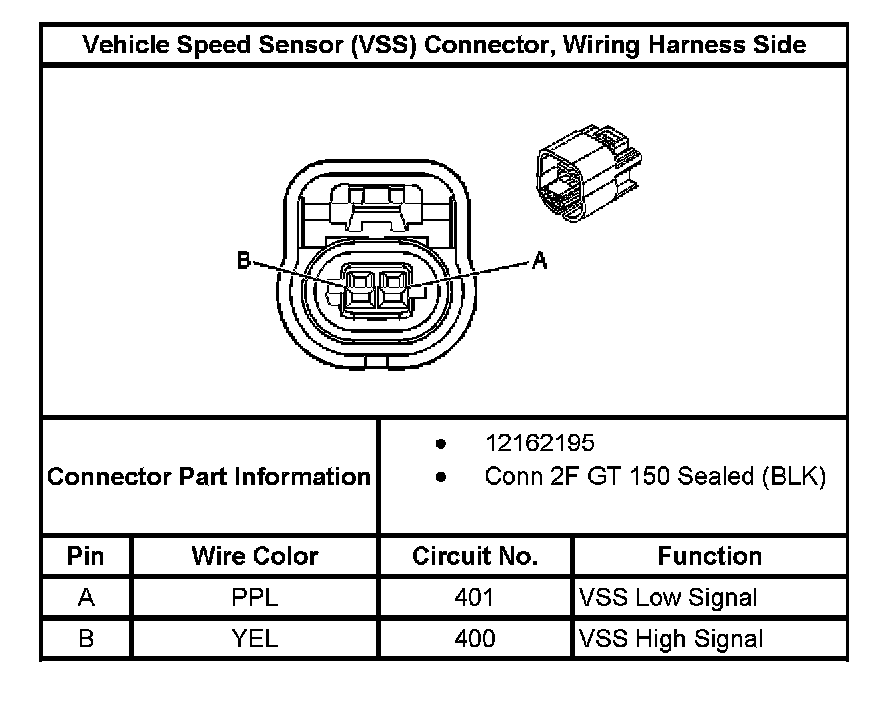

Vehicle Speed Sensor (VSS) Connector, Wiring Harness Side:
