Suspension Control ( Automatic - Electronic )

Automatic Level Control Suspension Diagrams

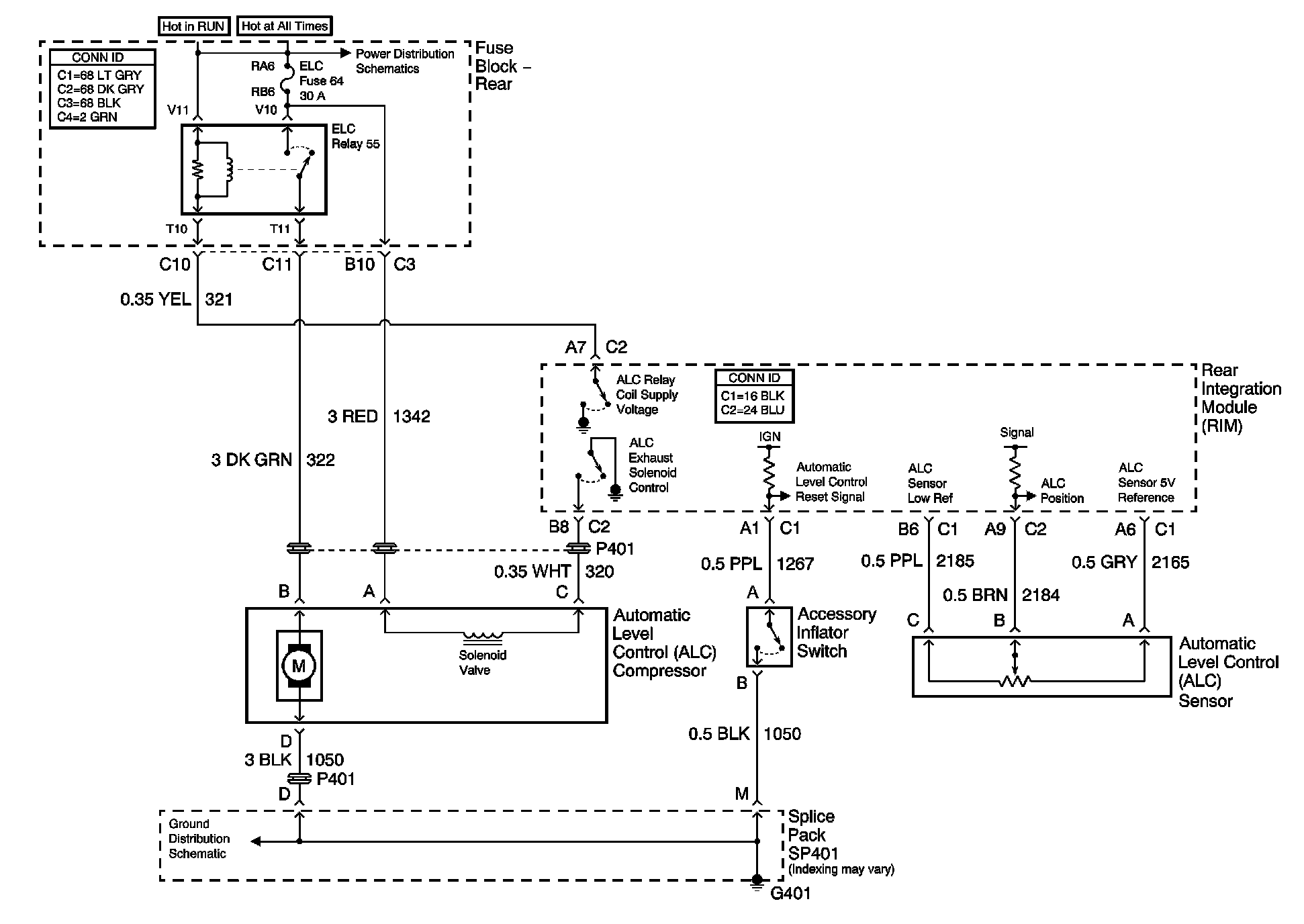

Automatic Level Control Suspension Diagrams:

Locations: The locations for the connectors, Ground,Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
