Electrical Diagrams

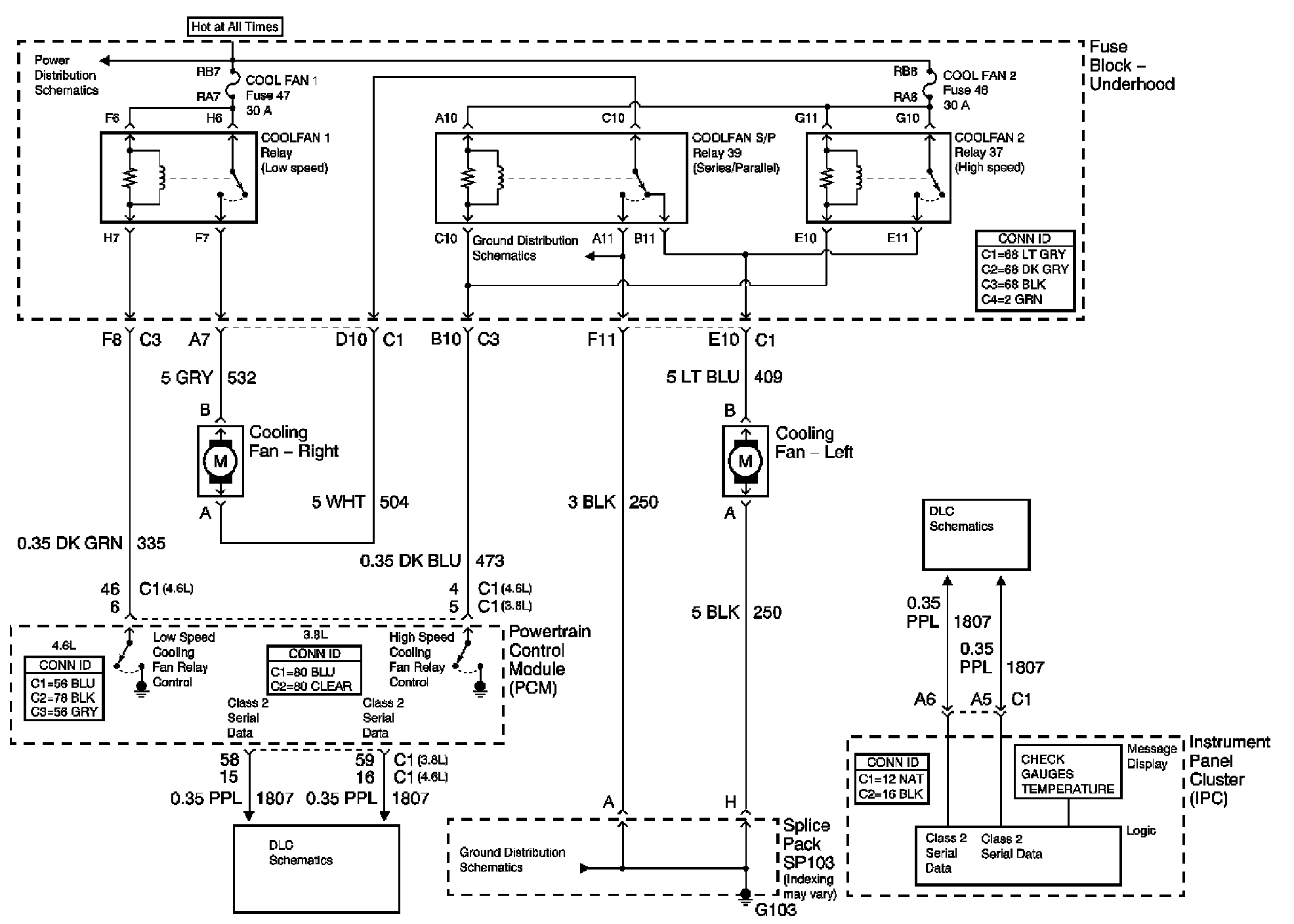

Engine Cooling Fans and Relays

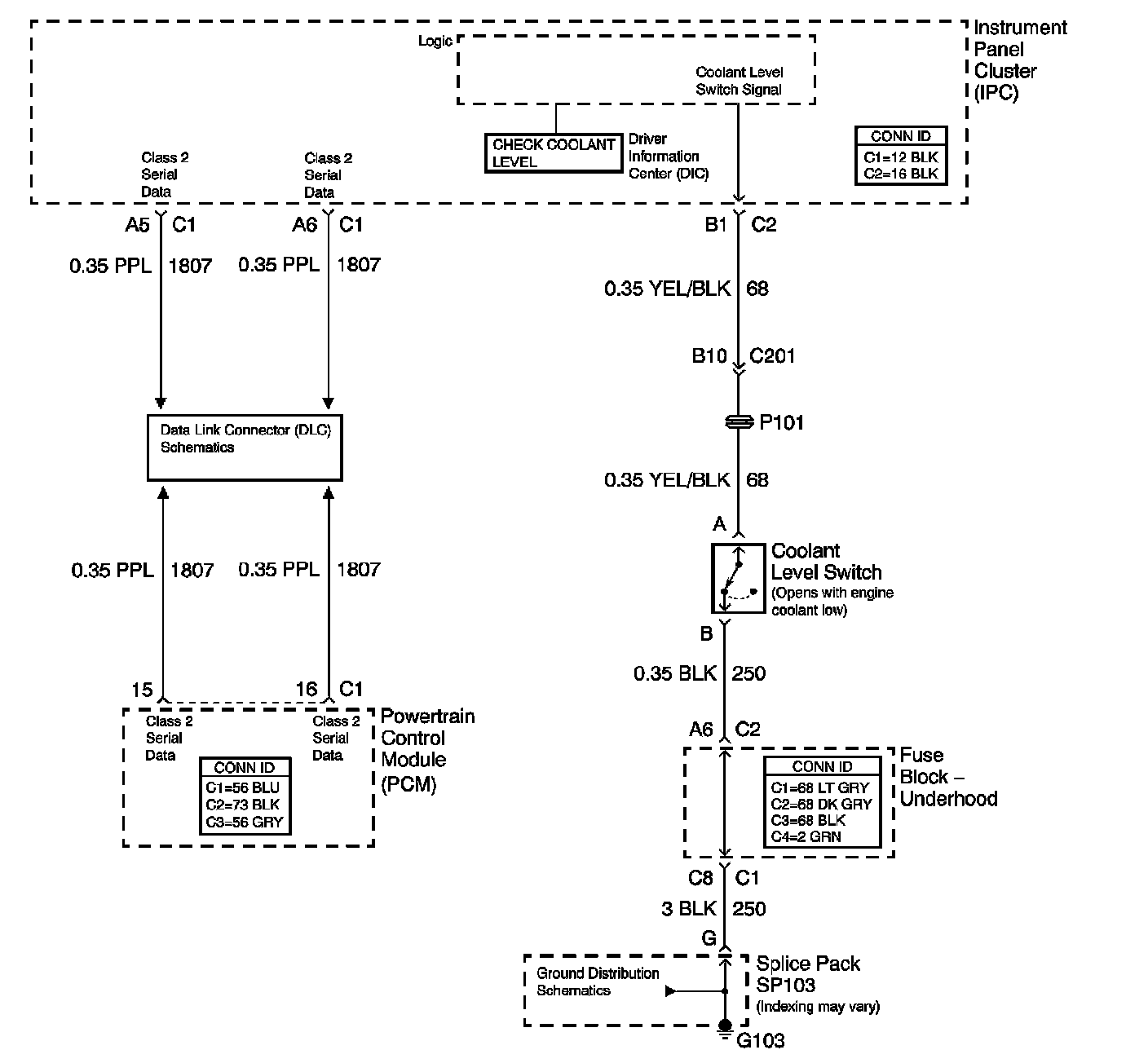

Coolant Level Switch - 4.6L:

Coolant Level Switch - 4.6L

Locations: The locations for the Connectors, Grounds, Splices and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
