Driver Information Center (DIC) - Switches Inoperative



DRIVER INFORMATION CENTER (DIC) SWITCH(ES) INOPERATIVE

TEST DESCRIPTION

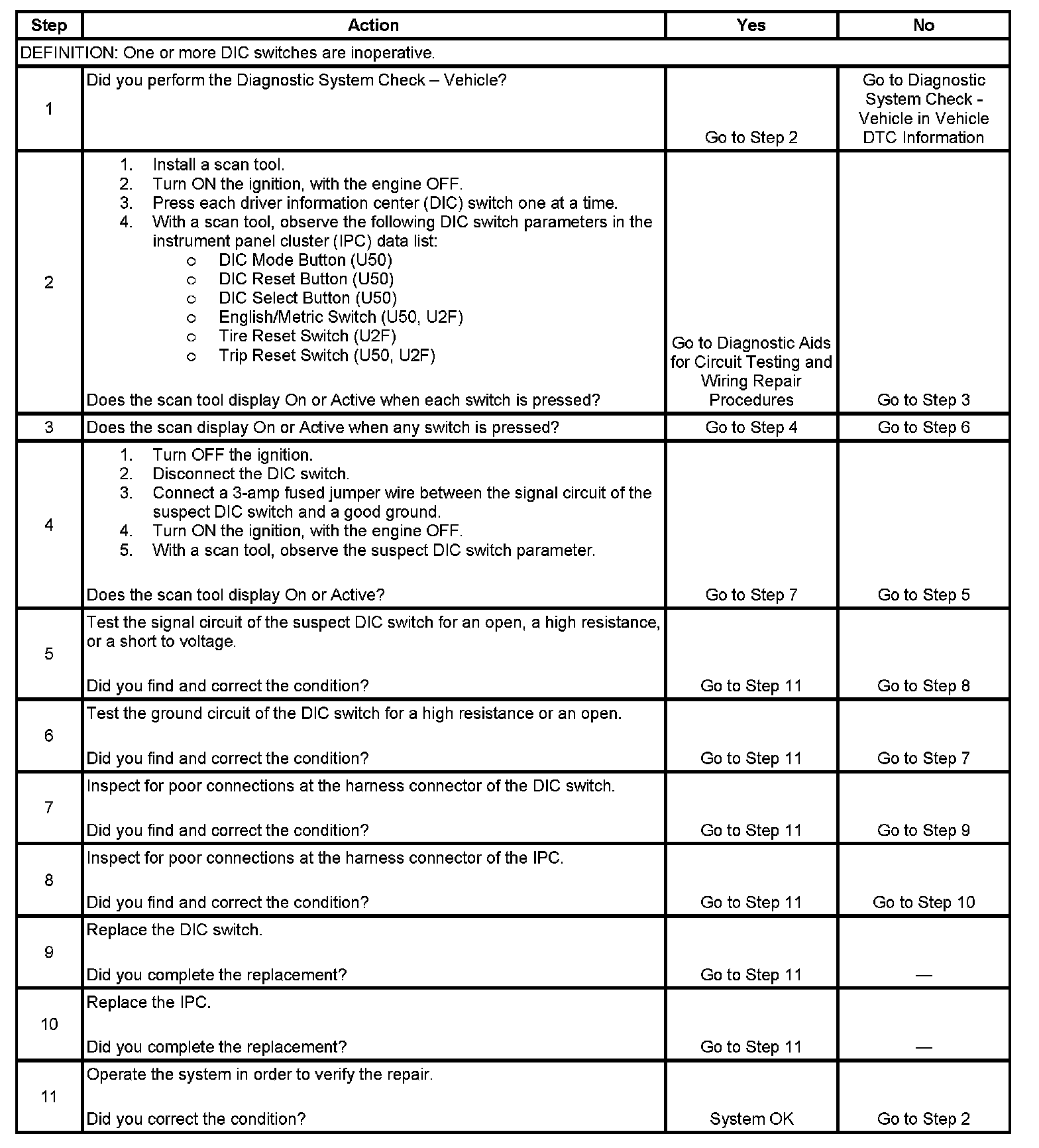

Steps 1-11:




The numbers below refer to the step numbers on the diagnostic table.
4. If the fuse in the jumper opens when you perform this test, the signal circuit is shorted to voltage.
