Speedometer and/or Odometer Inaccurate or Inoperative

SPEEDOMETER AND/OR ODOMETER INACCURATE OR INOPERATIVE

TEST DESCRIPTION

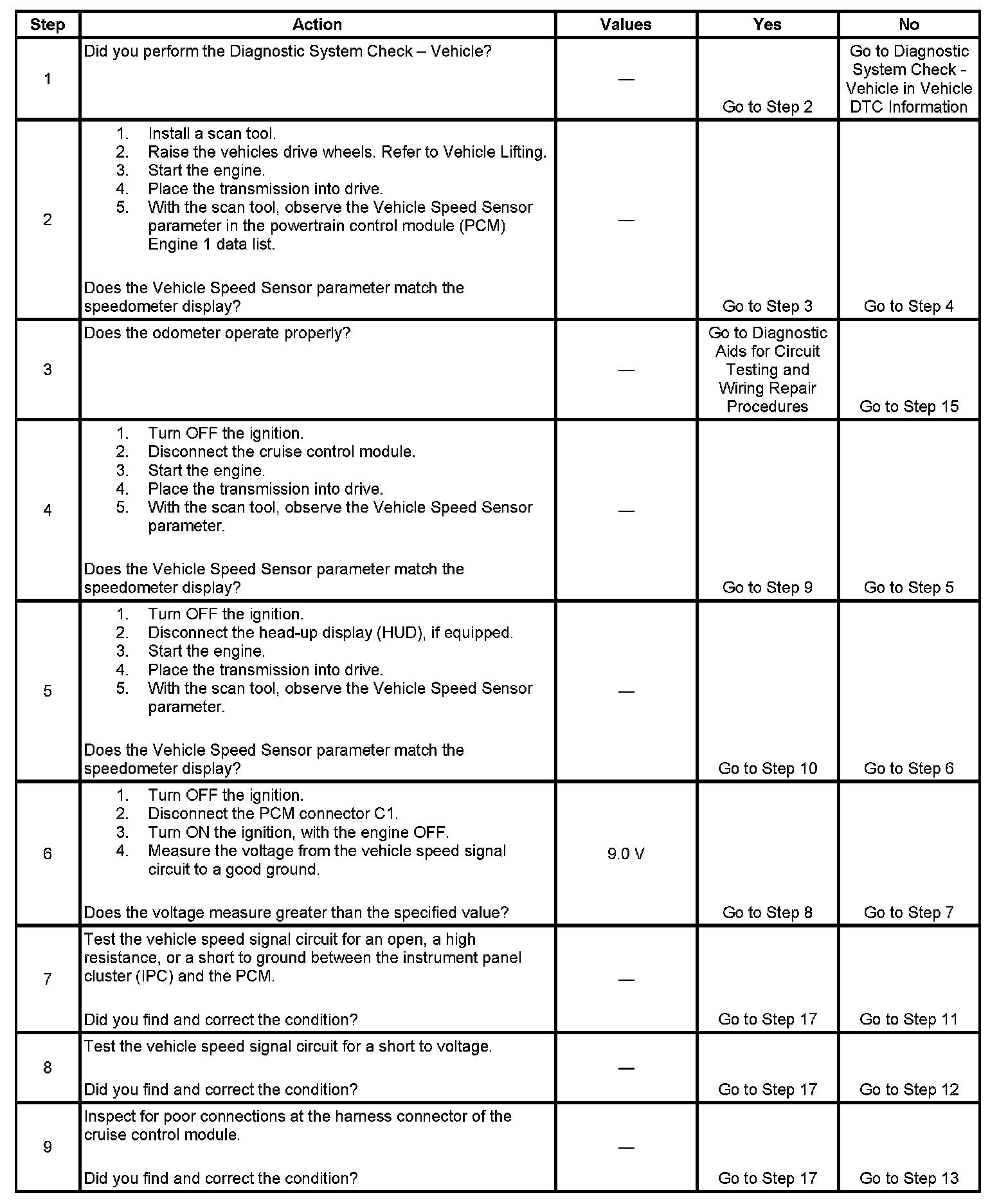

Steps 1-9:

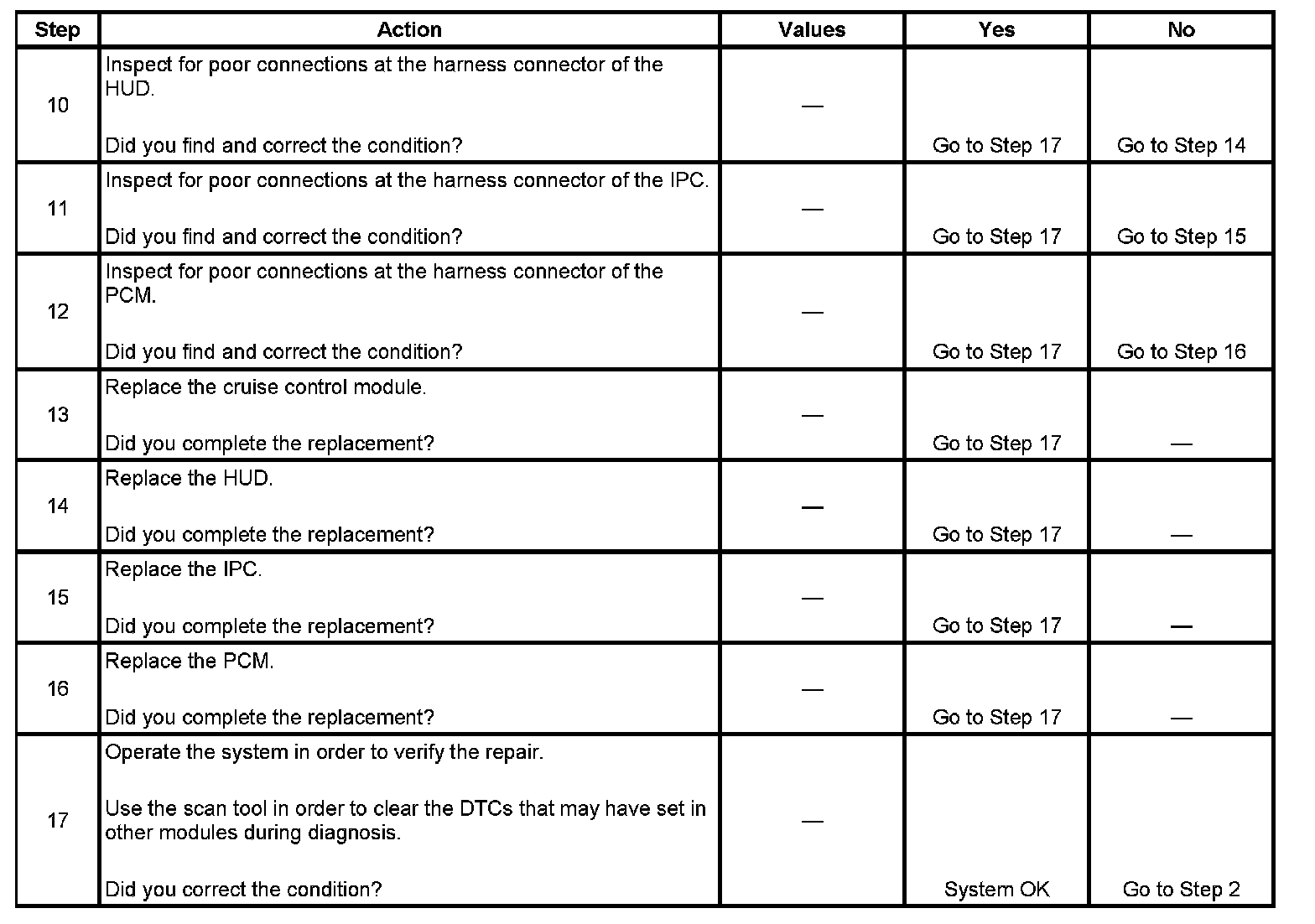

Steps 10-17:

The numbers below refer to the step numbers on the diagnostic table.
4. This step tests for a malfunctioning cruise control module that is interrupting the vehicle speed signal circuit.
5. This step tests for a malfunctioning head-up display (HUD) that is interrupting the vehicle speed signal circuit.
6. This step tests for the proper voltage from the instrument panel cluster (IPC).
