Ignition Lock Cylinder Lamp Inoperative

IGNITION LOCK CYLINDER LAMP INOPERATIVE

TEST DESCRIPTION

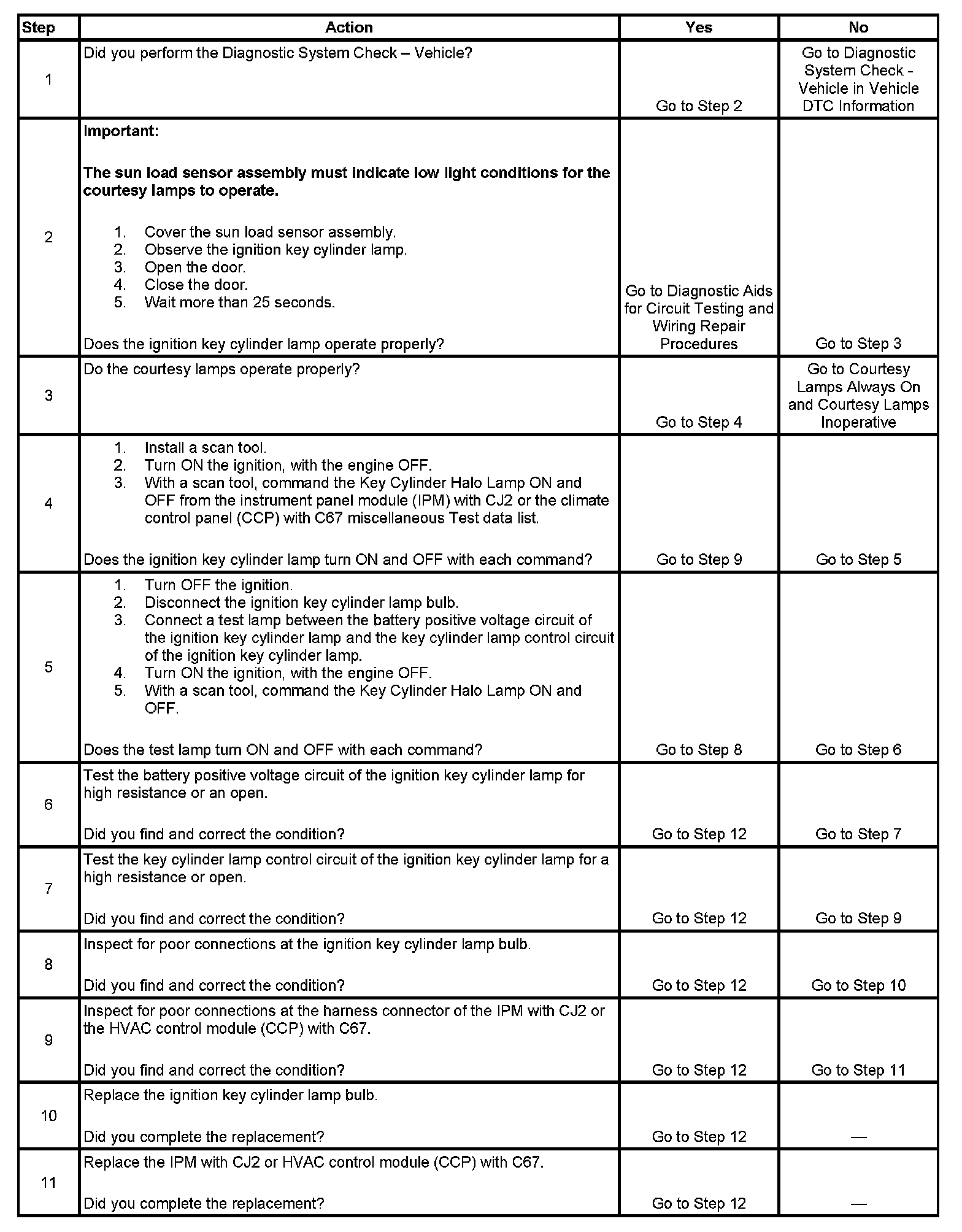

Steps 1-11:

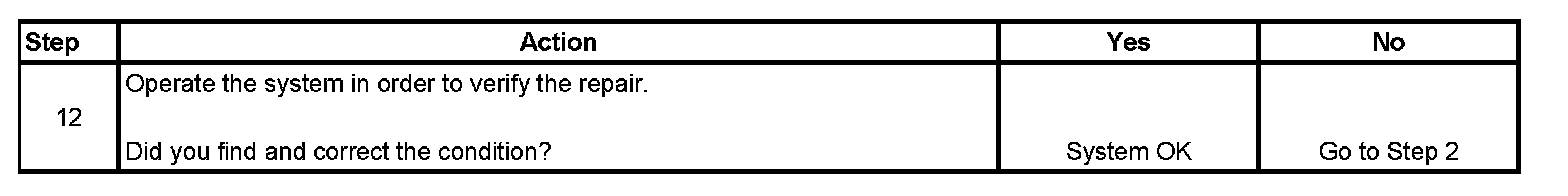

Step 12:

The numbers below refer to the step numbers on the diagnostic table.
4. Watch for the ignition key cylinder lamp operation. Command both the ON and OFF states. Repeat the commands as necessary.
