Upper Front of Engine

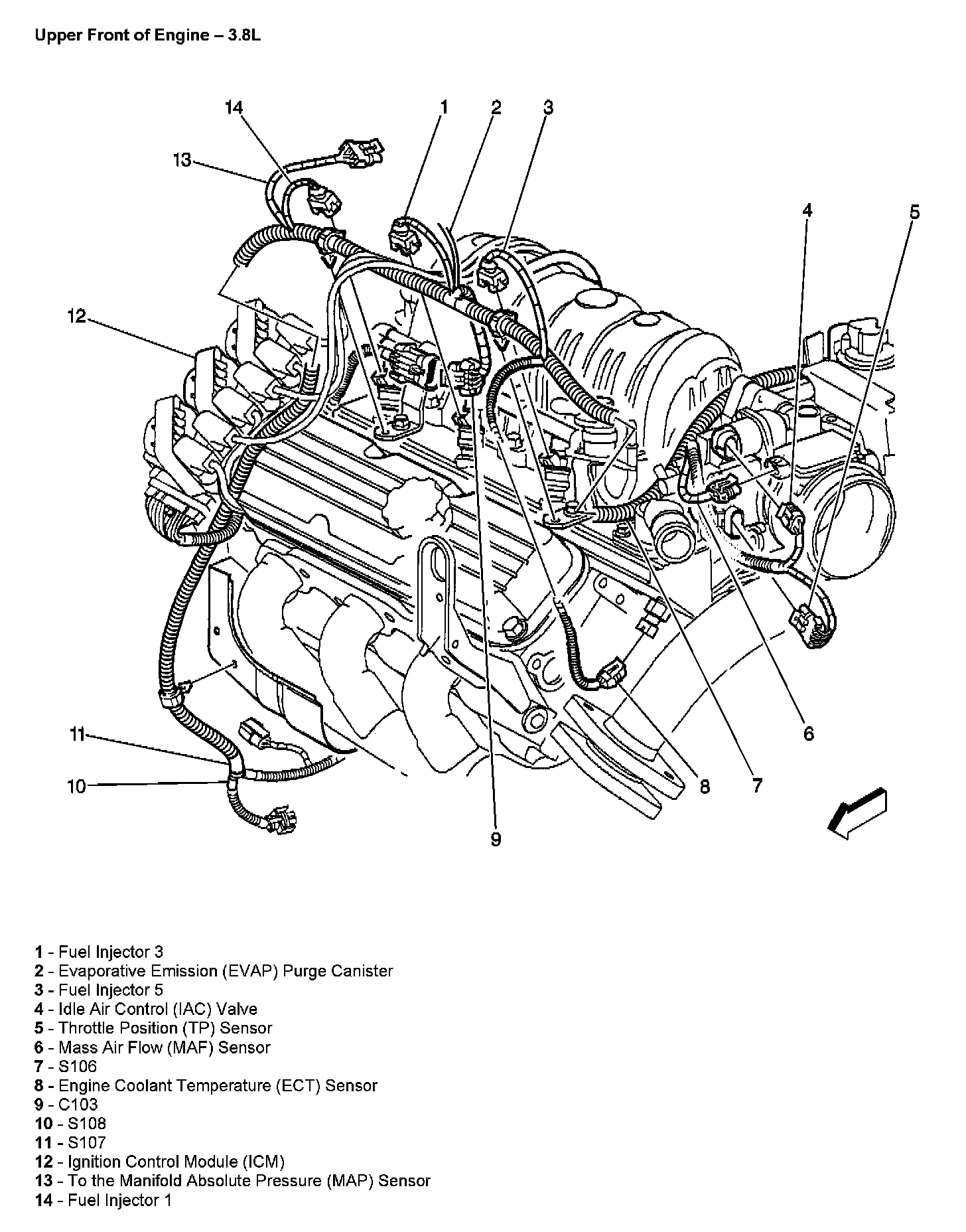

Upper Front Of Engine:

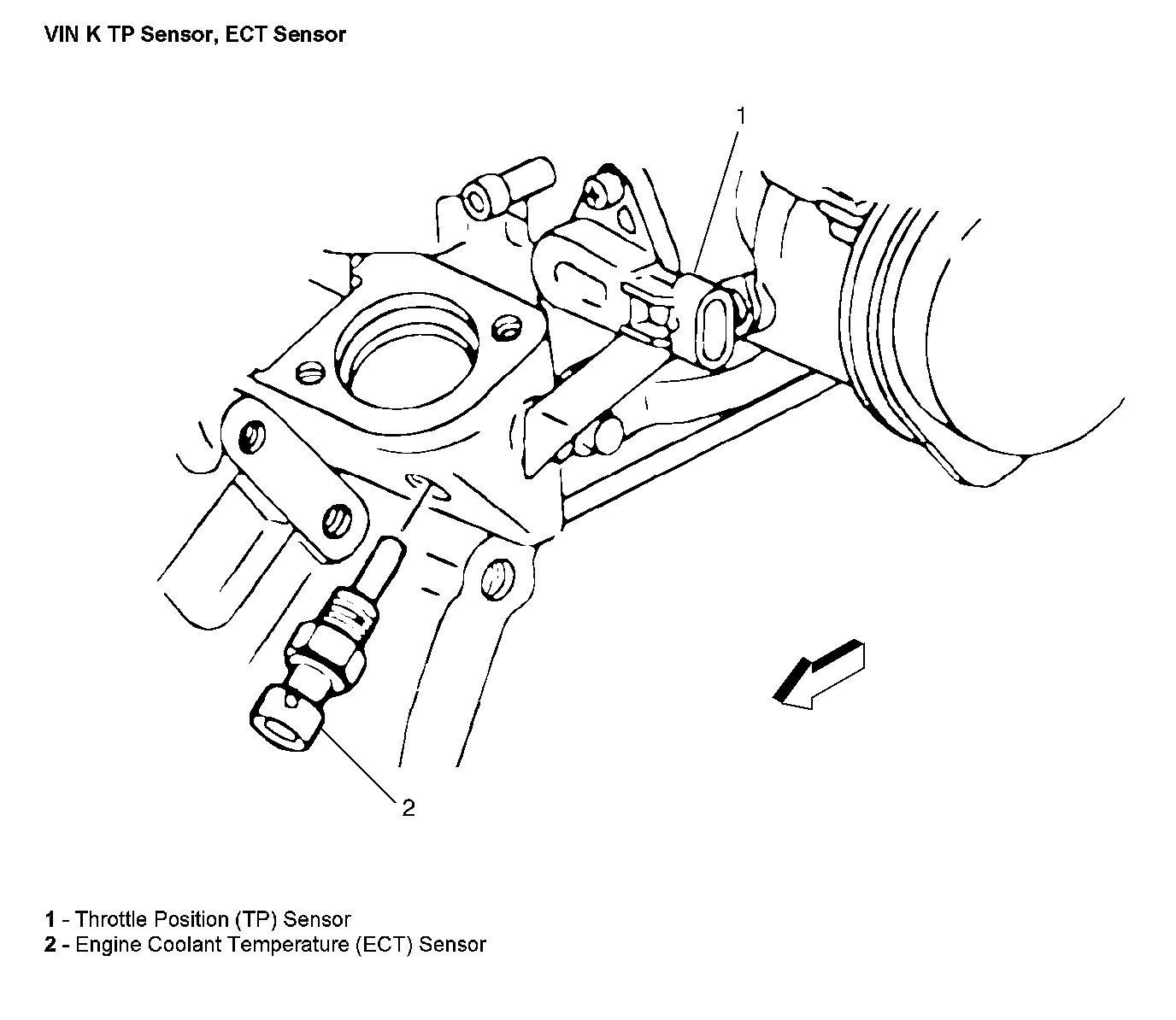

TP Sensor, ECT Sensor:



Fuel Pressure Regulator, IAC Valve, MAF Sensor, TP Sensor, IAT Sensor:



Front View:
