Home >> Pontiac >> 2005 >> Bonneville V6-3.8L VIN K >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Component Tests and General Diagnostics >> Charging System Test

Charging System Test

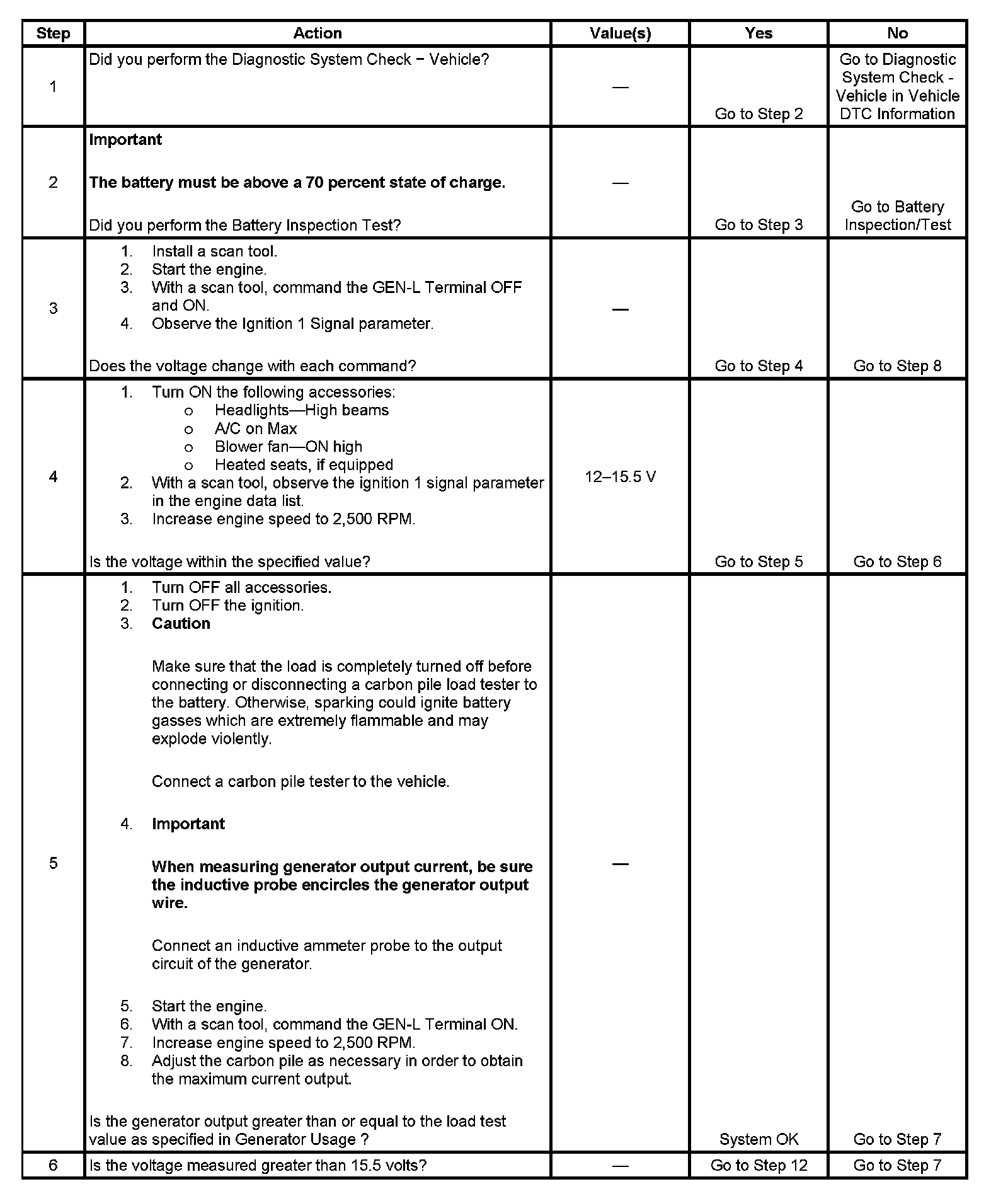

Steps 1-6:



Steps 7-18:



Step 19:
