Steering Gear: Locations

Steering Controls Component Views

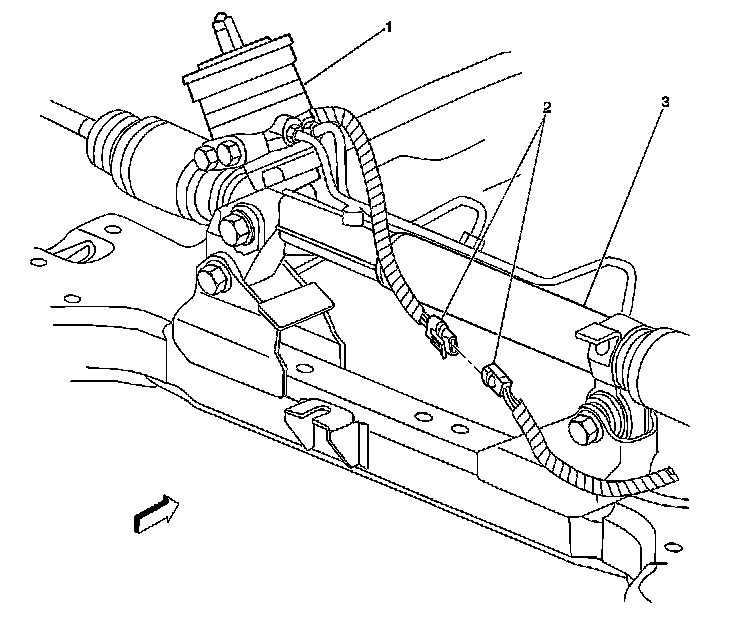

Engine Compartment, Near the Power Steering Gear





1 - Variable Effort Steering Actuator
2 - Variable Effort Steering Actuator Pigtail Connector
3 - Power Steering Gear
