Suspension Control ( Automatic - Electronic ): Locations

Automatic Level Control Suspension Component Views

Under Rear Of Vehicle





1 - Automatic Level Control (ALC) Harness
2 - Air Fitting
3 - Automatic Level Control (ALC) Compressor Assembly
4 - Air Tube Assembly

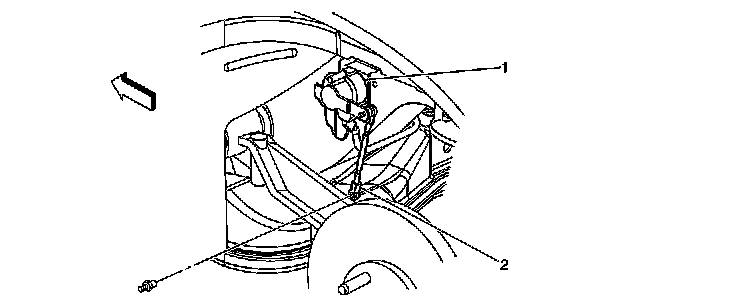

Under Left Rear of Vehicle





1 - Automatic Level Control (ALC) Sensor
2 - Suspension Position Sensor Link

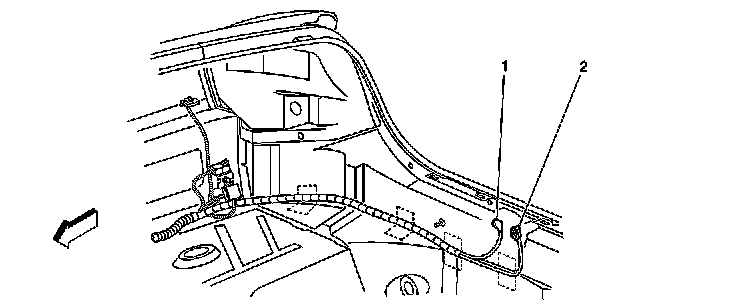

Inside Luggage Compartment





1 - Air Inflator Tube
2 - Accessory Inflator Switch Harness

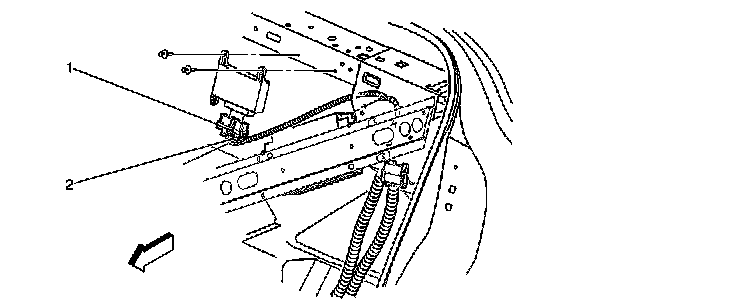

Behind Upper Rear Seat Cushion





1 - Rear Integration Module (RIM) C1
2 - Rear Integration Module (RIM) C2
